AKG Air-Cooled Aftercoolers

Humidity can be a problem in many air compression applications. The failure to remove moisture from the compressed air can damage your equipment, resulting in poor performance and more frequent repairs. In addition, the compression process significantly increases air temperature, which also contributes to unpredictable outcomes and poses a potential safety hazard within your facility.

Air compressor aftercoolers, float drains and moisture separators can remedy these challenges. They work by cooling the air and forcing the condensation of water. They also remove contaminants that cause inadequate air quality. You’ll experience cleaner, cooler air and improved performance in your air-operated processes.

The Titus Company is your headquarters for AKG air-cooled aftercoolers that deliver the reliable compressed air cooling required for various applications. These highly efficient machines are available with pneumatic or electric motors and can handle 250F to 350F compressed air at the inlet. They can also accommodate up to 250 psi of pressure.

Our Selection of AKG Air-Cooled Aftercoolers

AKG aftercoolers feature an advanced design that cools the compressed air to the closest approach temperature above the cooling media and ambient air temperatures. The result is exceptional heat exchanger performance and the maximum removal of moisture and humidity from the compressed air. The superior design and engineering enable them to withstand extreme heat, ensuring reliable results and fewer maintenance requirements, even in the most challenging work environments.

The Titus Company offers several AKG air-cooled aftercooler options to meet the needs of companies in a wide range of industries. We also provide complete service for every aftercooler we sell.

AKG Belt Guard Series

As the name implies, Belt Guard air-cooled aftercoolers mount directly to the belt guard of the compressor. The belt’s pulley includes fins that force air to flow over the aftercooler, which promotes heat transfer. Another essential pulley function helps keep the air at the correct operating temperature by causing it to travel over the compressor.

The AKG Belt Guard series features an innovative aluminum plate and bar design that is lightweight and solid and offers excellent corrosion resistance. It also provides maximum performance in low pressure-drop applications. The compact construction allows you to mount the cooler onto the belt guard with ease.

This air-cooled aftercooler comes in three model options and is compatible with piston, rotary screw and centrifugal air compressors. You can also use it with vacuum systems and blower lube oil coolers. The maximum operating temperature is 400 degrees Fahrenheit, while the maximum operating pressure is 250 psig.

CC Series Compressed Air Aftercoolers

This complete aftercooler package is compatible with most piston and rotary screw air compressors. They feature an innovative bar and plate construction that is more compact than competing models. The efficient TEFC electric motor (models with air motors are also available) conserves energy and lowers your operating costs. Baked powder paint ensures reliable, long-lasting performance in various weather conditions. These aftercoolers also have an aluminum core that provides excellent corrosion resistance as well as propylene fan blades and zinc-plated fan guard.

CC Series compressed air aftercoolers come in six models with capacities up to 1,600 scfm. They have a maximum operating temperature of 150 degrees Fahrenheit and a maximum operating pressure of 250 psig. In addition to rotary screw and piston compressor applications, they’re compatible with centrifugal air compressors, vacuum systems and blower lube oil coolers.

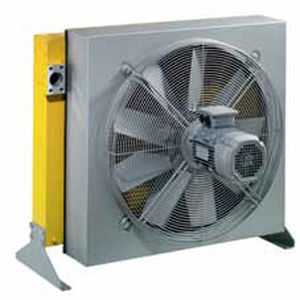

AOC Series Aftercoolers/Oil Coolers

This air-cooled combination aftercooler/oil cooler series from AKG consists of efficient, multifunctional units that are valuable for various applications. The innovative design features side-by-side cooling units that can cool compressed air and line oil. They’re also ideal for converting water-cooled to air-cooled compressors. In addition, they’re an excellent choice when you need to mount the cooler remotely from the air compressor.

The AOC Series comes as a complete package that includes the aftercooler/oil cooler, single-phase aluminum cooler motor (available in AC and hydraulic options) that ensures efficient operation and resists corrosion, and guards and mounting brackets. The remote mount feature is ideal for installing the unit in a cleaner, cooler location or reducing noise.

Other features include:

  • Powder painted steel shroud
  • Propylene fan blades
  • Zinc-plated steel fan guard
  • Powder painted steel mounting brackets
  • Maximum operating temperature of 250 degrees Fahrenheit
  • Maximum operating pressure of 250 psig
  • Power output capacity of 5 to 350 hp
  • 500 to 600 cooler rating for air compressors
  • 1,750 rpm fan speed

The AOC Series aftercoolers/oil coolers comes in three dozen models to meet the needs of any operating environment. All are competitively priced to fit your company’s budget. Typical applications include rotary screw, piston and centrifugal air compressors, as well as blower lube oil coolers, vacuum systems and compressed air cooling.

Why Choose The Titus Company for AKG Air-Cooled Aftercoolers?

The Titus Company has been providing reliable, affordable compressed air solutions and much more since 1986. Our conveniently located headquarters in Morgantown, PA enables us to provide prompt, efficient service to companies throughout Eastern Pennsylvania, Delaware, New Jersey and throughout the region. Over the years, we’ve partnered with Fortune 500 companies and small-to-medium local businesses to deliver solutions that help them overcome the most daunting manufacturing challenges.

At The Titus Company, delivering exceptional customer service is a top priority. We support all the equipment we sell with a broad range of services:

  • Installation: We’ll install your new AKG air-cooled aftercooler properly and ensure it meets the manufacturer’s standards. We’ll also show you how to operate it correctly and safely.
  • Maintenance: Count on us to perform timely preventative maintenance to keep your equipment in peak operating condition and minimize the risk of a breakdown.
  • Repairs: If you ever have problems with any aspect or component of your air compressor system, our highly trained technicians will remedy the issue quickly to reduce unproductive downtime.

Request a Free Quote Today

To learn more about our AKG air-cooled aftercoolers and receive a no-obligation quote, feel free to give The Titus Company a call at 610.913.9100 or contact us online today.

Request Information

Technical Specifications

Air inletOperating pressureAmbient airAir velocityMax pressure drop
250 F 100 PSIG100 F500 fpm3 PSI or less

Model number specifications

Model C-1835BGModel C-3560BGModel C-70100BG
Max SCFM of 35Max SCFM of 60Max SCFM of 100
Model rating approach temperature Model rating approach temperature Model rating approach temperature
5 F for 18 SCFM and 15 F for 35 SCFM10 F for 35 SCFM and 25 F for 60 SCFM.13 F for 70 SCFM and 25 F for 100 SCFM.
RatingsFeaturesMaterial:
Max pressure rating: 250 PSIDirect mountAluminum
Max operating temperature: 400 FCompact bar-and-plate design
Competitive pricing
Deliveries from stock
Model NumberABCDEFGH
NPT
J
C-1835BG17.6814.172.7611.8115.944.295.551.0018.94
C-3560BG17.6814.173.9411.8115.945.516.771.0018.94
C-70100BG19.6516.146.313.7817.917.919.171.0020.91

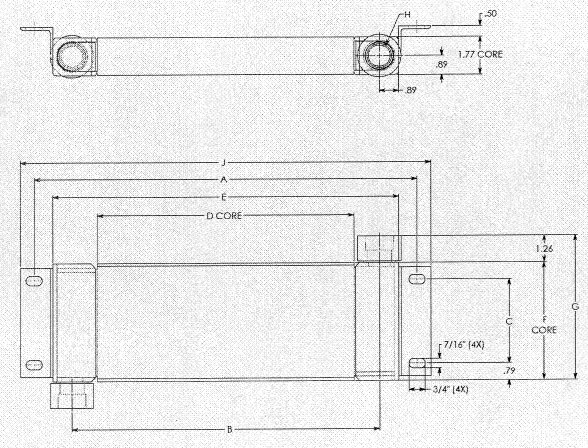

Technical Drawings

Product Catalogs & Spec Sheet Downloads

Manufacturer Link

Technical Specifications

Sizing Notes, Recommendations Are Based On The Following:

  • Heat Removal: Aftercooler = Compressor horsepower x 1.15 (motor service factor) x .17 (this assumes 17% of input horsepower is rejected to heat)
  • 15°F Approach Temperature: Compressor air outlet temperature – ambient air temperature
  • Temperatures: Ambient Air Temperature + 15° F = Compressed Air Outlet Temperature
  • Flows: Compressor Horsepower x 4.5 = SCFM Air Flow
    All flow rates are based on less than a 4 PSI pressure drop @ 100 PSI operating & 100° F ambient and 50% relative humidity

Find Your CC Series Model

Rotary Compressors

Air Compressor HorsepowerInternal Airflow Maximum CFMRecommended CC Series Model Number
20HP
113CC100
25-40 HP245CC200
50-75 HP539CC450
100-125 HP785CC600
225-350 HP1569CC1000
225-350 HP2300CC1600
400-500 HP3016CC2000
550-700 HP4316CC2500
750-1000 HP4800CC3500

Piston Compressors

Air Compressor HorsepowerInternal Airflow Maximum CFMRecommended CC Series Model Number
20HP
83CC100
25-30 HP181CC200
40-70 HP432CC450
75-100 HP638CC600
125-200 HP1256CC1000
225-300 HP2133CC1600
350-400 HP2400CC2000
500-600 HP3458CC2500
700-850 HP4800CC3500
FeaturesRatingsMaterials
Advanced Technology DesignsMaximum Working Pressure – 250 PSICooler – Alumium
Up to 60% smaller than Conventional Fin
and Tube Designs
Maximum Working Temperature – 250°FShroud – Powder Painted Steel
Rugged Bar & Plate DesignFan Guard – Zinc Plated Steel
Reduced Air Side FoulingFan Blade – Polypropylene Blades
Competitive PricesAluminum Hub
Shipments Available From StockMounting Brackets – Powder Painted Steel
Model SizeABC

Approx.
DEFGH
(NPT)
JKLMNAprox. NETWeights Shipping
CC10012.6415.9414.7210.862.520.751.181.0014.653.943.508.19M8x10 Balt3040
CC20016.3019.8815.5914.532.520.751.771.5018.663.943.508.19M8x10 Balt5060
CC45021.0026.3817.7518.813.151.001.772.0025.194.924.5310.98M10x20 Balt95137
CC60023.1930.3118.7421.023.151.001.772.0029.134.924.5310.98M10x20 Balt125163
CC100027.7237.0022.6025.234.331.851.772.5037.805.917.8716.00M12x20 Balt195240
CC160035.9040.9424.7630.834.331.851.773.0037.805.917.8716.00M12x20 Balt296350
CC200037.4442.9129.8430.5510.912.081.774.0043.625.397.8715.47M12x20 Balt320380
CC250044.2548.8230.2834.2511.571.571.774.0049.295.397.8715.47M12x20 Balt440505
CC350057.8752.7633.8243.9817.563.3524.00*50.557.8010.0020.003/4x1 1/2 Balt550645

Electric Motor Data

Model SizeHP RPMMotor FrameSingle Phase
Voltage
Single Phase

Hz
Single Phase

Full Load Amps 230 V
Three Phase

Votage
Three Phase

Hz
Three Phase

Full Load Amps 230 V
CC1001/3

3450
IEC 63115/230602.6208-230/460

190/380
60

50
1.1
CC2001/3

3450
IEC 71115/230603.5208-230/460

190/380
60

50
1.6
CC4501/2

1725
NEMA 56C115/230/460604.0208-230/46060*2.0
CC6001

1725
NEMA 56C115/230/460606.4208-230/46060*3.8
CC10002

1725
NEMA 56C115/230609.2208-230/46060*6.2
CC16005

1725
NEMA 184TC2306023208-230/46060*13.2
CC20007.5

1725
NEMA 213TCConsult FactoryConsult FactoryConsult Factory208-230/46060*19.6
CC25007.5

1725
NEMA 213TCConsult FactoryConsult FactoryConsult Factory208-230/46060*19.6
CC350010

1725
NEMA 213TCConsult FactoryConsult FactoryConsult Factory208-230/46060*26.0

Air Motor Data

Model NumberAir Pressure To Motor (PSI)Motor Air Consumption (CFM)Air Motor Connection SizeFan RPM
CC10030101/4 NPT3450
CC20060171/4 NPT3450
CC45040251/4 NPT1725
CC60040251/4 NPT1725
CC100050701/2 NPT1725
CC1600601501 1/4 NPT1725
CC2000802001 1/4 NPT1725
CC2500802001 1/4 NPT1725
CC35001002401 1/4 NPT1725

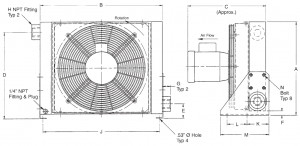

CC Series Technical Drawings
