Atlas Copco Modular Piping Systems
AIRnet, compressed air piping system
AIRnet is Atlas Copco‘s piping solution that guarantees operational excellence for compressed air, vacuum, nitrogen and other inert gas applications. Available in aluminium and stainless steel.
For any existing piping network
The piping system can be connected to any existing network and it can be modified easily to meet any changes on the industrial floor. All AIRnet components are easily adjustable and reusable to facilitate future network extensions.

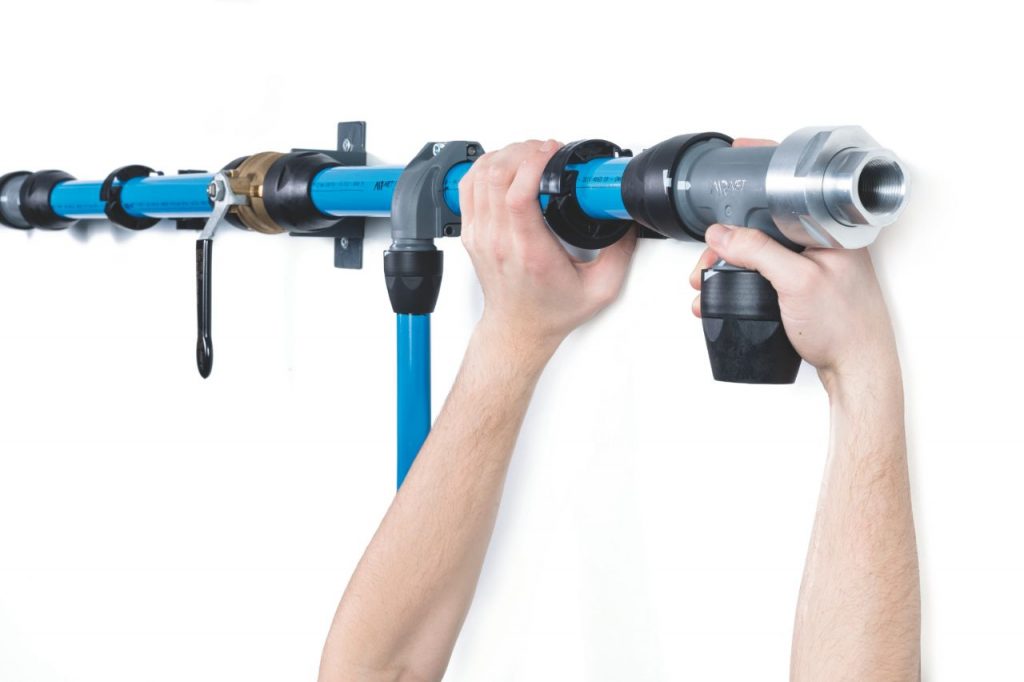

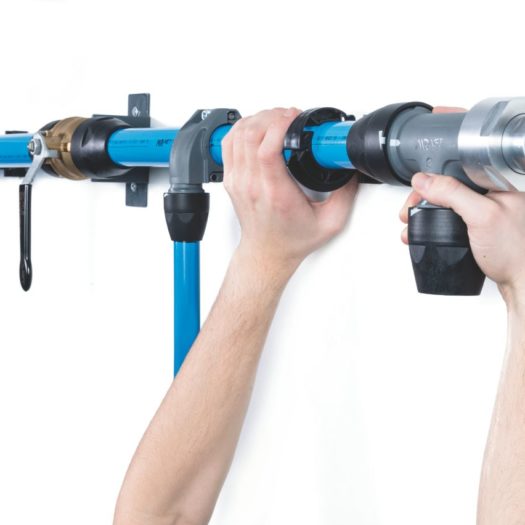

AIRnet Aluminium is ISO 8573-1 certified
The purity of the compressed air plays a very important role in determining the quality of the end product. ISO 8573-1: 2010 specifies the purity of the compressed air with respect to particles, water and oil, independent of the location in the compressed air system at which the air is measured.

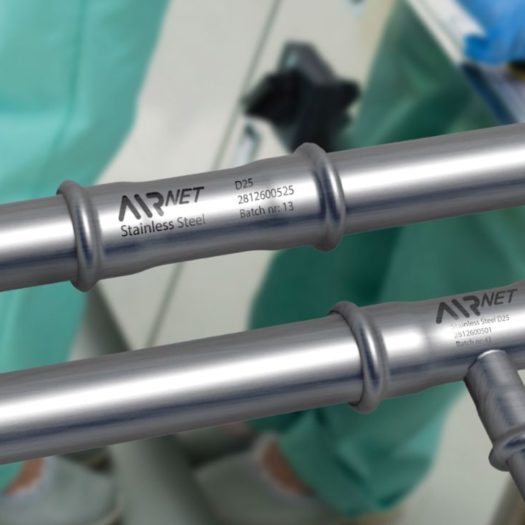

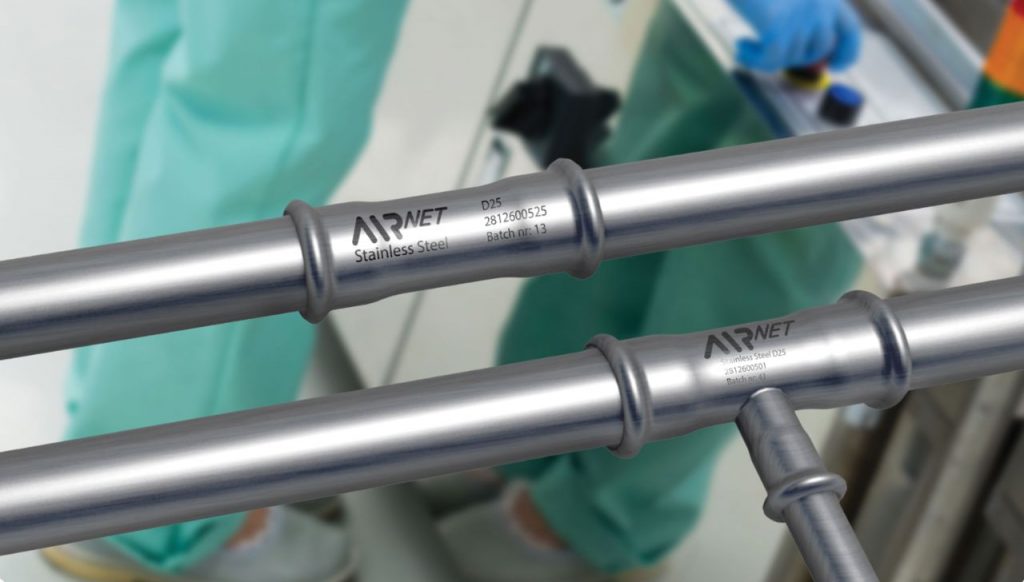

AIRnet Stainless Steel
AIRnet Stainless Steel piping system ensures 100% oil free air delivery from the generation to the point of use, in compliance with the highest quality standards.
– No corrosion, leak resistant and 10 year guarantee
– Press fit system ensures fast installation
– No welding, no threading: just push & press
– Silicone free system
– FKM Seal
– Can be used for clean room applications (316 L)
AIRnet Stainless Steel Technical Specifications
|Product Range||Applications||Material||Safety Factor||Working Pressure||Working Temperature||Vacuum Level||Dewpoint||Treatment|
|SS304L||D15 (½”), D28 (1”), D35 (1 ¼”), D42 (1 ½”), D54 (2”), D76 (2 ¾”), D89 (3 ½”), D108 (4”)||Compressed Air, Nitrogen, Vacuum||Stainless Steel||4, Burst pressure > 64 Bar (> 928 PSI)||16 Bar (232 PSI)||-20°C to 120°C (- 4°F to 248° F)||20 mbar (0.29 PSI) abs||Lowest allowable pressure dewpoint is -70°C (-94°F)||Annealing|
|SS316L||D15 (½”), D28 (1”), D42 (1 ½”)||Compressed Air, Nitrogen, Vacuum||Stainless Steel||4, Burst pressure > 64 Bar (> 928 PSI)||16 Bar (232 PSI)||-20°C to 120°C (- 4°F to 248° F)||20 mbar (0.29 PSI) abs||Lowest allowable pressure dewpoint is -70°C (-94°F)||Annealing|
