BEKO Condensate Drains
The production of compressed air results in the formation of condensate, which consists of oil that contains dirt particles. These contaminants can infiltrate the entire compressed air system, causing damage to the equipment and increasing operating costs. A high-quality condensate drain alleviates this issue by expelling condensate from the system.
A BEKOMAT condensate drain from BEKO removes contaminated condensate from a compressed air system quickly and efficiently. With more than 3 million installations around the world, these electronically controlled drains are a popular choice for companies in a wide range of industries. You’ll find a BEKOMAT product for every compressor type, pressure and performance requirement, and operating environment.
Features and Benefits of BEKOMAT Condensate Drains
The BEKOMAT Series offers a wide variety of features that ensure effective condensate drainage and improved compressed air quality. All products provide true zero air loss, meaning they remove moisture and contaminants without allowing any compressed air to escape. They’re also reliable and easy to maintain, which saves time and minimizes your long-term ownership costs.
These “smart” sensor-controlled drains clear blockages and debris automatically, reducing the burden on your workforce. An integrated alarm provides a visual drain status and remote monitoring capabilities. Fluid Aire Dynamics offers several BEKOMAT condensate drain options to customers in Eastern Pennsylvania, New Jersey, Delaware and beyond.

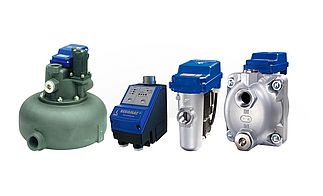

Standard Series
These amount-adjusted condensate drainage systems feature an intuitive capacitive sensor designed to help eliminate compressed air loss and reduce energy demand. The combination of time and energy savings delivers a fast return on investment. In many cases, a Standard Series model pays for itself in six months or less, much quicker than drains equipped with time-operated valves. The significant cost reduction will have a positive impact on your company’s bottom line.
PN and E Series
PN high-pressure condensate drains have hard-coated bodies that deliver rugged reliability in the most challenging operating conditions. The E Series includes full stainless steel bodies to accommodate large-volume condensate flows. Either one is an excellent choice for compressed air applications that generate highly aggressive condensate.
Both versions feature pressure ratings of up to 915 psig, an operating temperature range of 33 to 140 degrees Fahrenheit and a compressor flow rate of 280 to 50,000 scfm. Choose from three model options for each series.
CV, NLV and V Series
These BEKOMAT zero air-loss condensate drains are ideal for vacuum systems or centrifugal compressors. The CV Series includes a specially engineered check valve and control board, while the NLV models deploy a no-load valve for ambient-drainage conditions through the various stages of multi-stage compressors.
These BEKO condensate drain series have a maximum operating pressure range from 0 to 360 psig, minimum/maximum operating temperature of 33 to 140 degrees Fahrenheit and compressor flow rate of 2,000 to 50,000 scfm.

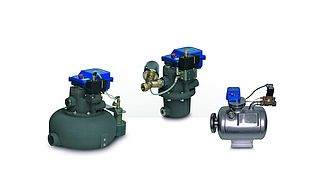

Specialty Series
BEKOMAT LA/LP drains help reduce the risk of damage from condensate accumulation, water hammers and other issues. They offer an effective condensate drainage solution for pressure-free or vacuum systems of up to 1.8 bar. Models are also available for applications involving hazardous work areas that require the use of methane gas, diesel fuel, propane, compressor oil and other combustible materials. The stainless steel variants work well when draining aggressive condensates.
These units feature an operating pressure range of 12 to 232 psig and a maximum temperature of 140 degrees Fahrenheit. Their compressor flow rate is 4,500 to over 50,000 scfm. Use the Specialty Series models in potentially explosive atmospheres or applications that require level sensing for moisture indication.
Why Partner With Fluid Aire Dynamics for BEKO Condensate Drains?
Since our founding in 1986, Fluid Aire Dynamics has provided high-quality, reliable compressed air solutions to companies across a wide range of industries. We’re the preferred choice of plant managers, maintenance supervisors, energy managers, engineers and business owners in smaller firms.
We support all the compressed air equipment we sell with superior customer service. We can conduct a thorough system analysis to determine your company’s requirements. We’ll also provide expert installation and around-the-clock monitoring to ensure reliable performance. We’re available to handle all maintenance and repair work, including 24/7 emergency repairs when the need arises.
Contact Us Today to Request a Quote
For more information about BEKOMAT condensate drain products and the benefits they can offer your business, give Fluid Aire Dynamics a call at 610.913.9100 today. You can also submit our online request form to receive a free quote for condensate drainage solutions.
Bekomat Series Technical Specifications
Series | Standard Minimum / Maximum Operating Pressure | Standard Minimum / Maximum Operating Temperature | Compressor Flow Rate | Typical Application Areas | Diaphragm Material | Maintenance Part Type | Available Options |
---|---|---|---|---|---|---|---|
Standard Series | 12 - 232 psig | 33 - 140 °F | 100 - 50,000 scfm | At the compressor, dryer, and filter | Viton® | Service Unit | Heater, Insulation sleeve or shell, Cover3More extended warranty |
PN and E Series | 12 - 912 psig | 33 - 140 °F | 280 - 50,000 scfm | High pressure systems or with highly aggressive condensate | Viton® | Wearing Parts Kit | Heater, Insulation sleeve or shell, Cover3More extended warranty |
CV, NLV and V Series | 0-360 psig | 33 - 140 °F | 2,000 - 50,000 scfm | For use with centrifugal compressors or vacuum systems | Viton® | Wearing Parts Kit | Heater, Cover3More extended warranty |
Specialty Series | 12 - 232 psig | 33 - 140 °F | 4,500 - 50,000+ scfm | Explosive atmospheres, moisture indication, and level sensing | Viton® | Wearing Parts Kit | 12 Vdc intrinsicly safe power supply, Isolation amplifier, Heater, Cover3More extended warranty |
Bekomat Series Drain Functionality Video
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
Standard Series Technical Specifications
Model | Connection (NPT) | Min. / Max. Pressure (psig) | Compressor Flow Rate (scfm) | Dryer Flow Rate (scfm) | Filter Flow Rate (scfm) | Material |
---|---|---|---|---|---|---|
31 | 1 x 1/2" | 12 / 232 | 100 | 200 | 1000 | Aluminum housing - without dry contact |
32 | 1 x 1/2" | 12 / 232 | 225 | 450 | 2250 | Aluminum housing |
33 | 3 x 1/2" | 12 / 232 | 500 | 1000 | 5000 | Aluminum housing |
33 CO | 3 x 1/2" | 12 / 232 | 500 | 1000 | 5000 | Aluminum housing + hard coating |
13 | 2 x 1/2" | 12 / 232 | 1300 | 2600 | 13000 | Aluminum housing |
13 CO | 2 x 1/2" | 12 / 232 | 1300 | 2600 | 13000 | Aluminum housing + hard coating |
14 | 3 x 3/4" | 12 / 232 | 5400 | 10800 | 54000 | Aluminum housing |
14 CO | 3 x 3/4" | 12 / 232 | 5400 | 10800 | 54000 | Aluminum housing + hard coating |
16 CO | 2 x 3/4" / 1 x 1" | 12 / 232 | 50000 | 100000 | 500000 | Aluminum housing + hard coating |
PN and E Series Technical Specifications
Model | Connection (NPT) | Min. / Max. Pressure (psig) | Compressor Flow Rate (scfm) | Dryer Flow Rate (scfm) | Filter Flow Rate (scfm) | Material |
---|---|---|---|---|---|---|
12 CO PN 63 | 1 x 1/2" | 12 / 912 | 280 | 560 | 2800 | Aluminum housing + hard coating & high pressure |
13 CO PN 50 | 2 x 1/2" | 12 / 725 | 1300 | 2600 | 13000 | Aluminum housing + hard coating & high pressure |
14 CO PN 25 | 3 x 3/4" | 12 / 360 | 5400 | 10800 | 54000 | Aluminum housing + hard coating & high pressure |
3 E 25 | 3 x 3/4" | 12 / 360 | 4500 | 9000 | 45000 | Stainless Steel housing + high pressure |
3 E 63 | 3 x 3/4" | 12 / 912 | 4500 | 9000 | 45000 | Stainless Steel housing + high pressure |
6 E 25 | 2 x 3/4" / 1 x 1" | 12 / 360 | 50000 | 100000 | 500000 | Stainless Steel housing + high pressure |
CV, NLV and V Series Technical Specifications
Model | Connection (NPT) | Min. / Max. Pressure (psig) | Compressor Flow Rate (scfm) | Dryer Flow Rate (scfm) | Filter Flow Rate (scfm) | Material |
---|---|---|---|---|---|---|
13 CV | 2 x 1/2" | 12 / 232 | 2000 | 4000 | 20000 | Aluminum housing + check-valve set |
14 CV | 3 x 3/4" | 12 / 232 | 8000 | 16000 | 80000 | Aluminum housing + check-valve set |
16 CO CV | 2 x 3/4" / 1 x 1" | 12 / 232 | 50000 | 100000 | 500000 | Aluminum housing + check-valve set & hard coating |
3 CO NLV | 3 x 3/4" | 0 / 360 | 6000 | 12000 | 60000 | Aluminum housing + no load valve & hard coating |
6 CO NLV | 2 x 3/4" / 1 x 1" | 0 / 232 | 50000 | 100000 | 500000 | Aluminum housing + no load valve & hard coating |
3 CO V | 3 x 3/4" | 1.45 /26 | 4500 | 9000 | 45000 | Aluminum housing + hard coating |
3EV | 3 x 3/4" | 1.45 /26 | 4500 | 9000 | 45000 | Stainless steel |
6 CO V | 3 x 3/4" | 1.45 /26 | 50000 | 100000 | 500000 | Aluminum housing + hard coating |
6EV | 3 x 3/4" | 1.45 /26 | 50000 | 100000 | 500000 | Stainless steel |
Specialty Series Technical Specifications
Model | Connection (NPT) | Min. / Max. Pressure (psig) | Compressor Flow Rate (scfm) | Dryer Flow Rate (scfm) | Filter Flow Rate (scfm) | Material |
---|---|---|---|---|---|---|
3 CO EX | 3 x 3/4" | 12 / 232 | 4500 | 9000 | 45000 | Aluminum housing + hard coating |
3 E EX | 3 x 3/4" | 12 / 232 | 4500 | 9000 | 45000 | Stainless Steel housing |
6 CO EX | 2 x 3/4" / 1 x 1" | 12 / 232 | 50000 | 100000 | 500000 | Aluminum housing + hard coating |
6 E EX | 2 x 3/4" / 1 x 1" | 12 / 232 | 50000 | 100000 | 500000 | Stainless Steel housing |
