Drain-All Drains

For more than 20 years, Drain-All, Inc. has been designing and manufacturing robust industrial drain valves that remove condensate from compressed air systems quickly and efficiently. Drain-All products provide energy savings by conserving compressed air. They also help prolong the equipment’s lifespan by eliminating harmful contaminants.

The Titus Company carries Drain-All’s extensive line of zero-loss condensate traps that are ideal for use with control devices. In addition to energy savings, they improve performance in various compressed air and compressed gas system applications. These automatic liquid drain valves work on-demand without timers. They also operate pneumatically — you won’t need to connect them to an external power source.

In addition to selling a wide variety of Drain-All equipment, our Morgantown, PA-based company provides comprehensive service and support to maximize your experience and lower your long-term operating and ownership costs.

Condensate Handler®

The Drain-All Condensate Handler has become the industry standard due to its efficient design. It is compatible with high-pressure, low-pressure and high-temperature environments, and applications involving a heavy concentration of rust or other challenging materials. This revolutionary drain trap also features Drain-All’s patented throughport technology for a maximum throughput capacity of solid debris. Use the Condensate Handler with compressors with a power output capacity of up to 1,500 hp.

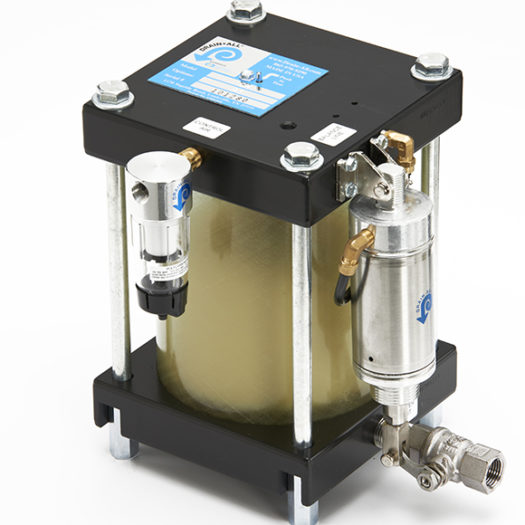

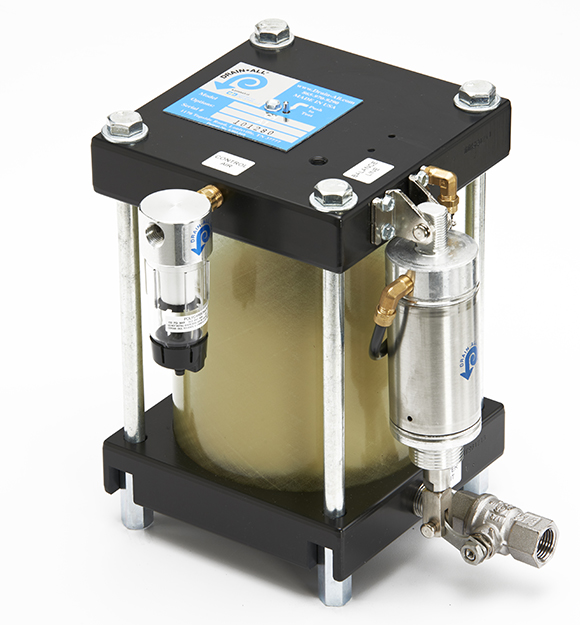

Corrosion Handler®

This drain trap is the best choice for removing corrosive chemicals or materials from the condensate. The destructive action can result from a gas like carbon dioxide or an aggressive liquid component produced during the compression process. The Corrosion Handler also works well in environments such as ocean-based oil rig operations and cement manufacturing facilities.

These traps also offer an anodized aluminum, PVC and stainless steel construction that maximizes durability and reliability in challenging working conditions. With more than 80 trap options available, you’re sure to find one that’s compatible with your compressed air system.

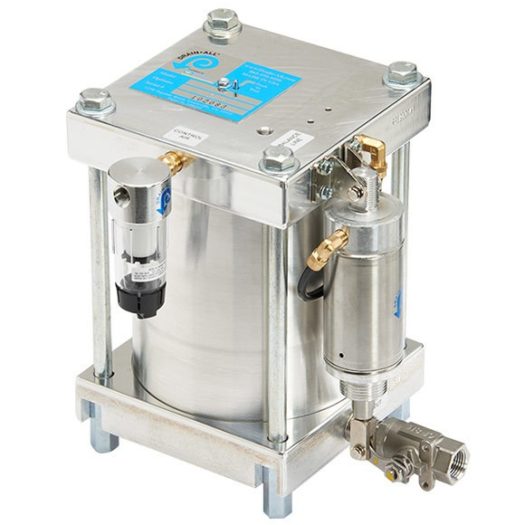

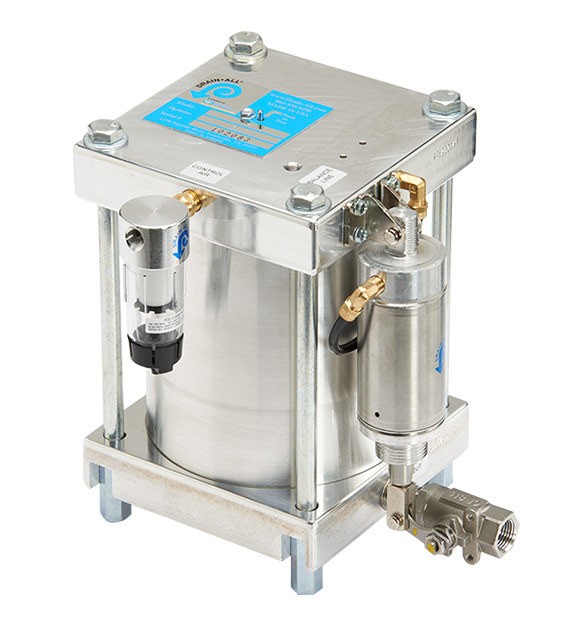

Pressure Handler® 300/750/ATM

Use this drain trap in environments involving zero or atmospheric pressure compressed air applications ranging from 0 psig to 1,200 psig. The 300 and 750 models are ideal for positive pressure situations, while the ATM variant is the best choice for pressurizing a zero pressure liquid feed and pushing it to a higher level.

Oil Handler®

This trap is the most appropriate option for removing condensate containing high volumes of compressor lubricants or low specific gravity oil. It is capable of draining liquids with a specific gravity down to 0.7. Typical Oil Handler applications include older air compressors where leakage of oil into the condensate stream is a constant issue, ethanol processing operations, and other industrial processes that involve low specific gravity fluids under pressure.

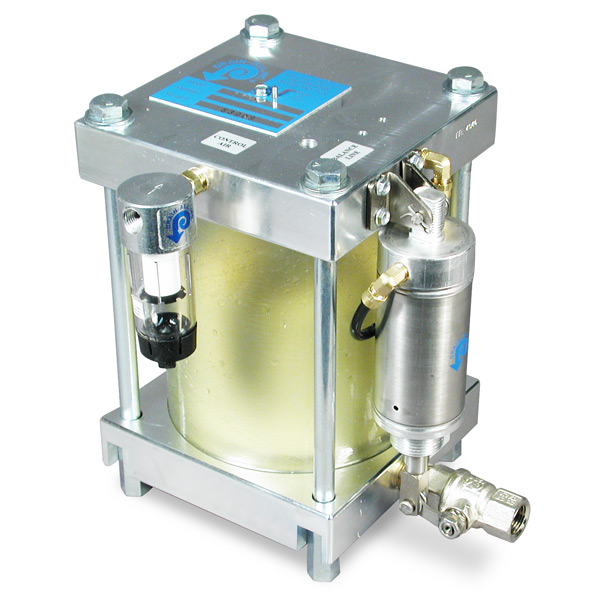

Rust Handler®

Choose Rust Handler if your applications produce substantial amounts of scale, rust or other solid debris in the liquid condensate stream. The innovative port design passes larger materials with no concerns about clogging. This trap is compatible with older receiver tanks, piping and aftercoolers where scale is a common problem.

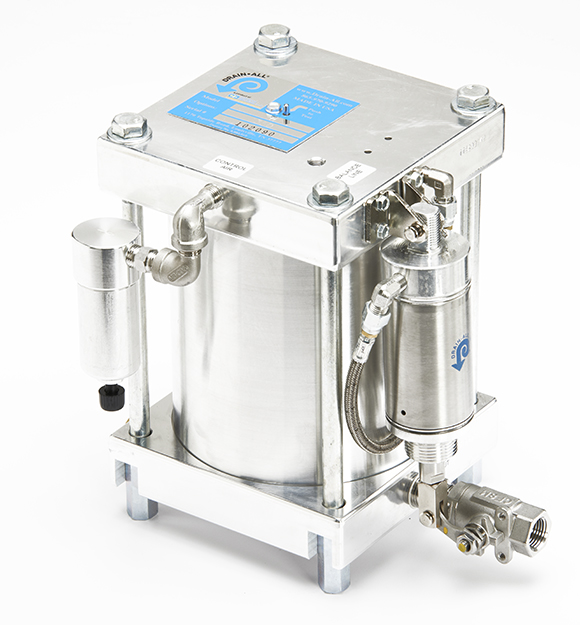

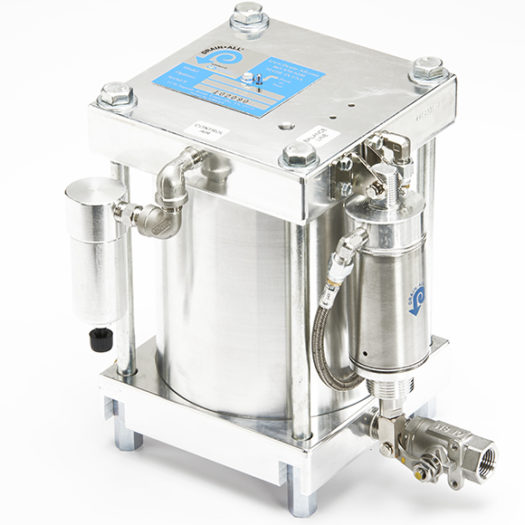

Temperature Handler®

Drain-All has designed this drain trap specifically for high-temperature applications of up to 170 degrees Fahrenheit. Models that can accommodate 250-degree and 350-degree Fahrenheit environments are also available. Use it for applications such as removing condensate from hot liquids due to maintenance and clean-out processes and high-temperature process liquids under pressure.

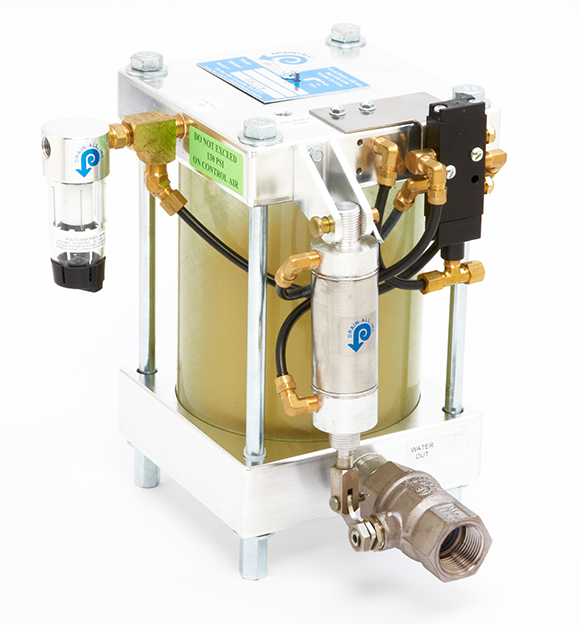

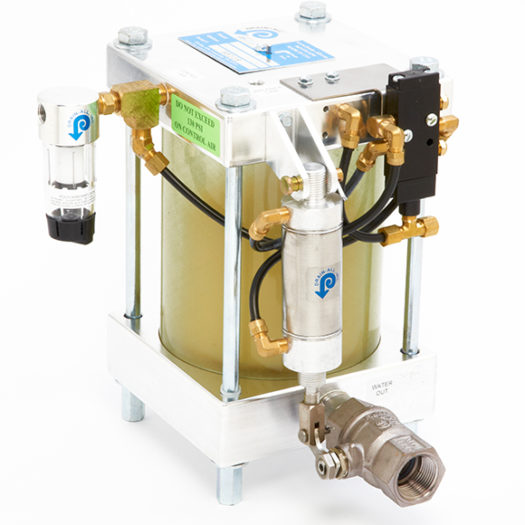

Vacuum Handler®

The Vacuum Handler is the best drain trap for vacuum system applications such as vacuum pumps, gas reclaiming operations and machining operations that use a vacuuming process to seal parts. The standard version relies on gravity to drain liquid from the trap, but a pressurized option is also available.

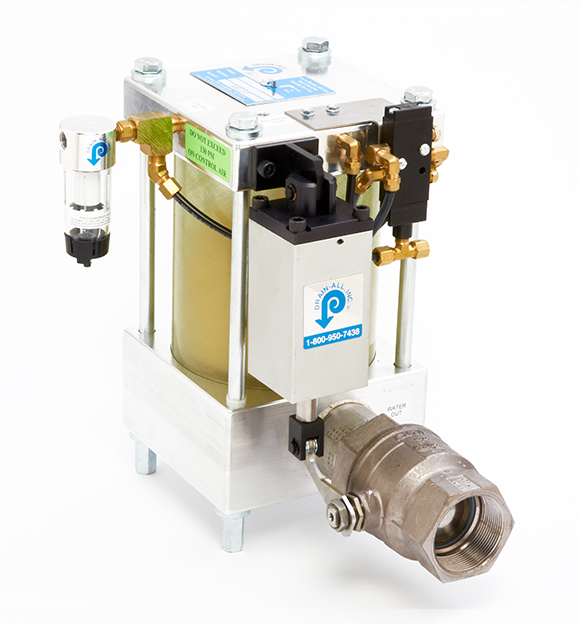

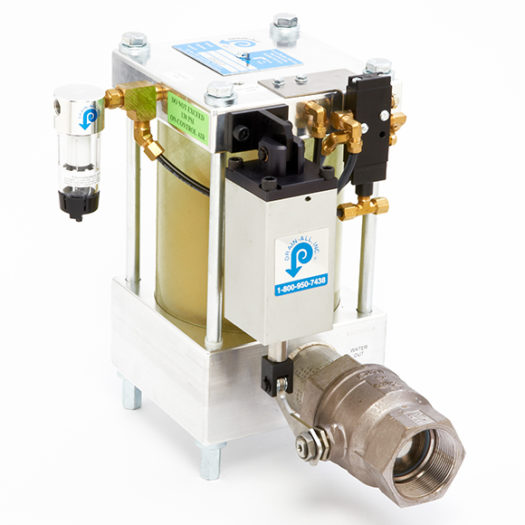

Volume Handler®

Choose this drain trap if your applications require handling significantly large liquid flows. Models are available for flow capacities ranging from 3 gpm to more than 100 gpm. They’re compatible with compressor systems up to 40,000 hp.

The Titus Company: A Full-Service Condensate Handler Provider

The Titus Company has helped companies throughout Eastern Pennsylvania, New Jersey, Delaware and beyond overcome their most challenging compressed air issues for more than 35 years. We’re experts at helping customers find ways to reduce energy consumption, improve processes and enhance compressed air quality. We support our equipment with a host of value-added services, including system design and monitoring, repairs and maintenance.

Request a Quote for Drain-All Condensate Drains Today

Browse our current selection of Drain-All condensate handlers and contact us to learn more today. You can give us a call at 610.913.9100 or submit our online contact form to request additional information and a no-obligation quote.

Request Information

Drain-All Video

Product Catalogs & Spec Sheet Downloads

Manufacturer Link

Condensate Handler Technical Specifications

Part NumberInlet/Outlet (in)Control Air (in)Balance Line (in)Dimensions (in)Dimensions (cm)Max Liquid Temperature - F (Cº)Max Liquid Pressure - PSIG (BARG)Control Air Min - PSIG (BARG)Control Air Max - PSIG (BARG)Max Flow at 100 PSIG (GPM)Weight - lbs (kg)
DH50-0LAAA1/2 NPT1/4 NPT1/8 NPT11 x 9 1/4 x 10 1/227.9 x 23.5 x 26.7170 (76.7)170 (11.7)40 (2.8)130 (9.0)1.521.0 (9.5)



Manufacturer Link

Corrosion Handler Technical Specifications

Part NumberInlet/Outlet (in)Control Air (in)Balance Line (in)Dimensions (in)Dimensions (cm)Max Liquid Temperature - F (Cº)Max Liquid Pressure - PSIG (BARG)Control Air Min - PSIG (BARG)Control Air Max - PSIG (BARG)Max Flow at 100 PSIG (GPM)Weight - lbs (kg)
CH50-0LAA11/2 NPT1/4 NPT1/8 NPT11 x 9 1/4 x 10 1/227.9 x 23.5 x 26.7170 (76.7)170 (11.7)40 (2.8)130 (9.0)1.521.0 (9.5)



Manufacturer Link

Oil Handler Technical Specifications

Part NumberInlet/Outlet (in)Control Air (in)Balance Line (in)Dimensions (in)Dimensions (cm)Max Liquid Temperature - F (Cº)Max Liquid Pressure - PSIG (BARG)Control Air Min - PSIG (BARG)Control Air Max - PSIG (BARG)Max Flow at 100 PSIG (GPM)Weight - lbs (kg)Minimum Specific Gravity
OH50-0LAAA1/2 NPT1/4 NPT1/8 NPT11 x 9 1/4 x 10 1/227.9 x 23.5 x 26.7170 (76.7)170 (11.7)40 (2.8)130 (9.0)1.521.0 (9.5)0.7



Manufacturer Link

Pressure Handler Technical Specifications

Part NumberInlet/Outlet (in)Control Air (in)Balance Line (in)Dimensions (in)Dimensions (cm)Max Liquid Temperature - F (Cº)Max Liquid Pressure - PSIG (BARG)Control Air Min - PSIG (BARG)Control Air Max - PSIG (BARG)Max Flow at 100 PSIG (GPM)Weight - lbs (kg)
PH50-0MAAA1/2 NPT1/4 NPT1/8 NPT11 x 9 1/4 x 10 1/227.9 x 23.5 x 26.7170 (76.7)300 (20.7)40 (2.8)130 (9.0)1.7 @ 200 PSIG21.0 (9.5)
PH50-0NAAA1/2 NPT1/4 NPT1/8 NPT11 x 9 1/4 x 10 1/227.9 x 23.5 x 26.7170 (76.7)750 (51.7)40 (2.8)130 (9.0)2.2 @ 500 PSIG21.0 (9.5)
PH50-0GAAA1/2 NPT1/4 NPTNon11 x 10 3/4 x 13 1/227.9 x 27.3 x 34.3170 (76.7)Atmospheric50 (3.4)130 (9.0)N/A22.0 (10)



Manufacturer Link

Rust Handler Technical Specifications

Part NumberInlet/Outlet (in)Control Air (in)Balance Line (in)Dimensions (in)Dimensions (cm)Max Liquid Temperature - F (Cº)Max Liquid Pressure - PSIG (BARG)Control Air Min - PSIG (BARG)Control Air Max - PSIG (BARG)Max Flow at 100 PSIG (GPM)Weight - lbs (kg)
RH50-0LAAA1/2 NPT1/4 NPT1/8 NPT11 x 9 1/4 x 10 1/227.9 x 23.5 x 26.7170 (76.7)170 (11.7)40 (2.8)130 (9.0)1.521.0 (9.5)



Manufacturer Link

Temperature Handler Technical Specifications

Part NumberInlet/Outlet (in)Control Air (in)Balance Line (in)Dimensions (in)Dimensions (cm)Max Liquid Temperature - F (Cº)Max Liquid Pressure - PSIG (BARG)Control Air Min - PSIG (BARG)Control Air Max - PSIG (BARG)Max Flow at 100 PSIG (GPM)Weight - lbs (kg)
TH50-0LTAA1/2 NPT1/4 NPT1/8 NPT11 x 9 1/4 x 10 1/227.9 x 23.5 x 26.7250 (121)170 (11.7)40 (2.8)130 (9.0)1.521.0 (9.5)
TH50-0LTAB1/2 NPT1/4 NPT1/8 NPT11 x 9 1/4 x 10 1/227.9 x 23.5 x 26.7350 (176.7)170 (11.7)40 (2.8)130 (9.0)1.522.6 (10.3)



Manufacturer Link

Vacuum Handler Technical Specifications

Part NumberInlet/Outlet (in)Control Air (in)Balance Line (in)Dimensions (in)Dimensions (cm)Max Liquid Temperature - F (Cº)Max Liquid Pressure - PSIG (BARG)Control Air Min - PSIG (BARG)Control Air Max - PSIG (BARG)Max Flow at 100 PSIG (GPM)Weight - lbs (kg)
UH50-0LAAA1/2 NPT1/4 NPT1/2 NPT15 x 10 3/4 x 13 1/238.1 x 27.3 x 34.3170 (76.7)28.5 (723.9)40 (2.8)130 (9.0)1.022.6 (10.3)



Manufacturer Link

Volume Handler Technical Specifications

Part NumberInlet/Outlet (in)Control Air (in)Balance Line (in)Dimensions (in)Dimensions (cm)Max Liquid Temperature - F (Cº)Max Liquid Pressure - PSIG (BARG)Control Air Min - PSIG (BARG)Control Air Max - PSIG (BARG)Max Flow at 100 PSIG (GPM)Weight - lbs (kg)
VH10-0LAAA1 NPT1/4 NPT1/8 NPT12 x 10 3/4 x 11 1/230.5 x 27.3 x 29.2170 (76.7)170 (11.7)50 (3.4)130 (9.0)6.024.6 (11.2)
VH20-0LAAA2 NPT1/4 NPT1/8 NPT13 1/2 x 10 3/4 x 1434.3 x 27.3 x 35.6170 (76.7)170 (11.7)50 (3.4)130 (9.0)36.036.5 (16.6)
