Penway Air and Gas Receivers

Penway Horizontal Air and Gas Receivers

Penway Inc. has been serving the pressure vessel industry since 1989. We are dedicated to excellent quality, on-time delivery, customer service, and overall satisfaction. We have served many industries including; industrial air power, vacuum, water storage, steam service, HVAC service, plastics, oil and gas, chemical, and chemical processing.

All Pressure Vessels are built to the latest addenda of ASME Pressure Vessel Code Section VIII Division 1 and are stamped with a “U” Stamp. We also have a National Board of Boiler and Pressure Vessel Inspectors “R” Stamp for repairs of vessels.

Penway Inc. has over 50 years of pressure vessel experience including professional engineers on staff within our engineering department. We are fully capable of sealing documents with a Professional Engineering stamp at your request. Penway also uses the latest engineering and design software which includes the latest updates to the ASME Boiler and Pressure Vessel Code.

Description:
ASME Horizontal Industrial Air Storage Tanks.

Used to store compressed air.

All Penway Air Receivers come with a primer coating on the outside surface. Special external and internal coatings are available on request.

Specifications:

  • Carbon Steel
  • 10 – 7500 Gallon Sizes
  • Grey Primer Exterior Finish

Models:

Horizontal/Vertical 3-15 Gallon

PENWAY HORIZONTAL:VERTICAL 3-15 GALLON

Horizontal 10-20 Gallon

PENWAY HORIZONTAL 10 - 20 GALLON

Horizontal with Feet 30-120 Gallon

PENWAY HORIZONTAL w:FEET 30 - 120 GALLON

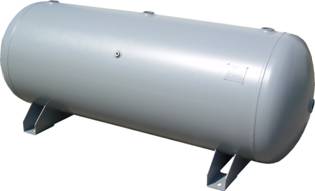

Horizontal with Saddles 200-400 Gallon

PENWAY HORIZONTAL W:SADDLES 200 - 400 GALLON

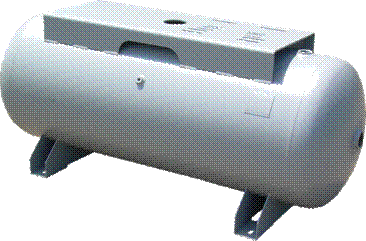

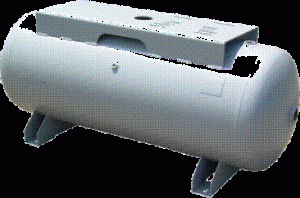

Horizontal with Saddles & Platform 30-240 Gallon

PENWAY HORIZONTAL W:SADDLES & PLATFORM 30 - 240 GALLON

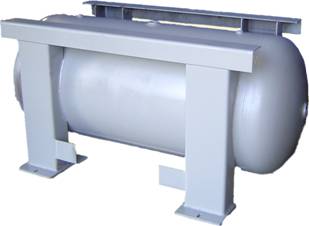

Horizontal Grasshopper Tanks

PENWAY HORIZONTAL GRASSHOPPER TANKS

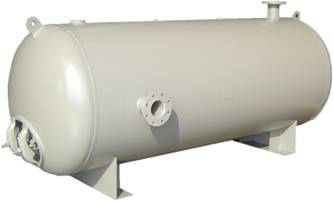

Large Horizontal with Saddle 660-5000 Gallon

PENWAY LARGE HORIZONTAL w/Saddle 660 - 5000 Gallon



Penway Vertical Air and Gas Receivers

Description:

ASME vertical industrial air storage tanks. Used to store compressed air for power systems.

Specifications:

  • Carbon Steel
  • 10 – 7500 Gallon Sizes
  • Grey Primer Exterior Finish

Models:

Small Vertical 10-20 Gallon

PENWAY SMALL VERTICAL 10 - 20 GALLON

Vertical with Feet 30-80 Gallon

PENWAY VERTICAL W:FEET 30 -80 GALLON

Vertical with Platform & Feet or Platform 30-120 Gallon

PENWAY VERTICAL w:PLATFORM & FEET or PLATFORM 30 - 120 GALLON

Vertical with Basering 120-500 Gallon

PENWAY VERTICAL W:BASERING 120 - 500 GALLON

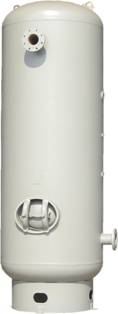

Vertical with Basering 660-7500 Gallon

PENWAY VERTICAL W:BASERING 660 - 7500 GALLON



Penway Vacuum Air and Gas Receivers

Description:

Industrial Vacuum Receiver

Specifications:

  • Built to ASME Code Section VIII
  • Rated to 150 PSI & Full Vacuum
  • National Board Registered
  • Carbon Steel
  • Basering Support
  • Grey Primer

Models:

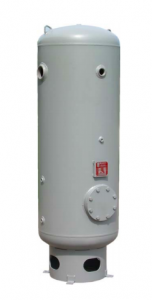

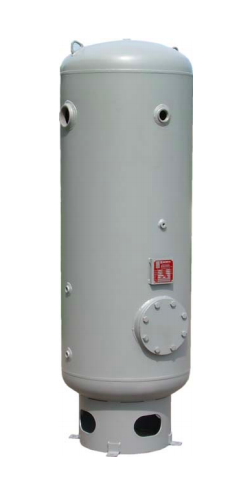

Vacuum Receiver 60-400 Gallon

Penway Vacuum Receivers 60 – 400 Gallons

Request Information

Horizontal Series Technical Specifications

SeriesPart #Design PressureGalDiaTLTHDimensions (inches)Openings (NPT)Weight (lbs.)
Horizontal/Vertical 3-15 GallonA21008016400400 PSI3816-7 x 7 x 3 3/43/4, 1/2, 1/2, 3/417
Horizontal/Vertical 3-15 GallonA21010016320320 PSI51016-6 x 8 x 3 3/83/4, 1/2, 1/2, 3/422
Horizontal/Vertical 3-15 GallonA21012023265265 PSI101223-10 x 10 x 63/4, 1/2, 1/2, 3/435
Horizontal/Vertical 3-15 GallonA21014026230230 PSI151426-12 x 12 x 73/4, 1/2, 1/2, 1 1/245
Horizontal 10-20 GallonA22110030300300 PSI10103011 9/1618 x 8 1/2 x 9 1/21/2, 3/4, 1/439
Horizontal 10-20 GallonA22112033250250 PSI15123313 3/1620 x 11 x 111/2, 3/4, 1/446
Horizontal 10-20 GallonA22114033200200 PSI20143316 1/418 x 14 x 10 1/21/2, 1 1/2, 1/461
Horizontal 30-120 GallonA22216038200200 PSI30163818 1/222 x 14 x 13 1/41/2, 1/4, 1/4, 1 1/2, 3/477
Horizontal 30-120 GallonA22220048200200 PSI60204822 3/426 x 18 1/2 x 16 3/43/4, 1/4, 1/2, 2, 1163
Horizontal 30-120 GallonA22220063200200 PSI80206322 3/436 x 18 1/2 x 231, 1/4, 3/4, 2, 1 1/2187
Horizontal 30-120 GallonA22224067200200 PSI120246726 1/242 x 20 1/4 x 23 1/21 1/2, 1/4, 3/4, 2, 1 1/2287
Horizontal 200-400 GallonA22330072200200 PSI20030723342 x 26 x 242, 1/4, 1, 2545
Horizontal 200-400 GallonA22330084200200 PSI24030843354 x 26 x 302, 1/4, 1, 2621
Horizontal 200-400 GallonA22336094150150 PSI40036943954 x 32 x 272, 1/4, 1, 2701
Horizontal 200-400 GallonA22336094200200 PSI40036943954 x 32 x 272, 1/4, 1, 2920
Horizontal 30-240 GallonA22416038200(no slots)
A22416038201 (NEMA slots)
200 PSI3016163822 x 13 x 12 x 24 x 13 1/4 x 3/16 x 1 7/81/2, 1/4, 1/4, 1 1/2, 3/4105
Horizontal 30-240 GallonA22420048200 (no slots)
A22420048201
(NEMA slots)
200 PSI6020204826 x 17 x 14 x 30 x 16 3/4 x 3/16 x 1 3/43/4, 1/5, 1/2, 2, 1196
Horizontal 30-240 GallonA22420063200 (no slots)
A22420063201 (NEMA slots)
200 PSI8020206336 x 17 x 14 x 40 x 23 x 3/16 x 1 7/81, 1/4, 3/4, 2, 1 1/2250
Horizontal 30-240 GallonA22524067200 (no slots)
A22524067201
(NEMA slots)
200 PSI12024246742 x 20 x 16 x 44 x 23 1/2 x 1/4 x 21 1/4, 1/4, 3/4, 2, 1 1/4375
Horizontal 30-240 GallonA22530072200 (no slots)
A22530072201 (NEMA slots)
200 PSI20030307242 x 26 x 18 x 44 x 24 x 1/4 x 22, 1/4, 1, 2, 2550
Horizontal 30-240 GallonA22530084200 (no slots)
A22530084201 (NEMA slots)
200 PSI24030308454 x 26 x 18 x 48 x 30 x 1/4 x 22, 1/4, 1, 2, 2610
Horizontal Grasshopper TankA28020048200200 PSI6020482513 1/2 x 15 1/2 x 27 x 26 1/22, 1 1/2, 3/4, 1/2, 1/2, 1/8216
Horizontal Grasshopper TankA28020063200200 PSI8020632521 x 23 x 42 x 26 1/22, 1 1/2, 3/4, 1/2, 3/4, 1/8275
Horizontal Grasshopper TankA28024067200200 PSI12024672921 1/2 x 25 x 43 x 322, 1 1/2, 3/4, 1/2, 3/4, 1/8413
Horizontal Grasshopper TankA28030072200200 PSI20030723521 x 25 x 42 x 402, 1 1/2, 3/4, 1/2, 1, 1/8661
Horizontal Grasshopper TankA28030084200200 PSI24030843527 x 31 x 54 x 402, 2, 3/4, 2, 1, 1/8758
Large Industrial
Horizontal 660–5000 Gallon
A22642117165165 PSI660421174827 x 18 x 73 x 70 16 x 25 x 10 ½3 NPT, 1 NPT, 4 FLG1324
Large Industrial
Horizontal 660–5000 Gallon
A22648144165165 PSI1060481445432 x 24 x 88 x 84 x 18 x 29 x 123 NPT, 1 NPT, 6 FLG2056
Large Industrial
Horizontal 660–5000 Gallon
A22654166165165 PSI1550541666038 x 26 x 104 x 98 x 19 x 33 x 13 ½3 NPT, 1 NPT, 6 FLG2806
Large Industrial
Horizontal 660–5000 Gallon
A22660190165165 PSI2200601906644 x 29 x 121 x 116 x 21 x 37 x 153 NPT, 1 NPT, 6 FLG3780
Large Industrial
Horizontal 660–5000 Gallon
A22660220165165 PSI2560602206654 x 29 x 148 x 146 x 21 x 37 x 153 NPT, 1 NPT, 6 FLG4215
Large Industrial
Horizontal 660–5000 Gallon
A22666214150165 PSI3000662147251 x 30 x 153 x 128 x 23 x 40 x 16 ½3 NPT, 1 NPT, 6 FLG5481
Large Industrial
Horizontal 660–5000 Gallon
A22672228150165 PSI3800722287856 x 30 x 168 x 136 x 24 x 44 x 183 NPT, 1 NPT, 6 FLG6668
Large Industrial
Horizontal 660–5000 Gallon
A22672305150165 PSI5000723057882 x 30 x 245 x 213 x 26 x 44 x 18 x 263 NPT, 1 NPT, 6 FLG, 3 NPT8550
Large Industrial
Horizontal 660–5000 Gallon
A22684229150165 PSI5000842299052 x 36 x 160 x 138 x 29 x 58 x 29 x 263 NPT, 1 NPT, 6 FLG, 3 NPT8600



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

Vertical Series Technical Specifications

SeriesPart #Design PressureGalDiaTLTHDimensions (inches)Openings (NPT)Weight (lbs.)
Small Vertical 10-20 GallonA21110030300300 PSI101030334 x 8 ½ x 3 x 9 ½¾, ½, ¼39
Small Vertical 10-20 GallonA21112033250250 PSI151233364 x 10 x 3 x 11¾, ½, ¼49
Small Vertical 10-20 GallonA21114033200200 PSI20143334 3/417 x 1 ¾ x 10 ½1 ½, ½, ¼56
Vertical 30-80 GallonA21216038200200 PSI30163840 5/89 x 29 x 18 x 2 5/8¼, ¾, 1 ½, 1 ½, ½83
Vertical 30-80 GallonA21220048200200 PSI60204850 1/810 x 38 x 23 x 2 1/8¼, ¾, 2, 1 ½, ½132
Vertical 30-80 GallonA21224048200200 PSI80244850 1/412 x 35 x 26 x 2 1/4¼, 1 ¼, 2, 1 ¼, ½200
Vertical 30-80 GallonA21220063200200 PSI80206365 1/810 x 53 x 23 x 2 1/8¼, 1, 2, 1 ½, ½175
Vertical 30-120 GallonA21316038200 (no slots)
A21316038201 (NEMA slots)
200 PSI30163841 7/86 ½ x 31 ⅛ x 25 ⅛ x 2 ⅝ x 9 x 18 x 23 x 3/16¼, 1 ½, ¾, ¾, ½, 1 ½, ¾101
Vertical 30-120 GallonA21320048200 (no slots)
A21320048201 (NEMA slots)
200 PSI60204852 1/48 ½ x 40 x 34 x 2 ¾ x 13 x 16 5/8 x 30 x 3/16¼, 2, ¾, ¾, ½, 2, ¾166
Vertical 30-120 GallonA21324048200 (no slots)
A21324048201 (NEMA slots)
200 PSI80244853 1/49 x 40 5/16 x 35 5/16 x 3 3/16 x 13 x 20 5/8 x 30 x 3/16¼, 2, 1 ¼, 1 ¼, ½, 2, 1 ¼211
Vertical 30-120 GallonA21430046200 (no slots)
A21430046201 (NEMA slots)
200 PSI12030465710 x 41 x 35 x 21 x 15 x 24 x 39 x ¼¼, 2, 2, 2, ½, 2, 2470
Vertical Industrial 120-500 GallonA21524067200200 PSI1202467-13 x 14 x 13 x 13 x 75 x 202, ½286
Vertical Industrial 120-500 GallonA21530072200200 PSI2003072-15 x 16 x 15 x 13 x 80 x 243, 1 ½517
Vertical Industrial 120-500 GallonA21530084200200 PSI2403084-19 x 20 x 19 x 13 x 92 x 243, 1 ½533
Vertical Industrial 120-500 GallonA21536094150150 PSI4003694-21 x 22 x 21 x 15 x 102 x 293, 1 ½644
Vertical Industrial 120-500 GallonA21536094200200 PSI4003694-21 x 22 x 21 x 15 x 102 x 293, 1 ½875
Vertical Industrial 120-500 GallonA21536118165165 PSI50036118-25 x 25 x 25 x 20 x 126 x 293, 2 ½815
Vertical Industrial 120-500 GallonA21536118200200 PSI50036118-25 x 25 x 25 x 20 x 126 x 293, 2 ½1055
Large Vertical Industrial 660-5000 GallonA21642117165165 PSI6604211712577 x 16 x 26 x 20 x 33 x 364 FLG, 1 NPT, 3 NPT1397
Large Vertical Industrial 660-5000 GallonA21648144165165 PSI10604814415296 x 16 x 26 x 24 x 39 x 42 ½6 FLG, 1 NPT, 3 NPT2110
Large Vertical Industrial 660-5000 GallonA21654166165165 PSI155054166174114 x 16 x 26 x 24 x 39 x 42 ½6 FLG, 1¼ NPT, 3 NPT2950
Large Vertical Industrial 660-5000 GallonA21660190165165 PSI220060190198140 x 16 x 26 x 26 x 45 x 48 ½6 FLG, 1¼ NPT, 3 NPT3740
Large Vertical Industrial 660-5000 GallonA21660220165165 PSI256060220228168 x 16 x 26 x 26 x 45 x 48 ½6 FLG, 1¼ NPT, 3 NPT4243
Large Vertical Industrial 660-5000 GallonA21666214150150 PSI300066214222158 x 16 x 26 x 28 x 49 x 52 ½6 FLG, 1¼ NPT, 3 NPT6492
Large Vertical Industrial 660-5000 GallonA21672228150150 PSI380072228236168 x 16 x 26 x 30 x 55 x 58 ½6 FLG, 1¼ NPT, 3 NPT6996
Large Vertical Industrial 660-5000 GallonA21672305150150 PSI500072305313245 x 16 x 26 x 30 x 55 x 58 ½ x 226 FLG, 1¼ NPT, 3 NPT, 3 NPT8500
Large Vertical Industrial 660-5000 GallonA21684229150150 PSI500084229237168 x 16 x 26 x 30 ½ x 67 x 70 ½ x 246 FLG, 1¼ NPT, 3 NPT, 3 NPT7642



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

Vacuum Series Technical Specifications

SeriesPart #Design PressureGalDiaTLTHDimensions (inches)OpeningsWeight (lbs.)
Vacuum 60-400 GallonA7060150 PSI & F.V.6020485617 x 6 x 6 x 142, ½, ¼, 3 NPT, 1 ½260
Vacuum 60-400 GallonA7080150 PSI & F.V.8020637117 x 6 x 6 x 292, ½, ¼, 3 NPT, 1 ½295
Vacuum 60-400 GallonA7120150 PSI & F.V.12024677518 x 6 x 6 x 312, ½, ¼, 3 NPT, 1 ½360
Vacuum 60-400 GallonA7240150 PSI & F.V.24030849219 x 6 x 6 x 442, ½, ¼, 6 FLG, 1 ½554
Vacuum 60-400 GallonA7400150 PSI & F.V.400369310121 x 6 x 6 x 502, ½, ¼, 6 FLG, 1 ½565
