Samuel Pressure Vessel Group (SPVG) is an international leader in air receiving pressure vessels. They are ISO 9001 certified and committed to inspecting every vessel for compliance with the most stringent safety and quality standards.
At Fluid Aire Dynamics, we offer a wide selection of SPVG tanks in various sizes and orientations.
Vertical Air Receiver Tanks
SPVG offers a selection of vertical tanks in different capacities. These tanks are ideal for areas where space is limited because their vertical orientation gives them a compact footprint.
Small Vertical Tanks
The smallest vertical SPVG air receiver tanks have the smallest footprint for the ultimate space-saving installation. These tanks hold 30 to 80 gallons of compressed air at 200 pounds per square inch (PSI).
SPVG small vertical tanks feature four feet that can be bolted in place for added support and stability.

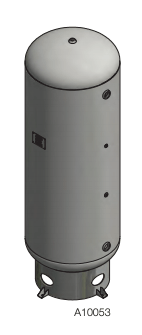

Medium Vertical Tanks
SPVG medium vertical pressure vessel tanks can store 80 to 500 gallons of compressed air at either 165, 200 or 300 PSI. These tanks range from 20 to 36 inches in diameter for installation in compact spaces, with a 6-inch or 8-inch base ring for support.

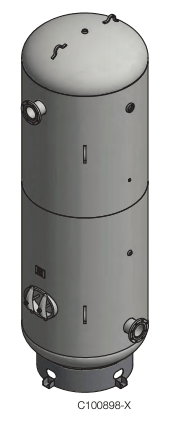

Large Vertical Tanks
The largest SPVG vertical tanks hold up to 5000 gallons of compressed air at 137 to 300 PSI. They range in size from 42 inches by 120 inches to 72 inches by 305 inches, so you can be sure to find the perfect pressure vessel to fit your space.
Horizontal Air Reciever Tanks
Horizontal pressure vessels are low, long and parallel to the ground. You can optimize your space with a horizontal tank by storing it underneath other fixtures or even mounting your compressor on top of the tank.

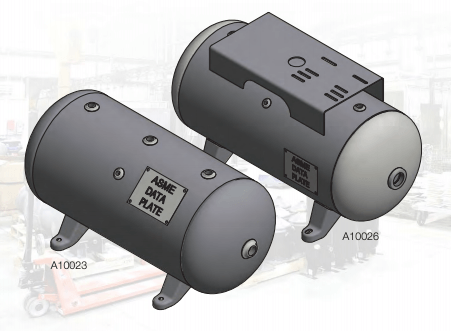

Small Horizontal Tanks
Fluid Aire Dynamics offers a range of options for small horizontal tanks, including those with four feet for support and those with saddle bases that mount flush with flat surfaces.
Our SPVG small horizontal pressure vessels with feet range in diameter from 12 to 16 inches. They hold 12 to 30 gallons of compressed air at either 200 or 300 PSI. Some options are available with a top plate, so compressors can be mounted on top of the tank.
Saddle-leg options range from 16 to 24 inches in diameter and hold as much as 120 gallons of compressed air at 200 or 300 PSI. Options for a top plate or an extended top plate are available.

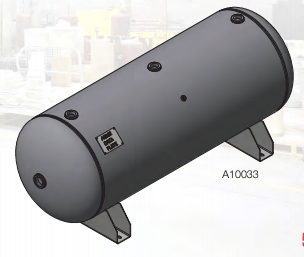

Small Horizontal Tanks with Saddle Legs

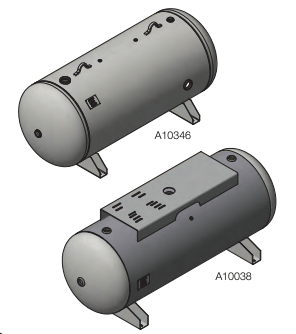

Medium Horizontal Tanks
Medium horizontal tanks from SPVG have maximum compressed air capacities between 200 and 500 gallons held at 165 or 200 PSI. These pressure vessels feature saddle legs for support and options for a top plate or extended top plate.

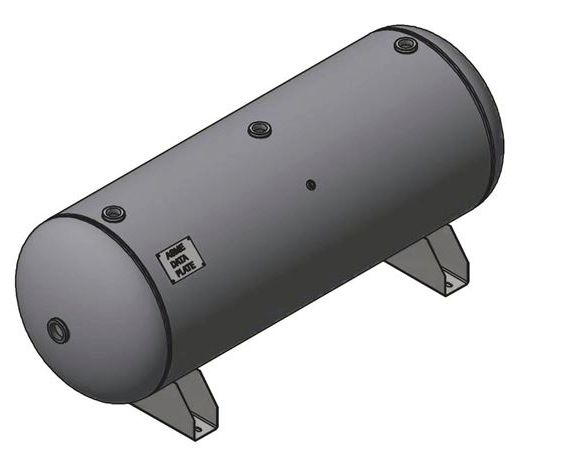

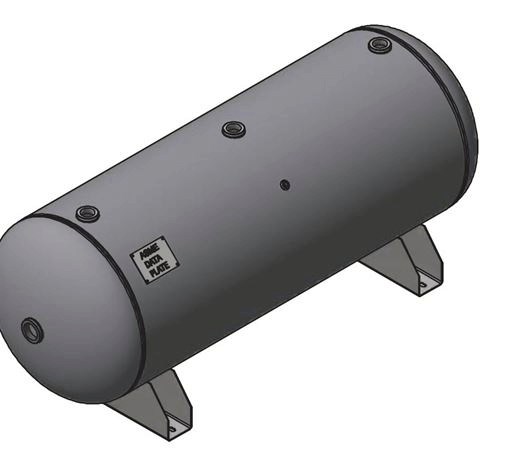

Large Horizontal Tanks
SPVG large horizontal pressure vessels range in capacity from 660 to 2560 gallons at 150 to 200 PSI. These tanks feature saddle legs for flush mounting on flat surfaces.

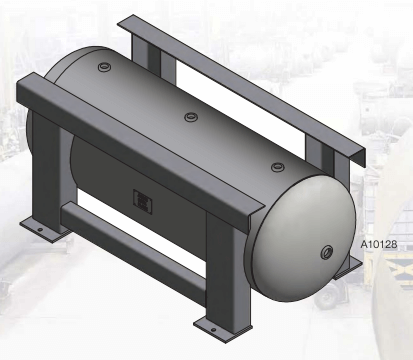

Grasshopper Tanks
Fluid Aire Dynamics offers grasshopper vertical pressure vessels with capacities between 30 and 240 gallons at 200 PSI. The unique grasshopper/pedestal mounting helps to evenly distribute the weight of the tanks and provide stability and support.
Industrial Applications
Samuel Pressure Vessel Group is one of the largest suppliers for commercial and industrial ASME air receivers in North America. Their vessels are used in a variety of applications, including:
- Aerospace.
- Building and construction.
- Food and beverage production.
- Manufacturing.
- Agriculture.
- Automotive.
- Chemical processing.
Get SPVG Pressure Vessels From Fluid Aire Dynamics
Fluid Aire Dynamics can help you determine which SPVG tank is best for your business. Give us a call at 610-913-9100 or contact us online for more information and a free, no-obligation quote.
Small Vertical Tank Technical Specifications
Part Number | Gallons | Size | Pressure | Supports & Attachments |
---|---|---|---|---|
A10040 | 30 | 16 X 38 | 200 | 4 feet |
A10040-300 | 30 | 16 X 38 | 300 | 4 feet |
A10041 | 30 | 16 X 38 | 200 | 4 feet, 9" X 23" top plate |
A10043 | 30 | 20 X 48 | 200 | 4 feet |
A10043-300 | 30 | 20 X 48 | 300 | 4 feet |
A10044 | 30 | 20 X 48 | 200 | 4 feet, 13" X 30" top plate |
A10045 | 30 | 24 X 45 | 200 | 4 feet |
A10046 | 30 | 24 X 45 | 200 | 4 feet, 13" X 30" top plate |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
Vertical Tank Technical Specifications
Part Number | Gallons | Size | Pressure | Supports & Attachments |
---|---|---|---|---|
A10325 | 80 | 20 X 63 | 200 | 6" base ring |
A10325-300 | 80 | 20 X 63 | 300 | 6" base ring |
A10047 | 120 | 30 X 45 | 200 | 6" base ring, 15" X 39" top plate |
A10049 | 120 | 24 X 67 | 200 | 8" base ring |
A10049-300 | 120 | 24 X 67 | 300 | 8" base ring |
A12276 | 120 | 30 X 45 | 200 | 6" base ring |
A10051 | 200 | 30 X 72 | 200 | 8" base ring |
A10051-300 | 200 | 30 X 72 | 300 | 8" base ring |
A10053 | 240 | 30 X 84 | 200 | 8" base ring |
A10053-300 | 240 | 30 X 84 | 300 | 8" base ring |
A10055 | 400 | 36 X 93 | 165 | 8" base ring |
A10055-300 | 400 | 36 X 93 | 300 | 8" base ring |
A10056X | 400 | 36 X 93 | 200 | 8" base ring |
A10129 | 500 | 36 X 117 | 165 | 8" base ring |
A10129-300 | 500 | 36 X 117 | 300 | 8" base ring |
A10130 | 500 | 36 X 117 | 200 | 8" base ring |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
Large Vertical Tank Technical Specifications
Part Number | Gallons | Size | Pressure | Supports & Attachments |
---|---|---|---|---|
A10131 | 660 | 42 X 120 | 150 | 8" base ring |
A10131-300X | 660 | 42 X 120 | 300 | 8" base ring |
C100950-X | 660 | 42 X 120 | 200 | 8" base ring |
A10132 | 1060 | 48 X 144 | 155 | 8" base ring |
A10132-300 | 1060 | 48 X 144 | 300 | 8" base ring |
C100331 | 1060 | 48 X 144 | 200 | 8" base ring |
A10332 | 1550 | 54 X 166 | 200 | 8" base ring |
C100898-X | 1550 | 54 X 166 | 165 | 8" base ring |
A10333 | 2000 | 60 X 174 | 150 | 8" base ring |
A10336 | 2560 | 60 X 220 | 150 | 8" base ring |
A10339 | 3000 | 0 66 X 214 | 137 | 8" base ring |
C102476 | 3000 | 0 66 X 214 | 150 | 8" base ring |
A10340 | 3800 | 72 X 228 | 150 | 8" base ring |
C103115 | 5000 | 72 X 305 | 150 | 8" base ring |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
Small Horizontal Tanks With Feet Technical Specifications
Part Number | Gallons | Size | Pressure | Supports & Attachments |
---|---|---|---|---|
A10023 | 12 | 12 X 27 | 200 | Feet |
A10023-300 | 12 | 12 X 27 | 300 | Feet |
A10024 | 12 | 12 X 27 | 200 | Feet, 9" X 15" top plate |
A10025 | 20 | 14 X 33 | 200 | Feet |
A10025-300 | 20 | 14 X 33 | 300 | Feet |
A10026 | 20 | 14 X 33 | 200 | Feet, 10" X 19" top plate |
A10039 | 30 | 16 X 38 | 200 | Feet, 16" X 38" top plate |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
Small Horizontal Tanks With Saddle Legs Technical Specifications
Part Number | Gallons | Size | Pressure | Supports & Attachments |
---|---|---|---|---|
A10027 | 30 | 16 X 38 | 200 | Saddle legs |
A10027-300 | 30 | 16 X 38 | 300 | Saddle legs |
A10028 | 30 | 16 X 38 | 200 | Saddle legs, 12" X 24" top plate |
A10136 | 30 | 16 X 38 | 200 | Saddle legs, 12" X 40" extended top plate |
A10029 | 60 | 20 X 48 | 200 | Saddle legs |
A10029-300 | 60 | 20 X 48 | 300 | Saddle legs |
A10030 | 60 | 20 X 48 | 200 | Saddle legs, 14" X 30" top plate |
A10137 | 60 | 20 X 48 | 200 | Saddle legs, 16" X 50" extended top plate |
A10031 | 80 | 20 X 63 | 200 | Saddle legs |
A10031-300 | 80 | 20 X 63 | 300 | Saddle legs |
A10032 | 80 | 20 X 63 | 200 | Saddle legs, 12" X 34" top plate |
A10138 | 80 | 20 X 63 | 200 | Saddle legs, 16" X 66" extended top plate |
A10033 | 120 | 24 X 67 | 200 | Saddle legs |
A10034 | 120 | 24 X 67 | 200 | Saddle legs, 18" X 44" top plate |
A10139 | 120 | 24 X 67 | 200 | Saddle legs, 16" X 74" extended top plate |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
Medium Horizontal Tank Technical Specifications
Part Number | Gallons | Size | Pressure | Supports & Attachments |
---|---|---|---|---|
A10035 | 200 | 30 X 72 | 200 | Saddle legs |
A10036 | 200 | 30 X 72 | 200 | Saddle legs, 18" X 44" top plate |
A10140 | 200 | 30 X 72 | 200 | Saddle legs, 18" X 86" top plate |
A10037 | 240 | 30 X 84 | 200 | Saddle legs |
A10038 | 240 | 30 X 84 | 200 | Saddle legs, 18" X 48" top plate |
A10141 | 240 | 30 X 84 | 200 | Saddle legs, 18" X 96" extended top plate |
A10346 | 400 | 36 X 93 | 165 | Saddle legs |
A10348 | 400 | 36 X 93 | 200 | Saddle legs |
A10352 | 500 | 36 X 117 | 165 | Saddle legs |
A10354 | 500 | 36 X 117 | 200 | Saddle legs |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
Large Horizontal Tank Technical Specifications
Part Number | Gallons | Size | Pressure | Supports & Attachments |
---|---|---|---|---|
A10358 | 660 | 42 X 120 | 150 | Saddle legs |
C103084 | 660 | 42 X 120 | 200 | Saddle legs |
A10368 | 1060 | 48 X 144 | 155 | Saddle legs |
A10368-200 | 1060 | 48 X 144 | 200 | Saddle legs |
C102285 | 1550 | 54 X 166 | 165 | Saddle legs |
A10665 | 2000 | 60 X 174 | 150 | Saddle legs |
A10392 | 2560 | 60 X 220 | 150 | Saddle legs |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
Grasshopper Tank Technical Specifications
Part Number | Gallons | Size | Pressure | Supports & Attachments |
---|---|---|---|---|
A10123 | 30 | 16 X 38 | 200 | Grasshopper / Pedestal |
A10124 | 60 | 20 X 48 | 200 | Grasshopper / Pedestal |
A10125 | 80 | 20 X 63 | 200 | Grasshopper / Pedestal |
A10126 | 120 | 24 X 67 | 200 | Grasshopper / Pedestal |
A10127 | 200 | 30 X 72 | 200 | Grasshopper / Pedestal |
A10128 | 240 | 30 X 84 | 200 | Grasshopper / Pedestal |
