Many automation and pneumatic systems require high-quality compressed air to operate effectively and safely. Proper air preparation increases the equipment’s lifespan, minimizes energy consumption and reduces the risk of an unexpected mechanical breakdown.
The presence of water vapor is an issue in any compressed air environment. This naturally occurring vapor exists in the hot air that air compressors discharge. When heated air contacts colder surfaces, it forms condensation that can damage equipment. While it’s possible to remove condensate via drains, much of the liquid stays in the air stream. The moisture eventually causes the lubricating oil to break down, creating friction between moving parts and surfaces.
The Benefits of Compressed Air Moisture Separators
A moisture separator is an effective solution for removing water & oil condensate from your air system. When you place one of these units downstream of a refrigerant dryer, air receiver or aftercooler, you can quickly and efficiently alleviate the problem. They rely on centrifugal action produced by a specially designed internal spinner that removes large volumes of condensate.
Fluid Aire Dynamics engineers and manufactures a variety of water separators for air compressors to eliminate your moisture problem. We offer three moisture separator series at competitive prices backed by comprehensive support and service.
THS Series
The Titus THS moisture separator line consists of 10 models that can fit various pipe sizes. They’re available in multiple flow rates to accommodate a wide range of moisture removal applications. You can also select from operating pressures of up to 232 PSIG.

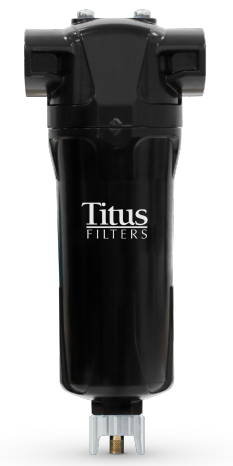

TFX Series
TFX air-water separators help minimize component failure by removing up to 99% of bulk fluid. You’ll experience longer equipment lifespans and lower operating and maintenance costs. The unit’s uniquely designed spinner functions efficiently at low velocities, which saves energy and improves reliability. An external drain makes it easy to service. Choose from 13 models with connections of up to 3 inches and flow rates ranging from 6 SCFM to 1500 SCFM.

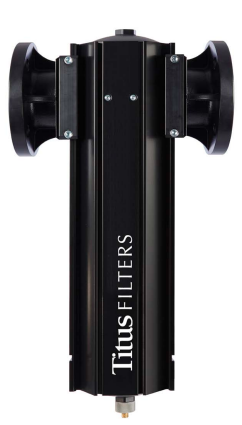

TFM Series
The compact TFM water separator for air compressors features a custom design that prevents low-efficiency points, helping you avoid costly downtime. An innovative centrifugal module removes nearly all bulk water from your air compression system. Multiple connection sizes are available to accommodate virtually any application. The modular construction eliminates the need for replacement parts, resulting in significant long-term cost savings.
Why Choose Fluid Aire Dynamics?
Since our founding in 1986, Fluid Aire Dynamics has provided expert solutions to the most challenging compressed air problems. Our superior capabilities include design, engineering, installation and maintenance of innovative compressed air and gas systems, dryers, chillers, coolers and related equipment. From our Morgantown, PA location, we’re able to serve companies of all sizes in Eastern Pennsylvania, New Jersey, Delaware and beyond.
Contact Us for a Free Quote Today
Give us a call today at 610.913.9100 for more information about Fluid Aire Dynamics/moisture separators and request a no-obligation quote. You can also submit our online contact form, and we’ll provide a prompt response.
THS Series Technical Specifications
Model | Pipe Size | Flow - SCFM | Flow - Nm3/hr |
---|---|---|---|
THS20S | 1/4" NPT | 20 | 35 |
THS30S | 3/8" NPT | 33 | 56 |
THS65S | 1/2" NPT | 66 | 112 |
THS125S | 3/4" NPT | 127 | 216 |
THS175S | 1" NPT | 176 | 300 |
THS300S | 1-1/4" NPT | 318 | 540 |
THS425S | 1-1/2" | 427 | 725 |
THS675S | 2" NPT | 675 | 1150 |
THS1000S | 2-1/2" NPT | 1000 | 1700 |
THS1500S | 3" NPT | 1500 | 2550 |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
TFX Series Technical Specifications
Model | Pipe Size - inches | Inlet Flow Rate - SCFM | Inlet Flow Rate - Nm3/hr | Dimensions - inches | Dimensions - mm | Weight - lbs | Weight - Kg |
---|---|---|---|---|---|---|---|
TFX0006S | 1/8 | 6 | 10 | 1.97 x 0.67 x 6.18 x 2.36 | 50 x 17 x 157 x 60 | 0.6 | 0.3 |
TFX0015S | 1/4 | 15 | 25 | 1.97 x 0.67 x 6.18 x 2.36 | 50 x 17 x 157 x 60 | 0.6 | 0.3 |
TFX0025S | 1/4 | 25 | 42 | 2.76 x 0.94 x 9.09 x 2.76 | 70 x 24 x 231 x 70 | 1.3 | 0.6 |
TFX0035S | 3/8 | 35 | 59 | 2.76 x 0.94 x 9.09 x 2.76 | 70 x 24 x 231 x 70 | 1.3 | 0.6 |
TFX0050S | 1/2 | 50 | 85 | 2.76 x 0.94 x 9.09 x 2.76 | 70 x 24 x 231 x 70 | 1.3 | 0.6 |
TFX0070S | 1/2 | 70 | 119 | 5.00 x 1.26 x 11.22 x 3.15 | 127 x 32 x 285 x 80 | 3.7 | 1.7 |
TFX0125S | 3/4 | 125 | 212 | 5.00 x 1.26 x 11.22 x 3.15 | 127 x 32 x 285 x 80 | 3.7 | 1.7 |
TFX0175S | 1 | 175 | 297 | 5.00 x 1.26 x 11.22 x 3.15 | 127 x 32 x 285 x 80 | 3.7 | 1.7 |
TFX0280S | 1 1/4 | 280 | 476 | 6.69 x 2.08 x 20.00 x 3.94 | 170 x 53 x 508 x 100 | 10.8 | 4.9 |
TFX0400S | 1 1/2 | 400 | 680 | 6.69 x 2.08 x 20.00 x 3.94 | 170 x 53 x 508 x 100 | 10.8 | 4.9 |
TFX0700S | 2 | 700 | 1189 | 6.69 x 2.08 x 20.00 x 3.94 | 170 x 53 x 508 x 100 | 10.8 | 4.9 |
TFX0850S | 2 1/2 | 850 | 1444 | 8.66 x 2.75 x 16.54 x 3.94 | 220 x 70 x 420 x 100 | 17.6 | 8.0 |
TFX1500S | 3 | 1500 | 2550 | 8.66 x 2.75 x 16.54 x 3.94 | 220 x 70 x 420 x 100 | 17.6 | 8.0 |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
TFM Series Technical Specifications
Model | Pipe Size | Inlet Flow Rate - SCFM | Inlet Flow Rate - Nm3/hr | Dimensions - inches | Dimensions - mm | Weight - lbs | Weight - Kg |
---|---|---|---|---|---|---|---|
TFM0700S | 2" | 700 | 1189 | 9.13 x 4.57 x 25.59 x 11.81 | 232 x 116 x 650 x 300 | 26.0 | 11.8 |
TFM0850S | 2 1/2" | 850 | 1444 | 9.13 x 4.57 x 25.59 x 11.81 | 232 x 116 x 650 x 300 | 26.0 | 11.8 |
TFM1500S | 3" | 1500 | 2550 | 9.13 x 4.57 x 25.59 x 11.81 | 232 x 116 x 650 x 300 | 26.0 | 11.8 |
TFM1500FS | 3" flanged | 1500 | 2550 | 13.86 x 4.57 x 25.59 x 11.81 | 352 x 116 x 650 x 300 | 34.6 | 15.7 |
TFM3000S | 4" flanged | 3000 | 5097 | 18.00 x 4.57 x 25.59 x 11.81 | 457 x 116 x 650 x 300 | 64.6 | 29.3 |
