AKG Industrial Heat Exchangers

AC Series Air-cooled Oil & Bypass Coolers

AKG Classic Series is a standard line of products from the market leader in high-performance aluminum cooling systems. AKG is best known for its world-wide presence, German engineering and extremely reliable product quality on the one hand and very competitive prices on the other hand. The Classic series consists of different models for mobile and stationary applications and are available through our global dealer network. This line of products embraces complete cooling systems that comply with both European and American standards, is suited for normal or rugged environmental operating conditions, and is powered by AC-, DC or hydraulic-motor-driven fans and is also available with noise-optimized models. All of AKG’s solutions have been developed with state-of-the-art technology, produced in compliance with the highest quality standards and are comprehensively tested in the company’s own research and test facility.

FEATURES:

  • High-Performance cooling assemblies
  • AC-motor powered fan
  • The heat is transferred from the medium to be cooled to the ambient air
  • Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
  • For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50 percent of antifreeze and anti-corrosive additives (other media available).
  • Can be exposed to operating pressures of up to 17 bar.

BENEFITS:

  • Highly flexible complete, ready-to-use cooling packages
  • Compact and robust design, field-tested during many years of use in rugged real-life conditions
  • Largest and most comprehensive series of industrial coolers • Best heat transfer results per given coolers size due to comprehensive research and development
  • Highest quality due to professional engineering and inhouse manufacturing • Available from stock or at short notice
  • As a standard, equipped with AKG’s patented double-life hollow sections designed to increase cooler service life
  • Noise-optimized models available (low-noise series)

AKG AC Series Air-cooled Oil & Bypass Coolers

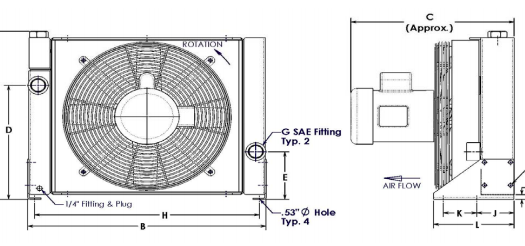

ACD Series Dirty Environment Air-cooled Oil & Bypass Coolers

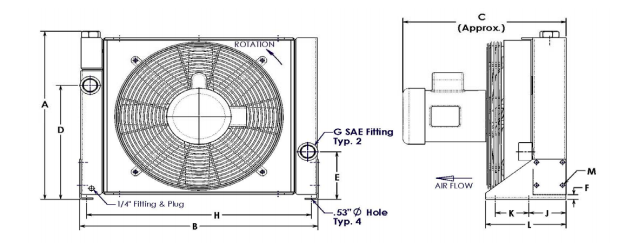

AKG_ACD Series Dirty Environment Air-cooled Oil & Bypass Coolers

AKG/P Series Water-cooled Oil Coolers

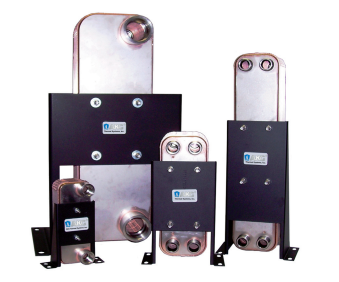

AKG/P Series coolers are a standard line of stainless steel brazed plate water-cooled heat exchangers from the market leader in high-performance cooling systems. The AKG/P Series coolers consist of different cooler models that are capable of cooling a wide variety of different fluids for mobile and stationary applications. All of AKG’s solutions have been developed with state-of-the-art technology, produced in compliance with the highest quality standards and comprehensively tested in the company’s own research and test facility.

FEATURES:

  • High-Performance Stainless Steel Braze Plate coolers provide high rates of heat transfer requiring less surface area than conventional shell and tube heat exchangers.
  • Both AKG/P Series models have threaded studs for cooler mounting. Optional mounting bracket available for P Series coolers and is provided with AKG Series coolers.
  • AKG/P Series braze plate coolers can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
  • Thin corrugated stainless steel plates are vacuum brazed together to form a very durable, self-contained integral unit that can withstand both high pressure and high temperature.
  • Can be exposed to operating pressures up to 435 PSI and temperatures up to 450° F.
  • AKG Series braze plate coolers are designed for oil cooling in that SAE connections are standard on all AKG Series models. Oil and water connections are on opposite sides reducing piping requirements. P Series coolers have 4 NPT connections on front side of cooler.

AKG/P Series Water-cooled Oil Coolers

C Series TEFC Motor Fan Driven Oil Coolers

AKG Classic Series is a standard line of products from the market leader in high-performance aluminum cooling systems. AKG is best known for its world-wide presence, German engineering and extremely reliable product quality on the one hand and very competitive prices on the other hand. The Classic series consists of different models for mobile and stationary applications and are available through our global dealer network. This line of products embraces complete cooling systems that comply with both European and American standards, is suited for normal or rugged environmental operating conditions, and is powered by AC-, DC or hydraulic-motor-driven fans and is also available with noise-optimized models. All of AKG’s solutions have been developed with state-of-the-art technology, produced in compliance with the highest quality standards and are comprehensively tested in the company’s own research and test facility.

FEATURES:

  • High-Performance cooler
  • The heat is transferred from the medium to be cooled to the ambient air
  • Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
  • For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50 percent of antifreeze and anti-corrosive additives (other media available).
  • Can be exposed to operating pressures of up to 17 bar.

BENEFITS:

  • Largest and most comprehensive series of remote mount coolers
  • Highly flexible complete, ready-to-use cooling packages
  • Compact and robust design, field-tested during many years of use in rugged real-life conditions
  • Best heat transfer results per given coolers size due to comprehensive research and development
  • Highest quality due to professional engineering and inhouse manufacturing • Available from stock or at short notice
  • As a standard, equipped with AKG’s patented double-life hollow sections designed to increase cooler service life
  • As a standard, equipped with anti-clogging cooling air fins

AKG C Series TEFC Motor Fan Driven Oil Coolers

Request Information

AC Series Technical Specifications

Model SizeHP
RPM
Motor FrameVoltage (3 Phase)HzFull Load Amps 230V.Approx Noise Level (dB(A),1m)Working Pressure (psi)Approx Shipping Weight (lbs.)
AC81/3
3430
IEC 63230/460601.18025045
ACL81/4
1655
IEC 63200/400501.26525045
AC161/2
3410
IEC 71230/460601.68525055
ACL161/3
1705
IEC 71200/400501.47325055
AC301/2
1725
NEMA 56C208-230/460602.085250125
ACL301/2
1140
NEMA 56C208-230/460602.475250125
AC401
1725
NEMA 56C208-230/460603.888250163
ACL401/2
1140
NEMA 56C208-230/460602.479250163
AC702
1725
NEMA 56C208-230/460606.293250240
ACL703/4
1140
NEMA 56C208-230/460603.083250240
AC1005
1750
NEMA 184TC208-230/460
190/380
6014.094250405
ACL1001.5
1140
NEMA 56C208-230/460
190/380
505.786250405
AC1307.5
1760
NEMA 213TC208-230/460
190/380
6024.096250420
ACL1302
1170 N
NEMA 184TC208-230/460
190/380
507.488250420
AC1607.5
1760
NEMA 213TC208-230/460
190/380
6024.098250545
ACL1605
1170
NEMA 215TC208-230/460
190/380
5019.889250545
AC25010
1750
NEMA 215TC208-230/460
190/380
6029.0101250688
ACL2505
1170
NEMA 215TC208-230/460
190/380
5019.892250688



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

ACD Series Technical Specifications

Model NumberDimensionsSAEApprox Net WeightApprox Shipping Weight
ACD 812.83 x 16.20 x 15.00 x 6.61 x 3.31 x 0.55#16 SAE 1 5/16-12 UN-2B3647
ACD 1616.72 x 20.15 x 15.70 x 10.47 x 3.31 x 0.55#16 SAE 1 5/16-12 UN-2B4757
ACD 3021.26 x 26.65 x 17.76 x 14.49 x 6.02 x 0.59#20 SAE 1 5/8-12 UN-2B92127
ACD 40 23.11 x 30.59 x 18.74 x 16.39 x 6.02 x 0.59#20 SAE 1 5/8-12 UN-2B127165
ACD 7028.94 x 39.53 x 22.28 x 19.84 x 9.92 x 2.132" SAE 4-Bolt FLANGE197242
ACD 10037.48 x 43.46 x 24.57 x 29.52 x 9.06 x 2.132" SAE 4-Bolt FLANGE352407
ACD 13039.37 x 45.33 x 29.75 x 31.14 x 9.04 x 2.112" SAE 4-Bolt FLANGE368423
ACD 16045.34 x 51.24 x 30.22 x 34.49 x 11.02 x 1.403" SAE 4-Bolt FLANGE483548
ACD 25059.76 x 53.01 x 30.55 x 43.62 x 17.56 x 2.043" SAE 4-Bolt FLANGE603691



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

P Series Technical Specifications

Model SizeMaximum Working PressureMaximum Working TemperatureDimensionsNPTSAEWeight Empty (lbs)
AKG/P400435 PSI450° F3.18 x 8.45 x 6.77 x 1.65 x (.078 X N) + .4 x 0.95 x 0.953/4“#81.5 + (.13 X N)
AKG/P410435 PSI450° F4.4 x 12.2 x 9.84 x 1.97 x (.097 X N) + .4 x 0.95 x 0.951“#162.6 + (.29 X N)
AKG/P415435 PSI450° F4.4 x 20.7 x 18.35 x 1.97 x (.097 X N) + .4 x 0.95 x 0.951“#164.2 + (.51 X N)
AKG/P422435 PSI450° F7.5 x 24.3 x 20.43 x 3.62 x (.1151 X N) + .4 x 1.9 x 1.92“#3215.4 + (.97 X N)



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

C Series Technical Specifications

Model SizeMaximum Working PressureMaximum Working TemperatureDimensionsSAEApprox Shipping
C-8250 PSI250°F3.00 x 5.60 x 6.57-10.00
C-14250 PSI250°F6.00 x 9.88 x 10.88-14.00
C-20250 PSI250°F10.00 x 14.17 x 15.17-18.00
C-12250 PSI250°F13.78 x 11.61 x 9.88 x 9.84 x 10.74 x 4.41 x 4.96 1.00#1215.00
C-18250 PSI250°F15.75 x 13.47 x 11.73 x 11.81 x 12.68 x 4.96 x 5.87 x 1.00#1618.00
C-32250 PSI250°F19.68 x 18.31 x 16.02 x 15.75 x 17.20 x 3.86 x 12.00 x 1.58#2028.00
C-48250 PSI250°F23.62 x 22.00 x 19.72 x 19.69 x 20.91 x 3.82 x 8.00 x 1.58#2041.00
C-66250 PSI250°F27.56 x 25.74 x 23.46 x 23.62 x 24.72 x 3.78 x 10.00 x 1.58#2050.00
C-82250 PSI250°F31.50 x 27.60 x 25.39 x 27.56 x 26.50 x 5.75 x 10.00 x 1.58#2465.00
C-120250 PSI250°F31.50 x 38.66 x 36.38 x 27.56 x 37.55 x 5.75 x 10.00 x 1.58#2488.00



Product Catalogs & Spec Sheet Downloads

Manufacturer Link
