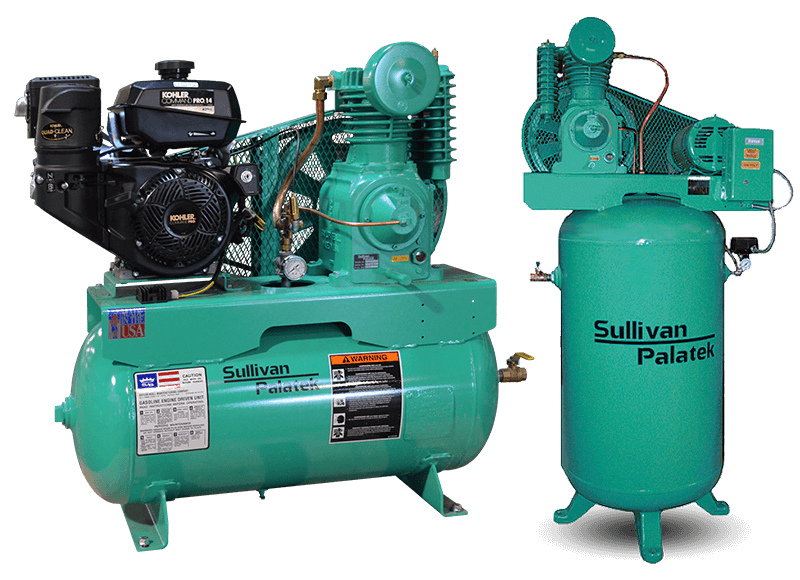

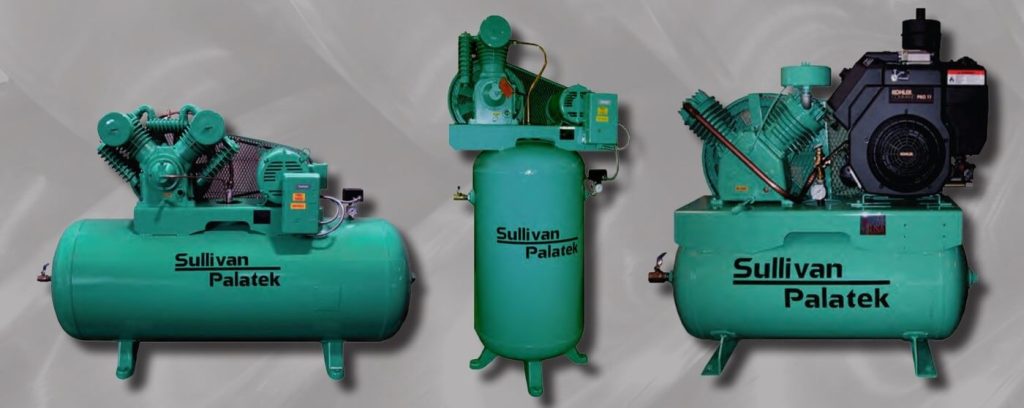

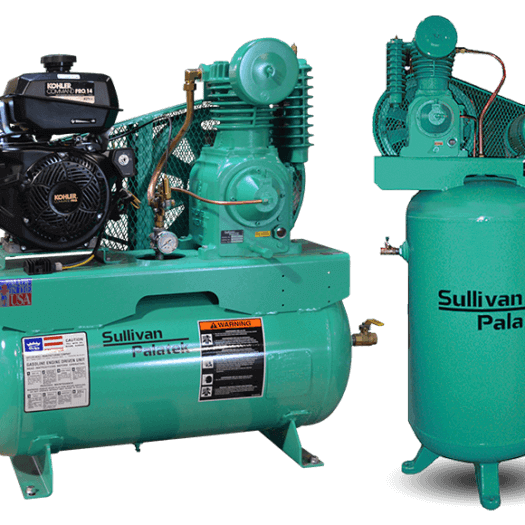

Sullivan-Palatek Lubricated Reciprocating Air Compressors
Lubricated reciprocating air compressors rely on lubricating oil to ensure the smooth operation of the rotary element or piston. The oil also maximizes air compression efficiency and helps dispel heat that could damage the equipment. Both electric motor and gas-driven piston compressors are available.
Fluid Aire Dynamics is your one-stop headquarters for a wide variety of Sullivan-Palatek lubricated reciprocating air compressors. Sullivan-Palatek has been designing and manufacturing innovative air compression products since 1984. We also provide comprehensive installation, repair and maintenance service for all the Sullivan-Palatek equipment we sell.
Sullivan-Palatek’s horizontal and vertical 60, 80, and 120-gallon tank-mounted gas-driven piston and electric compressors are ranked among the industry’s top industrial air compressors. They come with a wide range of options, so you can get the most out of your equipment:
- Magnetic Starter
- Dual Control
- Water Cooled Aftercoolers
- Air Cooled Aftercoolers
- 4906 Automatic Tank Drain
- 6532 Y-Strainer
- 6304 Low Oil Control
- Vibration Isolator Pads
- Crankcase Heater
- Flex Hose Air Intake Muffler
- Oil Bath Intake Filter Assembly
- Spin-On Oil
- Filter Pressure Regulator Valve
- Massachusetts Specification Fittings
- Pedestals
Typical Applications
Lubricated reciprocating air compressors are an ideal choice for industrial applications such as:
- Automotive:Meets the needs of auto and truck repair shops and body shops
- Paper and pulp: Helps improve air quality and prevent moisture damage
- Chemical plants:Increases safety and efficiency when working with toxic chemicals and combustible gases
- Plastics: Provides the consistent, reliable and precise power required for various plastics and injection molding manufacturing processes
Choose From Several Types of Lubricated Reciprocating Air Compressors
Fluid Aire Dynamics has several series of Sullivan-Palatek lubricated reciprocating air compressors to meet the requirements of any industrial application.

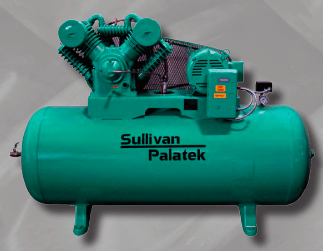

SPHT Series
The SPHT Series consists of six models with power outputs ranging from 5 to 10 hp. Available airflow options are 17.3, 26.9 and 34.4 cfm.
- Horizontal Tank
- Electric Motor Driven
- 80 or 120 Gallon Tank

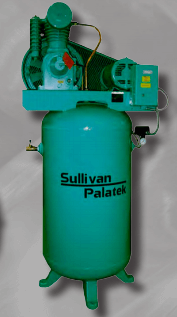

SPVT Series
The SPVT Series consists of vertical tank lubricated reciprocating air compressors that come in four model options while offering the same tank sizes and cfm capacities as their SPHT counterparts.
- Vertical Tank
- Electric Motor Driven
- 80 or 120 Gallon Tank
SPDO Series
The compressors in the SPDO Series feature powerful yet efficient Dura-Line motors and come in horizontal and vertical tank options. Horsepower choices include 5 and 7.5 hp and available cfm capacities are 16 and 25.5.
- Horizontal & Vertical Tank
- Dura-Line
- 80 Gallon Tank
SPUL Series
The SPUL753 is an engine-driven air compressor with an 11 hp gas motor and a capacity of 18.8 cfm. The 705 pump model products 900 rpm.
- Horizontal Tank
- Engine Driven
- 30 Gallon Tank
Why Choose Us for Sullivan-Palatek Lubricated Air Compressors?
Fluid Aire Dynamics is a Morgantown, PA-based supplier of high-quality air compression equipment, air dryers, gas generators, blowers, vacuums and related products. Since 1986, we’ve been partnering with companies of all sizes throughout Eastern Pennsylvania, Delaware, New Jersey and beyond to provide reliable, cost-effective compressed air and gas solutions like Sullivan-Palatek lubricated air compressors.
We support our air compressors and other products with a host of services:
- System installation: Our highly trained technicians will install your compressor to comply with Sullivan-Palatek’s specifications.
- Repairs: We’re available around the clock to provide prompt repair service. Our goal is to minimize unproductive downtime resulting from an air compressor issue.
- Preventative maintenance: With scheduled maintenance from Fluid Aire Dynamics, your equipment will remain in peak operating condition and you’ll have fewer worries about unexpected mechanical breakdowns.
Contact Fluid Aire Dynamics Today
For more information about the Sullivan-Palatek lubricated reciprocating air compressor lineup and to receive a free quote, give us a call at 610.913.9100 or contact us online today.
SPHT Series Technical Specifications
Model | Type | Tank Size | Motor HP | Pump RPM | Capacity (CFM) | Pump Model | Dimensions | Shipping Weight | Boltdown |
---|---|---|---|---|---|---|---|---|---|
SPHT 735-80 | Electric Motor | 80 Gallon Horizontal | 5 HP | 845 | 17.3 | 705 | 63x21x47 | 668 | 40x19 |
SPHT 735-120 | Electric Motor | 120 Gallon Horizontal | 5 HP | 845 | 17.3 | 705 | 69x24x51 | 794 | 40x19 |
SPHT 745-80 | Electric Motor | 80 Gallon Horizontal | 7.5 HP | 655 | 26.9 | 707 | 63x21x47 | 770 | 40x19 |
SPHT 745-120 | Electric Motor | 120 Gallon Horizontal | 7.5 HP | 655 | 26.9 | 707 | 69x24x51 | 875 | 40x19 |
SPHT 755-80 | Electric Motor | 80 Gallon Horizontal | 10 HP | 845 | 34.4 | 707 | 63x21x47 | 790 | 40x19 |
SPHT 755-120 | Electric Motor | 120 Gallon Horizontal | 10 HP | 845 | 34.4 | 707 | 69x24x51 | 915 | 40x19 |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
SPVT Technical Specifications
Model | Type | Tank Size | Motor HP | Pump RPM | Capacity (CFM) | Pump Model | Dimensions | Shipping Weight | Boltdown |
---|---|---|---|---|---|---|---|---|---|
SPVT 735-80 | Electric Motor | 80 Gallon Vertical | 5 HP | 845 | 17.3 | 705 | 34x29x74 | 688 | 26x26 |
SPVT 735-120 | Electric Motor | 120 Gallon Vertical | 5 HP | 845 | 17.3 | 705 | 34x30x77 | 840 | 26x26 |
SPVT 745-120 | Electric Motor | 120 Gallon Vertical | 7.5 HP | 655 | 26.9 | 707 | 44x30x75 | 955 | 26x26 |
SPVT 755-120 | Electric Motor | 120 Gallon Vertical | 10 HP | 845 | 34.4 | 707 | 44x30x75 | 975 | 26x26 |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
SPDO Technical Specifications
Model | Type | Tank Size | Motor HP | Pump RPM | Capacity (CFM) | Pump Model | Dimensions | Shipping Weight | Boltdown |
---|---|---|---|---|---|---|---|---|---|
SPDO5801H | Dura Line | 80 Gallon Horizontal | 5 HP | 995 | 16.0 | DOT5 | 63x21x47 | 525 | 40x19 |
SPDO7803H | Dura Line | 80 Gallon Horizontal | 7.5 HP | 995 | 25.5 | DOT7 | 63x21x47 | 628 | 40x19 |
SPDO5801V | Dura Line | 80 Gallon Vertical | 5 HP | 995 | 16.0 | DOT5 | 34x29x74 | 525 | 26x26 |
SPDO7803V | Dura Line | 80 Gallon Vertical | 7.5 HP | 995 | 25.5 | DOT7 | 34x29x74 | 628 | 26x26 |
SPDO1330GH | Engine Driven | 30 Gallon Horizontal | 13GAS | 995 | 16.0 | DOT5 | 45x19x43 | 440 | 28x14 |
Product Catalogs & Spec Sheet Downloads
Manufacturer Link
SPUL Technical Specifications
Model | Type | Tank Size | Motor HP | Pump RPM | Capacity (CFM) | Pump Model | Dimensions | Shipping Weight | Boltdown |
---|---|---|---|---|---|---|---|---|---|
SPUL753 | Engine Driven | 30 Gallon Horizontal | 11GAS | 900 | 18.8 | 705 | 45x19x43 | 583 | 28x14 |
