# Boge Oil-Free Rotary Screw Air Compressors

## Boge SO Series 60-480 HP Overview

The BOGE SO Series of oil-free rotary screw air compressors features variable drives and air or water-cooled models. This series is an affordable, reliable way to safely produce the oil-free compressed air you need for your applications in any industry.

## Advantages of the BOGE SO Series

There are numerous advantages to the BOGE SO Series oil-free air compressor, including:

- Ability to integrate heat recovery
- Superior efficiency
- Prime control
- Access to a continuous stream of high-pressure, oil-free compressed air

## SO Series Features and Capabilities

The SO Series has many desirable features designed to help you save money through superior energy efficiency while meeting your high-pressure air needs. These features include:

The SO Series’ radial fan generates tremendous suction so you can connect longer air ducts. The whisper-quiet radial fan cools much more efficiently than standard axial fans, saving you on energy costs.**Radial fan for cowl ventilation:**The BOGE SO Series is ideal for customers looking to increase profits and reduce costs. Each machine contains a premium efficiency-class IE3 motor, saving you energy throughout use.**Efficient IE3 motor:**The SO Series contains a low-power-consuming two-stage airend (low-pressure stage/high-pressure stage). These compressors also feature a corrosion-resistant compound coating on the rotors.**Highly efficient compressors:**Choose a variable speed machine to allow the compressor capacity to adjust to your specific air compressor needs.**Variable speed option:**

## Industrial Applications for the BOGE SO Series Rotary Screw Air Compressor

A variety of industries use the BOGE SO Series oil-free rotary screw air compressor, including:

Manufacturing sensitive electronic components like semiconductors requires clean compressed air.**Electronics manufacturing:**Whether you grow, engineer, distribute or repackage food or beverage products, uncontaminated air is crucial. Your BOGE SO Series compressor provides oil-free air for packaging, capping, cleaning and more.**Food and beverage:**Pharmaceutical products are produced, assembled and packaged in environments that must be free from contamination. Rely on the BOGE SO Series when you need an oil-free air compressor for applications like removing moisture to prevent powder tablets from losing adhesion.**Pharmaceuticals:**Air compressors in power plants are constantly in use, so the ability to save on energy costs is crucial.**Power plants:**

## Why Choose Fluid Aire Dynamics for BOGE SO Series Compressor Products?

When you need a cost-effective, energy-efficient oil-free air compressor, turn to Fluid Aire Dynamics. With 30 years of experience, we can help you get exactly what you need in a high-quality air compressor. We offer support, monitoring, maintenance, installation and repair services to make your experience as smooth and easy as possible.

To get started, fill out our contact form or give us a call at 610.913.9100.

### BOGE SO Series Video

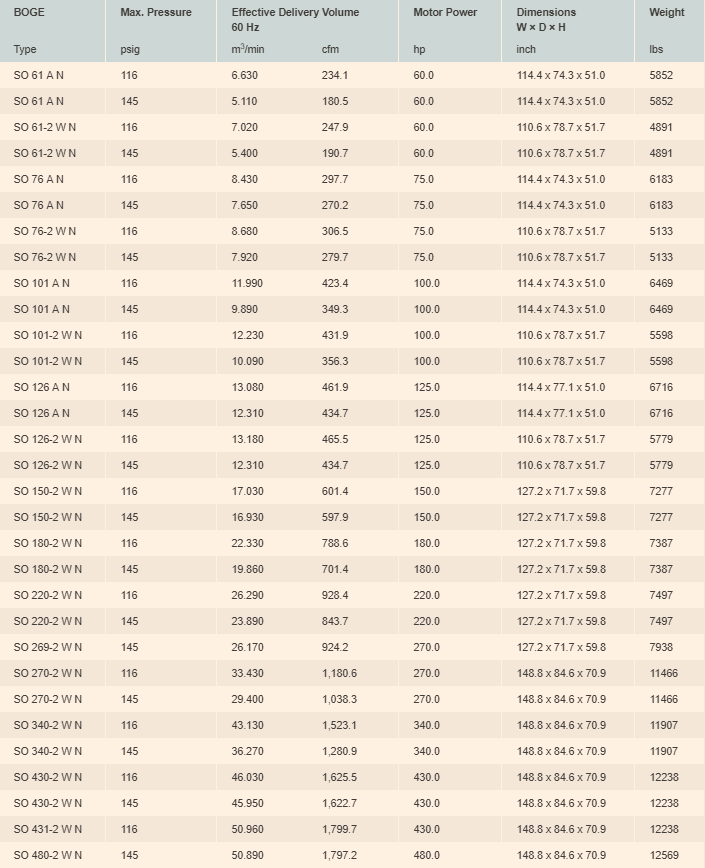

## SO 480 hp Series Technical Specifications

BOGEType | Max. Pressure psig | Effective Delivery Volume 60 Hzm3/min | Effective Delivery Volume 60 Hzcfm | Motor Powerhp | DimensionsW x D x H inch | Weightlbs |
---|---|---|---|---|---|---|

SO 61 A N | 116 | 6.630 | 234.1 | 60.0 | 114.4 x 74.3 x 51.0 | 5852 |

SO 61 A N | 145 | 5.110 | 180.5 | 60.0 | 114.4 x 74.3 x 51.0 | 5852 |

SO 61-2 W N | 116 | 7.020 | 247.9 | 60.0 | 110.6 x 78.7 x 51.7 | 4891 |

SO 61-2 W N | 145 | 5.400 | 190.7 | 60.0 | 110.6 x 78.7 x 51.7 | 4891 |

SO 76 A N | 116 | 8.430 | 297.7 | 75.0 | 114.4 x 74.3 x 51.0 | 6183 |

SO 76 A N | 145 | 7.650 | 270.2 | 75.0 | 114.4 x 74.3 x 51.0 | 6183 |

SO 76-2 W N | 116 | 8.680 | 306.5 | 75.0 | 110.6 x 78.7 x 51.7 | 5133 |

SO 76-2 W N | 145 | 7.920 | 279.7 | 75.0 | 110.6 x 78.7 x 51.7 | 5133 |

SO 101 A N | 116 | 11.990 | 423.4 | 100.0 | 114.4 x 74.3 x 51.0 | 6469 |

SO 101 A N | 145 | 9.890 | 349.3 | 100.0 | 114.4 x 74.3 x 51.0 | 6469 |

SO 101-2 W N | 116 | 12.230 | 431.9 | 100.0 | 110.6 x 78.7 x 51.7 | 5598 |

SO 101-2 W N | 145 | 10.090 | 356.3 | 100.0 | 110.6 x 78.7 x 51.7 | 5598 |

SO 126 A N | 116 | 13.080 | 13.080 | 125.0 | 114.4 x 77.1 x 51.0 | 6716 |

SO 126 A N | 145 | 12.310 | 434.7 | 125.0 | 114.4 x 77.1 x 51.0 | 6716 |

SO 126-2 W N | 116 | 13.180 | 465.5 | 125.0 | 110.6 x 78.7 x 51.7 | 5779 |

SO 126-2 W N | 145 | 12.310 | 434.7 | 125.0 | 110.6 x 78.7 x 51.7 | 5779 |

SO 150-2 W N | 116 | 17.030 | 601.4 | 150.0 | 127.2 x 71.7 x 59.8 | 7277 |

SO 150-2 W N | 145 | 16.930 | 597.9 | 150.0 | 127.2 x 71.7 x 59.8 | 7277 |

SO 180-2 W N | 116 | 22.330 | 788.6 | 180.0 | 127.2 x 71.7 x 59.8 | 7387 |

SO 180-2 W N | 145 | 19.860 | 701.4 | 180.0 | 127.2 x 71.7 x 59.8 | 7387 |

SO 220-2 W N | 116 | 26.290 | 928.4 | 220.0 | 127.2 x 71.7 x 59.8 | 7497 |

SO 220-2 W N | 145 | 23.890 | 843.7 | 220.0 | 127.2 x 71.7 x 59.8 | 7497 |

SO 269-2 W N | 145 | 26.170 | 924.2 | 270.0 | 127.2 x 71.7 x 59.8 | 7938 |

SO 270-2 W N | 116 | 33.430 | 1,180.6 | 270.0 | 148.8 x 84.6 x 70.9 | 11466 |

SO 270-2 W N | 145 | 29.400 | 1,038.3 | 270.0 | 148.8 x 84.6 x 70.9 | 11466 |

SO 340-2 W N | 116 | 43.130 | 1,523.1 | 340.0 | 148.8 x 84.6 x 70.9 | 11907 |

SO 340-2 W N | 145 | 36.270 | 1,280.9 | 340.0 | 148.8 x 84.6 x 70.9 | 11907 |

SO 430-2 W N | 116 | 46.030 | 1,625.5 | 430.0 | 148.8 x 84.6 x 70.9 | 12238 |

SO 430-2 W N | 145 | 45.950 | 1,622.7 | 430.0 | 148.8 x 84.6 x 70.9 | 12238 |

SO 431-2 W N | 116 | 50.960 | 1,799.7 | 430.0 | 148.8 x 84.6 x 70.9 | 12238 |

SO 480-2 W N | 145 | 50.890 | 1,797.2 | 480.0 | 148.8 x 84.6 x 70.9 | 12569 |

## Product Catalogs & Spec Sheet Downloads

## Manufacturer Link

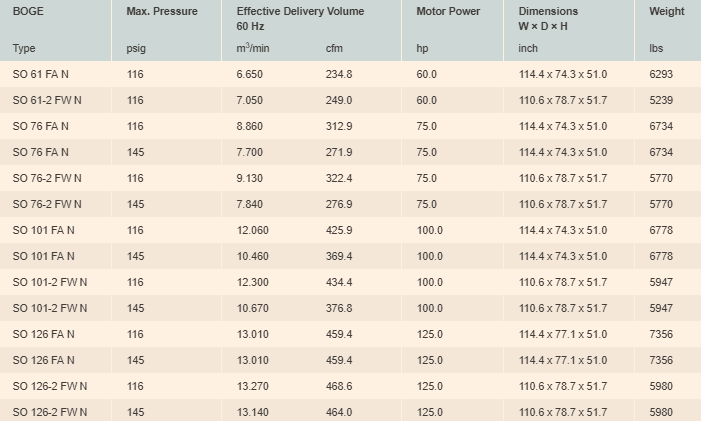

## SO F 122 hp Series Technical Specifications

BOGEType | Max. Pressure psig | Effective Delivery Volume 60 Hzm3/min | Effective Delivery Volume 60 Hzcfm | Motor Powerhp | DimensionsW x D x H Inch | Weight lbs |
---|---|---|---|---|---|---|

SO 61 FA N | 116 | 6.650 | 234.8 | 60.0 | 114.4 x 74.3 x 51.0 | 6293 |

SO 61-2 FW N | 116 | 7.050 | 249.0 | 60.0 | 110.6 x 78.7 x 51.7 | 5239 |

SO 76 FA N | 116 | 8.860 | 312.9 | 75.0 | 114.4 x 74.3 x 51.0 | 6734 |

SO 76 FA N | 145 | 7.700 | 271.9 | 75.0 | 114.4 x 74.3 x 51.0 | 6734 |

SO 76-2 FW N | 116 | 9.130 | 322.4 | 75.0 | 110.6 x 78.7 x 51.7 | 5770 |

SO 76-2 FW N | 145 | 7.840 | 276.9 | 75.0 | 110.6 x 78.7 x 51.7 | 5770 |

SO 101 FA N | 116 | 12.060 | 425.9 | 100.0 | 114.4 x 74.3 x 51.0 | 6778 |

SO 101 FA N | 145 | 10.460 | 369.4 | 100.0 | 114.4 x 74.3 x 51.0 | 6778 |

SO 101-2 FW N | 116 | 12.300 | 434.4 | 100.0 | 110.6 x 78.7 x 51.7 | 5947 |

SO 101-2 FW N | 145 | 10.670 | 376.8 | 100.0 | 110.6 x 78.7 x 51.7 | 5947 |

SO 126 FA N | 116 | 13.010 | 459.4 | 125.0 | 114.4 x 77.1 x 51.0 | 7356 |

SO 126 FA N | 145 | 13.010 | 459.4 | 125.0 | 114.4 x 77.1 x 51.0 | 7356 |

SO 126-2 FW N | 116 | 13.270 | 468.6 | 125.0 | 110.6 x 78.7 x 51.7 | 5980 |

SO 126-2 FW N | 145 | 13.140 | 464.0 | 125.0 | 110.6 x 78.7 x 51.7 | 5980 |
