Atlas Copco Rotary Screw Lubricated Air Compressors

GX Series Compact Screw Compressors

Our oil-injected rotary screw G/GX compressors are powerful and reliable industrial screw compressors. Built from high-quality components and materials, they provide a reliable source of high-quality air in temperatures up to 46°C / 115°F. The compressors are compact, flexible and available in various versions depending on size:

  • floor mounted
  • tank mounted
  • with or without integrated dryer

GA (VSD+) Series Oil-Lubricated Screw Compressors

Our GA oil-injected screw compressors bring industry-leading performance, flexible operation and high productivity, reduced enargy costs at a minimal cost of ownership. A wide range of compressors enables you to find the air solution that perfectly matches your specific requirements. Built to perform in even the harshest environments, an Atlas Copco GA keeps your production running efficiently.

Energy Saving Compressor Solutions

Our larger compressors are all equipped with the Elektronikon® panel, minimizing energy costs through smart technology. We also have a basic controller on our smaller versions, allowing you smart solutions independent of your company size.

Atlas Copco’s VSD⁺ technology closely follows the air demand by automatically adjusting the motor speed to match the compressed air supply to the demand. Combined with the innovative patented iPM (interior Permanent Magnet) motor (IE4), the GA VSD⁺ achieves average energy savings of 50%. This reduces the total lifecycle costs of the compressor up to 37% on average.

On top of energy savings up to 50% , the GA VSD⁺ realizes a Free Air Delivery (FAD) increase of up to 12% for improved efficiency and performance.



Request Information

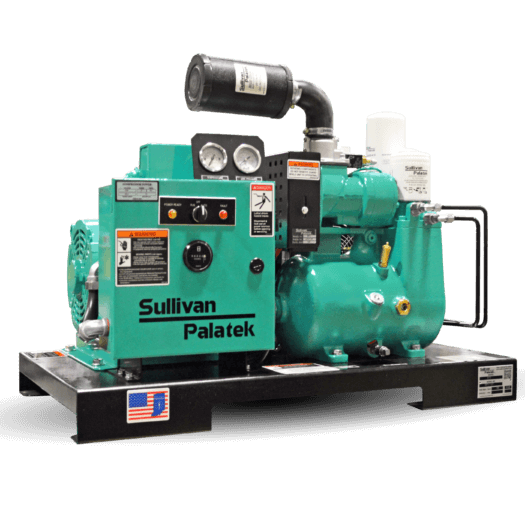

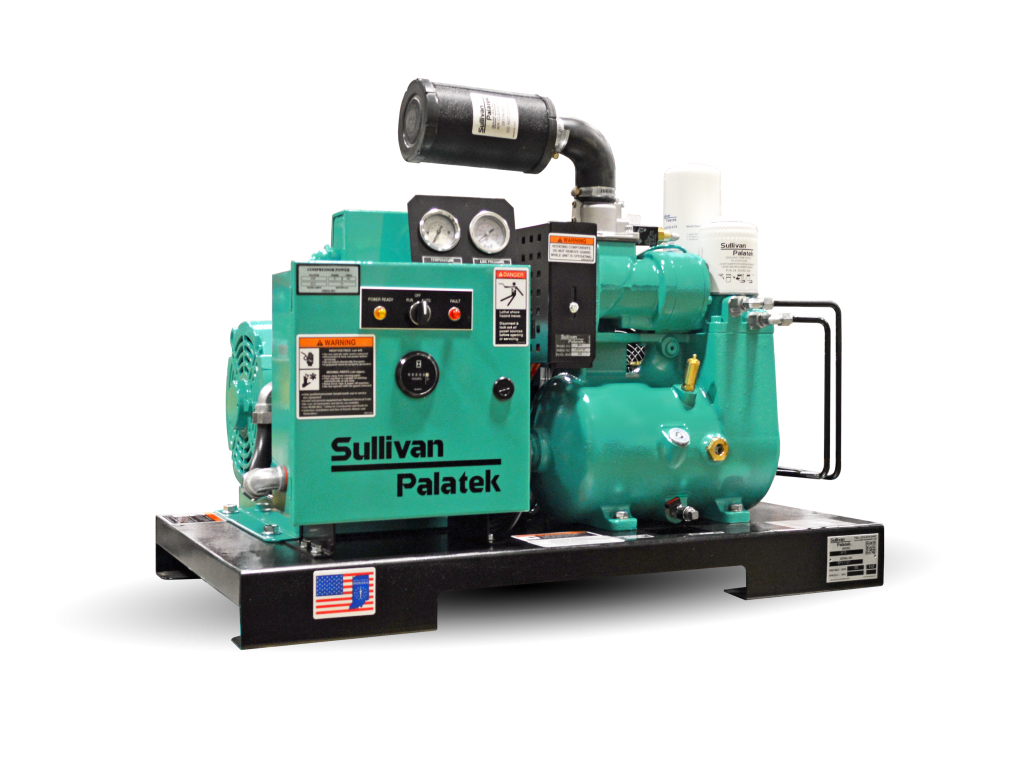

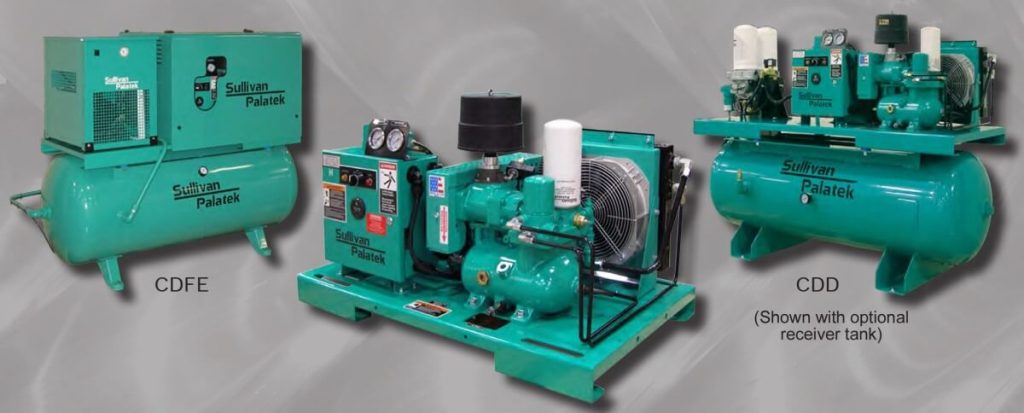

M Series Technical Specifications

Compressor DataUnitsM5HM5HHM5M7.5HM7.5HHM7.5M10HM10HHM10
Capacitycfm221815.529252242.43532
Pressure @ Full Loadpsig (bar)125 (8.6)150 (10.3)175 (12.1)125 (8.6)150 (10.3)175 (12.1)125 (8.6)150 (10.3)175 (12.1)
Minimum Pressurepsig (bar)60 (4.1)60 (4.1)60 (4.1)60 (4.1)60 (4.1)60 (4.1)60 (4.2)60 (4.2)60 (4.2)
Motor Output (60 Hz)hp (kW)5 (3.7)5 (3.7)5 (3.7)7.5 (5.6)7.5 (5.6)7.5 (5.6)10 (7.5)10 (7.5)10 (7.5)
Motor Speedrpm175517551755353035303530351535153515
Motor Output @ Full Loadhp (kW)4.6 (3.4)5.0 (3.7)5.2 (3.9)10.5 (7.8)8.2 (6.1)7.7 (5.7)10.9 (8.1)9.7 (7.2)11.2 (8.4)
Motor Output @ 100 psighp (kW)4.3 (3.2)3.9 (2.9)3.3 (2.5)7.2 (5.4)5.6 (4.2)5.3 (3.9)9.8 (7.3)8.2 (6.2)8.2 (6.2)
Driven Pulley2.652.803.003.353.654.124.755.305.60
Drive Ratio2.262.142.001.791.641.461.261.131.07
Rotor Diametermm606060606060757575
COOLING DATA
Fan Airflowcfm110011001100110011001100110011001100
After Cooler Approach°F (°C) 220 (11)20 (11)20 (11)20 (11)20 (11)20 (11)20 (11)20 (11)20 (11)
Fluid Capacitygallons (L)1 (3.8)1 (3.8)1 (3.8)1 (3.8)1 (3.8)1 (3.8)1.50 (5.7)1.50 (5.7)1.50 (5.7)
SOUND DATA
Air-Cooled (Open)dba @ 1m727272828282828282
Air-Cooled (Enclosed)dba @ 1m686868757575747474
DISCHARGE PIPING
Air-Cooled (Base-Mounted)NPT3/43/43/43/43/43/43/43/43/4
Tank-Mounted (Tank End)NPT222222222
ELECTRICAL DATA
Motor FLA @ 575V (3-Phase)amps5.55.55.56.86.86.89.69.69.6
Motor FLA @ 460V (3-Phase)amps6.66.66.68.68.68.611.611.611.6
Motor FLA @ 230V (3-Phase)amps13.213.213.217.217.217.223.223.223.2
Motor FLA @ 230V (1-Phase)amps20.520.520.5333333464646
Motor FLA @ 208V (3-Phase)amps14.714.714.719191924.524.524.5
Motor FLA @ 208V (1-Phase)amps22.722.722.736.536.536.550.950.950.9
Motor FLA @ 200V (3-Phase)amps15.315.315.319.819.819.825.525.525.5
Starter Enclosure RatingNEMA111111111
Control Voltagevolts115115115115115115115115115
Motor EnclosureNEMAODPODPODPODPODPODPODPODPODP
Motor Insulation ClassNEMAFFFFFFFFF
Motor Service FactorNEMA1.151.151.151.151.151.151.151.151.15
Motor Maximum Starts/Hour15151512121212121212

Product Catalogs & Spec Sheet Downloads

Manufacturer Link



GA VSD+ Technical Specifications

ItemMetricUS/Imperial
Capacity FAD l/s8.4 l/s - 1,410 l/s8.4 gal/min - 1,410 gal/min
Working Pressure7.5 bar(e) - 13 bar(e)107 psig - 200 psig
Installed Motor Power5 kW - 500 kW7.5 HP - 700 HP
Capacity FAD30.2 m³/h - 5,076 m³/h17.7 cfm - 2,988 cfm

Product Catalogs & Spec Sheet Downloads

Manufacturer Link
