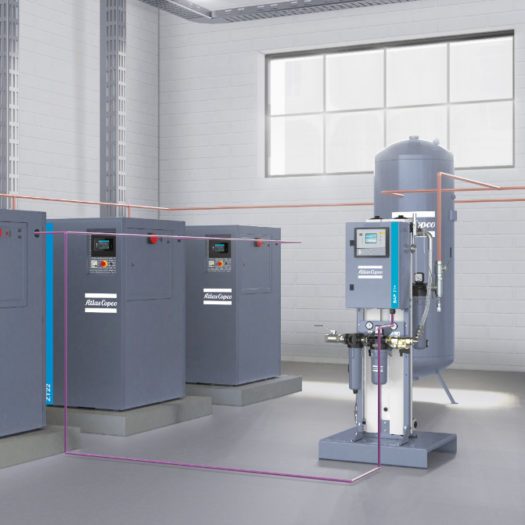

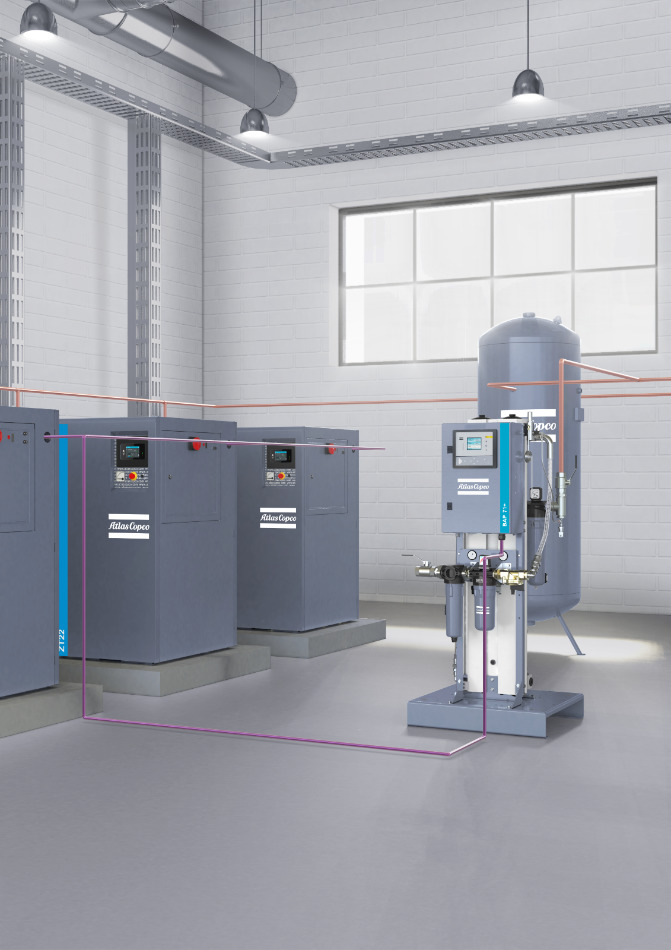

Breathing Air Purifier – BAP(+)
High quality air is of vital importance to many industries but even more in breathing air applications like pharmaceutical manufacturing and spray painting.
BAP’s breathing air complies with International breathing air standards.
Breath-taking air quality
Our BAP(+) breathable air purifiers are designed to offer protection against a range of contaminants that may be present in a compressed air fed breathing air system. These include contaminants such as fumes, oil, vapor, gases, solid particles and micro-organisms. Complying with international breathing air standards, the BAP ranges assures a safe working environment.
Safe working environment everywhere
Complying with International Breath Air Standards, our BAP range assures a safe working environment in a wide range of applications, such as:
- shot-blasting
- tank cleaning
- tunnelling
- pharmaceutical manufacturing
- spray painting
- offshore/marine
- asbestos removal
- high-pressure cylinder filling
BAP Series Technical Specifications
| Type | Inlet pressure - bar(e) | Inlet pressure - psig | Max. inlet flow - l/s | Max. inlet flow - m3/h | Max. inlet flow - cfm | Purge - % | Pressure drop - dP, mbar | Pressure drop - psi | Weight - kg | Dimensions (L x W x H) - mm | Connection |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BAP12 BAP12+ | 7 10 13 | 102 145 188 | 12 16 21 | 43.2 57.6 75.6 | 25.4 33.9 44.5 | 18 13 10 | 646 | 9.36 | 77 106 | 450 x 550 x 1241 700 x 800 x 1580 | 1/2" |
| BAP17 BAP17+ | 7 10 13 | 102 145 188 | 17 23 29 | 61.2 82.8104.4 | 36 48.7 61.4 | 18 13 10 | 926 | 13.4 | 87 116 | 450 x 550 x 1640 700 x 800 x 1640 | 1/2" |
| BAP21 BAP21+ | 7 10 13 | 102 145 188 | 21 29 37 | 75.6 104.4 133.2 | 44.5 61.4 78.4 | 18 13 10 | 722 | 10.4 | 102 131 | 700 x 800 x 1640 700 x 800 x 1640 | 1/2" |
| BAP35 BAP35+ | 7 10 13 | 102 145 188 | 35 49 62 | 126 176.4 223.2 | 74.1 103.8 131.4 | 18 13 10 | 712 | 10.3 | 108 137 | 700 x 800 x 1217 700 x 800 x 1680 | 1" |
| BAP42 BAP42+ | 7 10 13 | 102 145 188 | 42 58 75 | 151.2 208.8 270 | 89 122.9 158.9 | 18 13 10 | 644 | 9.3 | 130 159 | 700 x 800 x 1460 700 x 800 x 1680 | 1" |
| BAP52 BAP52+ | 7 10 13 | 102 145 188 | 52 71 91 | 187.2 255.6 327.6 | 110.2 150.4 192.8 | 18 13 10 | 739 | 10.7 | 184 213 | 700 x 800 x 1517 700 x 800 x 1680 | 1 1/2" |
| BAP71 BAP71+ | 7 10 13 | 102 145 188 | 71 97 124 | 255.6 349.2 446.4 | 150.4 205.5 262.7 | 18 13 10 | 749 | 10.9 | 184 213 | 700 x 800 x 1735 700 x 800 x 1735 | 1 1/2" |
| BAP104 BAP104+ | 7 10 13 | 102 145 188 | 104 142 182 | 374.4 511.2 655.2 | 220.4 300.9 385.6 | 18 13 10 | 914 | 13.3 | 261 290 | 700 x 800 x 1822 700 x 800 x 1778 | 1 1/2" |
| BAP142 BAP142+ | 7 10 13 | 102 145 188 | 142 194 248 | 511.2 698.4 892.8 | 300.9 411 525.5 | 18 13 10 | 1475 | 21.4 | 309 338 | 700 x 800 x 1847 700 x 800 x 1778 | 1 1/2" |
