# Atlas Copco Refrigerated Air Dryers

For a reliable, low-cost moisture-removal system, choose Atlas Copco refrigerated air dryers for air compressors. Industrial refrigerant air dryers such as our Atlas Copco models cool compressed air in an air-to-refrigerant heat exchanger, condensing and draining moisture. At Fluid Aire Dynamics, our selection of dryers includes practical, innovative and dependable models, with a range of essential benefits:

**Reliable system protection:**Our refrigerated air compressor dryers are reliable, affordable and straightforward solutions for avoiding condensation and corrosion in your systems.**Minimal maintenance and maximum uptime:**Atlas Copco refrigerated dryers do not require much maintenance. Therefore, they maximize uptime and reduce operating costs.**Easy installation:**Our industrial refrigerated air dryers allow for easy installation through their plug-and-play feature.

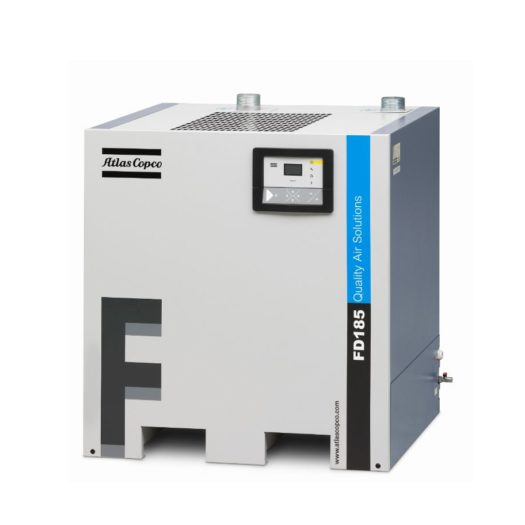

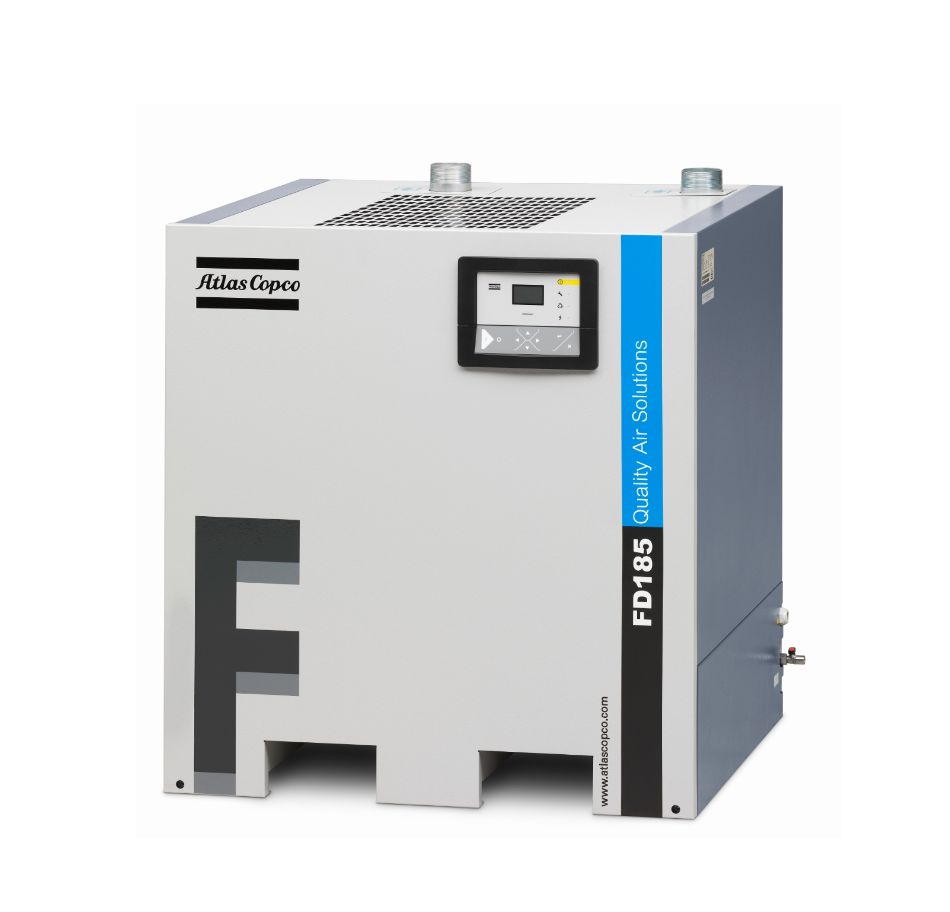

## Refrigerated Air Dryer FD

Our FD refrigerated air dryer model comes with its own range of exciting features and advantages, including:

**Compressed air dryer 6-4000 I/s.**The FD refrigerated compressed air dryer offers an accurate dew point, low-cost life cycle and a quick and valuable return on investment.**Reduced life cycle costs.**Our compressed air dryers have a variety of low-pressure drops and power-saving features to cut down on energy consumption. This FD model can achieve 6-4000 I/s.**Silent operation.**Due to their innovative sound suppression canopy that significantly decreases noise levels, FD refrigerated dryers are the most silent in their class.**Easy maintenance.**Atlas Copco air dryers are ready to use at the moment of delivery with a solid base frame and integrated forklift slots. They only require regular examinations and cleaning and do not need consumables.

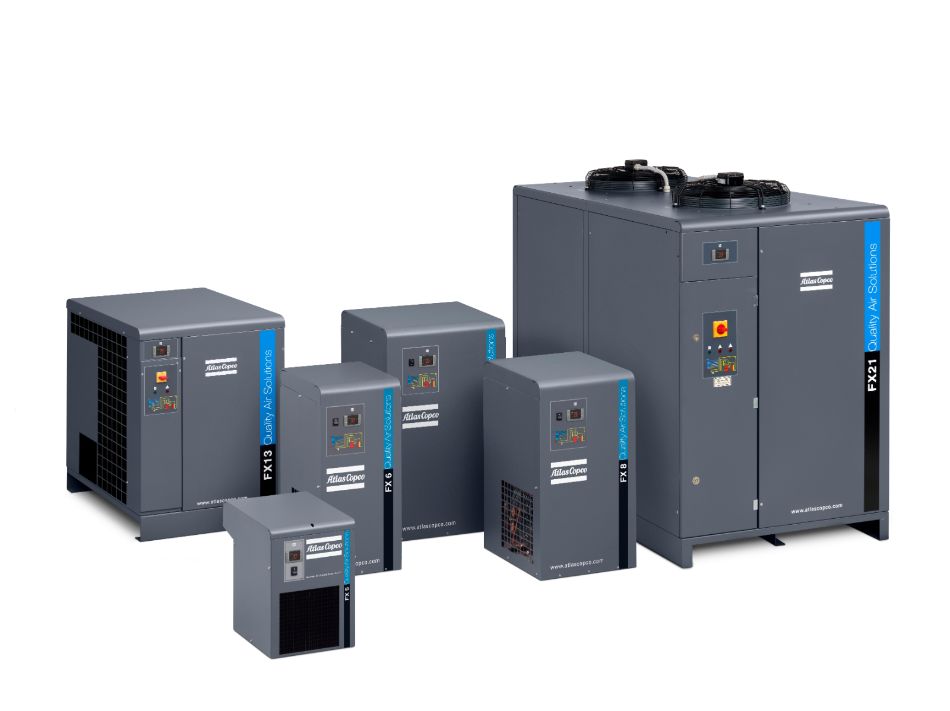

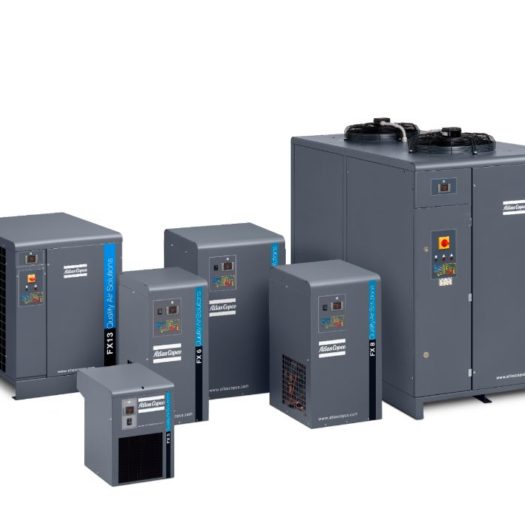

## FX Industrial Refrigerant Air Dryers

When you purchase an FX industrial refrigerant dryer, you can avoid the high operation costs and downtime associated with corrosion and compressed condensation damage. Our FX refrigerated compressed air dryers are made for industrial use and come with various user benefits that other air dryers lack:

**Solid performance:**FX industrial refrigerated air dryers are known for their high-performance rates and stable dew points, complete with convenient digital displays. This model eliminates the risk of moisture entry and freezing in your compressed air system.**Proven reliability:**Our industrial refrigerant air dryers are proven to be highly reliable, with effective control systems, durable designs and quality components.**Easy installation:**Each Atlas Copco FX dryer comes with an easy-to-install plug-and-play feature with self-regulated control capabilities and a single electrical connection.**Minimal maintenance:**You can ensure minimal maintenance costs with our refrigerated air dryers for air compressors. They feature ergonomic designs that allow for fast component access and long service intervals.

## Industry Applications of Refrigerated Compressed Air Dryers

Our refrigerated air dryers are highly versatile and designed to suit a variety of industries and applications, including:

- Industrial plants.
- Technical industries.
- Manufacturing facilities.
- Mining.
- Steel mills.
- Shipboard.

## Purchase Refrigerated Air Compressor Dryers at Fluid Aire Dynamics

For high-quality refrigerated air compressor dryers you can trust, choose Fluid Aire Dynamics. For over 30 years, we have supplied customers with the best air compressors and components on the market. Our air dryers help improve plant processing and operation by combating high energy consumption and producing the cleanest compressed air. When you work with Fluid Aire Dynamics in Pennsylvania or Delaware, you can reap the benefits of our superior product designs, excellent customer service and emergency 24/7 equipment repairs.

Contact us for more information on our refrigerated air dryers.

This document has been edited with the free version of the instant HTML converter tool. Try it here and use it every time for your projects.

## FD Series Technical Specifications

Model | Maximum inlet conditions at full flow (ambient/ inlet) - °C | Inlet flow with a pressure dew point of 3°C/37.4°F - l/s | Inlet flow with a pressure dew point of 3°C/37.4°F - cfm | Pressure drop at full flow - bar | Pressure drop at full flow - psi | Power consumption - kW | Power consumption - hp | Max. working pressure - bar | Max. working pressure - psi | Compressed air connections | Dimensions - mm | Dimensions - inches | Weight - kg | Weight - lb |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

FD 100 VSD | 46 | 100 | 212 | 0.16 | 2.3 | 0.66 | 0.90 | 14.5 | 210 | G 1 1/2 F (NPT for UL version) | 805 x 962 x 1040 | 31.69 x 37.87 x 41 | 130 | 287 |

FD 140 VSD | 46 | 140 | 297 | 0.11 | 1.6 | 1.04 | 1.41 | 14.5 | 210 | G 2 F (NPT for UL version) | 805 x 962 x 1040 | 31.69 x 37.87 x 41 | 130 | 287 |

FD 180 VSD | 46 | 180 | 381 | 0.18 | 2.6 | 1.54 | 2.09 | 14.5 | 210 | G 2 F (NPT for UL version) | 805 x 962 x 1040 | 31.69 x 37.87 x 41 | 134 | 295 |

FD 220 VSD | 46 | 220 | 466 | 0.14 | 2 | 1.77 | 2.41 | 14.5 | 210 | G 2 1/2 F (NPT for UL version) | 805 x 962 x 1040 | 31.69 x 37.87 x 41 | 143 | 315 |

FD 260 VSD | 46 | 260 | 551 | 0.1 | 1.5 | 1.9 | 2.58 | 14.5 | 210 | G 2 1/2 F (NPT for UL version) | 805 x 962 x 1040 | 31.69 x 37.87 x 41 | 150 | 331 |

FD 300 VSD | 46 | 300 | 636 | 0.18 | 2.6 | 2.64 | 3.59 | 14.5 | 210 | G 2 1/2 F (NPT for UL version) | 805 x 962 x 1040 | 31.69 x 37.87 x 41 | 165 | 364 |

FD 5 | 60 | 6 | 13 | 0.07 | 1.02 | 0.2 | 0.27 | 16 (1) | 233 (1) | R 3/4 | 525.5 x 390 x 530 | 20.7 x 15.4 x 20.9 | 27 | 60 |

FD 10 | 60 | 10 | 21 | 0.11 | 1.6 | 0.2 | 0.27 | 16 (1) | 233 (1) | R 3/4 | 525.5 x 390 x 530 | 20.7 x 15.4 x 20.9 | 27 | 60 |

FD 15 | 60 | 15 | 32 | 0.12 | 1.75 | 0.33 | 0.45 | 16 (1) | 233 (1) | R 3/4 | 525.5 x 390 x 530 | 20.7 x 15.4 x 20.9 | 32 | 70 |

FD 20 | 60 | 20 | 42 | 0.12 | 1.75 | 0.41 | 0.56 | 16 (1) | 233 (1) | R 3/4 | 525.5 x 390 x 530 | 20.7 x 15.4 x 20.9 | 34 | 75 |

FD 25 | 60 | 25 | 53 | 0.17 | 2.47 | 0.41 | 0.56 | 16 (1) | 233 (1) | R 3/4 | 525.5 x 390 x 530 | 20.7 x 15.4 x 20.9 | 34 | 75 |

FD 30 | 60 | 30 | 64 | 0.25 | 3.64 | 0.41 | 0.56 | 16 (1) | 233 (1) | R 3/4 | 525.5 x 390 x 530 | 20.7 x 15.4 x 20.9 | 34 | 75 |

FD 40 | 60 | 40 | 85 | 0.2 | 2.91 | 0.57 | 0.76 | 16 (1) | 233 (1) | R 1 | 716 x 389 x 679 | 28.2 x 15.3 x 26.8 | 57 | 125 |

FD 50 | 60 | 50 | 106 | 0.2 | 2.91 | 0.54 | 0.72 | 16 (1) | 233 (1) | R 1 | 716 x 389 x 679 | 28.2 x 15.3 x 26.8 | 58 | 128 |

FD 60 | 60 | 60 | 127 | 0.22 | 3.2 | 0.63 | 0.84 | 13 | 189 | R 1 | 795 x 482 x 804 | 31.3 x 19.0 x 31.7 | 80 | 176 |

FD 70 | 60 | 70 | 148 | 0.22 | 3.2 | 0.87 | 1.17 | 13 | 189 | R 1 | 795 x 482 x 804 | 31.3 x 19.0 x 31.7 | 81 | 178 |

FD 95 | 60 | 95 | 201 | 0.22 | 3.2 | 1.18 | 1.58 | 13 | 189 | R 1 | 795 x 482 x 804 | 31.3 x 19.0 x 31.7 | 87 | 192 |

## Product Catalogs & Spec Sheet Downloads

## Manufacturer Link

## FX Series Technical Specifications

Model | Hz | Outlet pressure dew point +5 °C/41 °F - Inlet Capacity - l/s | Outlet pressure dew point +5 °C/41 °F - Inlet Capacity - cfm | Outlet pressure dew point +5 °C/41 °F - Pressure Drop - bar | Outlet pressure dew point +5 °C/41 °F - Pressure Drop - psi | Outlet pressure dew point +3 °C/37 °F - Inlet Capacity - l/s | Outlet pressure dew point +3 °C/37 °F - Inlet Capacity - cfm | Outlet pressure dew point +3 °C/37 °F - Pressure Drop - bar | Outlet pressure dew point +3 °C/37 °F - Pressure Drop - psi | Maximum Working Pressure - bar | Maximum Working Pressure - psi | Electrical Supply | Dimensions - mm | Dimensions - inches | Weight - kg | Weight - lb | Compressed Air Connections |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

FX 1 | 50 | 7 | 14 | 0.20 | 2.88 | 6 | 13 | 0.15 | 2.18 | 16 | 232 | 230/1/50Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 19 | 42 | 3/4” M |

FX 1 | 60 | 7 | 14 | 0.20 | 2.88 | 6 | 13 | 0.15 | 2.18 | 16 | 232 | 115-230/1/60Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 19 | 42 | 3/4” NPT |

FX 2 | 50 | 12 | 24 | 0.33 | 4.79 | 10 | 21 | 0.25 | 3.63 | 16 | 232 | 230/1/50Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 19 | 42 | 3/4” M |

FX 2 | 60 | 12 | 24 | 0.33 | 4.79 | 10 | 21 | 0.25 | 3.63 | 16 | 232 | 115-230/1/60Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 19 | 42 | 3/4” NPT |

FX 3 | 50 | 16 | 35 | 0.33 | 4.79 | 14 | 30 | 0.25 | 3.63 | 16 | 232 | 230/1/50Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 20 | 44 | 3/4” M |

FX 3 | 60 | 16 | 35 | 0.33 | 4.79 | 14 | 30 | 0.25 | 3.63 | 16 | 232 | 115-230/1/60Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 20 | 44 | 3/4” NPT |

FX 4 | 50 | 23 | 49 | 0.33 | 4.79 | 20 | 42 | 0.25 | 3.63 | 16 | 232 | 230/1/50Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 25 | 55 | 3/4” M |

FX 4 | 60 | 23 | 49 | 0.33 | 4.79 | 20 | 42 | 0.25 | 3.63 | 16 | 232 | 115-230/1/60Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 25 | 55 | 3/4” NPT |

FX 5 | 50 | 35 | 74 | 0.4 | 5.75 | 30 | 64 | 0.30 | 4.35 | 16 | 232 | 230/1/50Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 27 | 60 | 3/4” M |

FX 5 | 60 | 35 | 74 | 0.4 | 5.75 | 30 | 64 | 0.30 | 4.35 | 16 | 232 | 115-230/1/60Hz | 500 x 350 x 484 | 19.69 x 13.78 x 19.06 | 27 | 60 | 3/4” NPT |

FX 6 | 50 | 45 | 95 | 0.42 | 6.14 | 39 | 83 | 0.32 | 4.64 | 13 | 189 | 230/1/50Hz | 500 x 370 x 804 | 19.69 x 14.57 x 31.65 | 51 | 112 | 1" F |

FX 6 | 60 | 45 | 95 | 0.42 | 6.14 | 39 | 83 | 0.32 | 4.64 | 13 | 189 | 115-230/1/60Hz | 500 x 370 x 804 | 19.69 x 14.57 x 31.65 | 51 | 112 | 1" NPT |

FX 7 | 50 | 58 | 122 | 0.5 | 7.29 | 50 | 106 | 0.38 | 5.51 | 13 | 189 | 230/1/50Hz | 500 x 370 x 804 | 19.69 x 14.57 x 31.65 | 51 | 112 | 1" F |

FX 7 | 60 | 58 | 122 | 0.5 | 7.29 | 50 | 106 | 0.38 | 5.51 | 13 | 189 | 115-230/1/60Hz | 500 x 370 x 804 | 19.69 x 14.57 x 31.65 | 51 | 112 | 1" NPT |

FX 8 | 50 | 69 | 146 | 0.24 | 3.45 | 60 | 127 | 0.18 | 2.61 | 13 | 189 | 230/1/50Hz | 560 x 460 x 829 | 22.05 x 18.11 x 32.64 | 61 | 135 | 1 1/2" F |

FX 8 | 60 | 69 | 146 | 0.24 | 3.45 | 60 | 127 | 0.18 | 2.61 | 13 | 189 | 115-230/1/60Hz | 560 x 460 x 829 | 22.05 x 18.11 x 32.64 | 61 | 135 | 1 1/2" NPT |

FX 9 | 50 | 79 | 167 | 0.33 | 4.79 | 68 | 144 | 0.25 | 3.63 | 13 | 189 | 230/1/50Hz | 560 x 460 x 829 | 22.05 x 18.11 x 32.6 | 68 | 150 | 1 1/2" F |

FX 9 | 60 | 79 | 167 | 0.33 | 4.79 | 68 | 144 | 0.25 | 3.63 | 13 | 189 | 115-230/1/60Hz | 560 x 460 x 829 | 22.05 x 18.11 x 32.6 | 68 | 150 | 1 1/2" NPT |

FX 10 | 50 | 100 | 211 | 0.24 | 3.45 | 87 | 184 | 0.18 | 2.61 | 13 | 189 | 230/1/50Hz | 560 x 460 x 829 | 22.05 x 18.11 x 32.64 | 73 | 161 | 1 1/2" F |

FX 10 | 60 | 100 | 211 | 0.24 | 3.45 | 87 | 184 | 0.18 | 2.61 | 13 | 189 | 115-230/1/60Hz | 560 x 460 x 829 | 22.05 x 18.11 x 32.64 | 73 | 161 | 1 1/2" NPT |

FX 11 | 50 | 125 | 264 | 0.26 | 3.84 | 108 | 229 | 0.20 | 2.90 | 13 | 189 | 230/1/50Hz | 560 x 580 x 939 | 22.05 x 22.83 x 36.97 | 90 | 198 | 1 1/2" F |

FX 11 | 60 | 125 | 264 | 0.26 | 3.84 | 108 | 229 | 0.20 | 2.90 | 13 | 189 | 115-230/1/60Hz | 560 x 580 x 939 | 22.05 x 22.83 x 36.97 | 90 | 198 | 1 1/2" NPT |

FX 12 | 50 | 148 | 313 | 0.36 | 5.18 | 128 | 271 | 0.27 | 3.92 | 13 | 189 | 230/1/50Hz | 560 x 580 x 939 | 22.05 x 22.83 x 36.97 | 90 | 198 | 1 1/2" F |

FX 12 | 60 | 148 | 313 | 0.36 | 5.18 | 128 | 271 | 0.27 | 3.92 | 13 | 189 | 115-230/1/60Hz | 560 x 580 x 939 | 22.05 x 22.83 x 36.97 | 90 | 198 | 1 1/2" NPT |

FX 13 | 50 | 192 | 407 | 0.33 | 4.79 | 167 | 354 | 0.25 | 3.63 | 13 | 189 | 400/3/50Hz | 898 x 735 x 10002 | 35.35 x 28.94 x 39.45 | 128 | 282 | 2" F |

FX 13 | 60 | 192 | 407 | 0.33 | 4.79 | 167 | 354 | 0.25 | 3.63 | 13 | 189 | 460/3/60Hz | 898 x 735 x 10002 | 35.35 x 28.94 x 39.45 | 128 | 282 | 2" NPT |

FX 14 | 50 | 230 | 488 | 0.40 | 5.80 | 200 | 424 | 0.30 | 4.35 | 13 | 189 | 400/3/50Hz | 898 x 735 x 10002 | 35.35 x 28.94 x 39.45 | 146 | 322 | 2" F |

FX 14 | 60 | 230 | 488 | 0.40 | 5.80 | 200 | 424 | 0.30 | 4.35 | 13 | 189 | 460/3/60Hz | 898 x 735 x 10002 | 35.35 x 28.94 x 39.45 | 146 | 322 | 2" NPT |

FX 15 | 50 | 288 | 611 | 0.40 | 5.80 | 250 | 530 | 0.30 | 4.35 | 13 | 189 | 400/3/50Hz | 898 x 735 x 10002 | 35.35 x 28.94 x 39.45 | 158 | 348 | 2" F |

FX 15 | 60 | 288 | 611 | 0.40 | 5.80 | 250 | 530 | 0.30 | 4.35 | 13 | 189 | 460/3/60Hz | 898 x 735 x 10002 | 35.35 x 28.94 x 39.45 | 158 | 348 | 2" NPT |

FX 16 | 50 | 345 | 731 | 0.40 | 5.80 | 300 | 636 | 0.30 | 4.35 | 13 | 189 | 400/3/50Hz | 898 x 735 x 10002 | 35.35 x 28.94 x 39.45 | 185 | 408 | 2" F |

FX 16 | 60 | 345 | 731 | 0.40 | 5.80 | 300 | 636 | 0.30 | 4.35 | 13 | 189 | 460/3/60Hz | 898 x 735 x 10002 | 35.35 x 28.94 x 39.45 | 185 | 408 | 2" NPT |

FX 17 | 50 | 424 | 899 | 0.28 | 4.07 | 400 | 848 | 0.25 | 3.63 | 13 | 189 | 400/3/50Hz | 1082 x 1020 x 1560 | 42.59 x 40.15 x 61.41 | 325 | 717 | 3" F |

FX 17 | 60 | 424 | 899 | 0.28 | 4.07 | 400 | 848 | 0.25 | 3.63 | 13 | 189 | 460/3/60Hz | 1082 x 1020 x 1560 | 42.59 x 40.15 x 61.41 | 325 | 717 | 3" NPT |

FX 18 | 50 | 530 | 1124 | 0.34 | 4.89 | 500 | 1060 | 0.30 | 4.35 | 13 | 189 | 400/3/50Hz | 1082 x 1020 x 1560 | 42.59 x 40.15 x 61.41 | 335 | 739 | 3" F |

FX 18 | 60 | 530 | 1124 | 0.34 | 4.89 | 500 | 1060 | 0.30 | 4.35 | 13 | 189 | 460/3/60Hz | 1082 x 1020 x 1560 | 42.59 x 40.15 x 61.41 | 335 | 739 | 3" NPT |

FX 19 | 50 | 618 | 1310 | 0.39 | 5.70 | 583 | 1236 | 0.35 | 5.08 | 13 | 189 | 400/3/50Hz | 1082 x 1020 x 1560 | 42.59 x 40.15 x 61.41 | 350 | 772 | 3" F |

FX 19 | 60 | 618 | 1310 | 0.39 | 5.70 | 583 | 1236 | 0.35 | 5.08 | 13 | 189 | 460/3/60Hz | 1082 x 1020 x 1560 | 42.59 x 40.15 x 61.41 | 350 | 772 | 3" NPT |

FX 19.5 | 50 | 795 | 1685 | 0.28 | 4.07 | 750 | 1527 | 0.25 | 3.63 | 13 | 189 | 400/3/50Hz | 1123 x 1020 x 1560 | 44.20 x 40.15 x 61.41 | 380 | 838 | Flanged DN 125 |

FX 19.5 | 60 | 795 | 1685 | 0.28 | 4.07 | 750 | 1527 | 0.25 | 3.63 | 13 | 189 | 460/3/60Hz | 1123 x 1020 x 1560 | 44.20 x 40.15 x 61.41 | 380 | 838 | Flanged DN 125 |

FX 20 | 50 | 883 | 1872 | 0.34 | 4.89 | 833 | 1766 | 0.30 | 4.35 | 13 | 189 | 400/3/50Hz | 2099 x 1020 x 1560 | 82.6 x 40.15 x 61.41 | 550 | 1213 | Flanged DN 125 |

FX 20 | 60 | 883 | 1872 | 0.34 | 4.89 | 833 | 1766 | 0.30 | 4.35 | 13 | 189 | 460/3/60Hz | 2099 x 1020 x 1560 | 82.6 x 40.15 x 61.41 | 550 | 1213 | Flanged DN 125 |

FX 21 | 50 | 1236 | 2516 | 0.28 | 4.07 | 1166 | 2374 | 0.25 | 3.63 | 13 | 189 | 400/3/50Hz | 2099 x 1020 x 1560 | 82.6 x 40.15 x 61.41 | 600 | 1323 | Flanged DN 125 |

FX 21 | 60 | 1236 | 2516 | 0.28 | 4.07 | 1166 | 2374 | 0.25 | 3.63 | 13 | 189 | 460/3/60Hz | 2099 x 1020 x 1560 | 82.6 x 40.15 x 61.41 | 600 | 1323 | Flanged DN 125 |
