Boge Desiccant Air Dryers

The Right Solution Whatever The Task

True Innovation in Desiccant Drying

BOGE is world renowned for its innovative, solution oriented compressed air technology. Geared to the customers’ needs, BOGE presents a comprehensive product portfolio, covering air treatment, condensate technology and process engineering. The compressed air dryer range meets the highest requirements. Membrane dryers, refrigeration dryers, adsorption dryers – BOGE offers highly efficient, environmentally friendly and cost effective compressed air dryers to suit any task.

The Complete Range

In addition to the more common dryer technologies typically employed in compressed air applications, BOGE also offers a complete range of blower operated, heated purge systems, as well as systems for high pressure applications in excess of 7,000 psig. BOGE’s unique approach to desiccant dryer engineering provides customers with not only the most complete product range on the market, but the most energy efficient as well. Energy efficiency is optimized across the entire product family regardless of model type and size. By supplying application specific solutions, we can ensure that our customers receive personalized attention to their compressed air drying needs. The result is a system that will provide the most reliable, energy efficient solution possible. All BOGE dryers are designed and tested to meet the strict quality guidelines of our company. There are no compromises to quality and reliability of any of our dryers.

BOGE HLD Series Desiccant Dryers

Heatless Desiccant Dryers

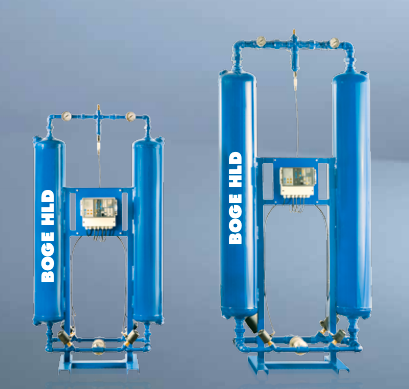

Boge HLD – Heatless Desiccant Dryers

Continuous research and development has led to the manufacture of a new generation of HLD Series desiccant air/gas dryers. Reliable operation is guaranteed with the HLD Series heatless desiccant dryers thanks to a fail-safe design in the event of power interruption, along with tower operating status lights and the highest quality non-lubricated air/gas inlet valves.

The operation of compressed air systems with conventional adsorption dryers can suffer from high, system-related pressure drop. This deficiency needs to be compensated via an increase in compressor performance, thus requiring a higher energy input. BOGE HLD and HLD PLUS adsorption dryers offer a convincing, economic solution to the problem: BOGE has developed an adsorption dryer design that is focused completely on reducing energy consumption. By significantly reducing pressure drops and using the most energy efficient components possible, energy savings of up to 80% can be realized when compared to conventional designs. The energy savings alone offer a complete economic payback after an average of only three years. Your advantage: BOGE HLD and HLD PLUS represents a real system solution: The inline integration of BOGE compressed air filters, combined with BEKOMAT® condensate drains represent a major safety asset.

BOGE HRD Series Desiccant Dryers

Heated Desiccant Dryers

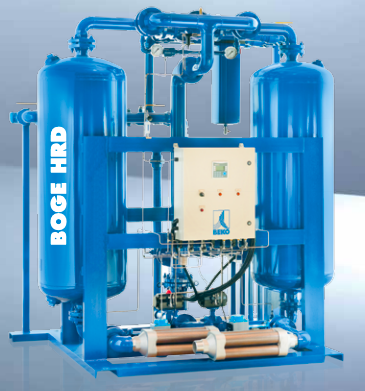

Boge- HRD – Heated Desiccant Dryers & HBP – Blower Purge Desiccant Dryers

The local conditions of the application along with economic parameters ultimately determine the project solution, yet through the modular BOGE design you are guaranteed to have the appropriate dryer for the particular situation – Engineering based on the synergy of proven technologies to achieve a higher level of quality while reducing energy consumption with the added benefit providing customers with a complete solution using this systematic approach. Your advantage: BOGE HRD represents a real system solution.

BOGE HBP Series Desiccant Dryers

Blower Purge Desiccant Dryers

Boge- HRD – Heated Desiccant Dryers & HBP – Blower Purge Desiccant Dryers

The local conditions of the application along with economic parameters ultimately determine the project solution, yet through the modular BOGE design you are guaranteed to have the appropriate dryer for the particular situation – Engineering based on the synergy of proven technologies to achieve a higher level of quality while reducing energy consumption with the added benefit providing customers with a complete solution using this systematic approach. Your advantage: BOGE HBP represents a real system solution.

HLD Series Technical Specifications

ModelFlow Rate
scfm
Connection
Size
Filter Model
Size
Dimensions
in
Weight
lbs
HLD / HLD PLUS 80803/4” NPT-FS07570 x 31 x 20475
HLD / HLD PLUS 1201201” NPT-FS10070 x 36 x 20490
HLD / HLD PLUS 1601601” NPT-FM01070 x 36 x 20560
HLD / HLD PLUS 2202201 1/2” NPT-FM01590 x 40 x 20650
HLD / HLD PLUS 3203201 1/2” NPT-FM01890 x 52 x 20780
HLD / HLD PLUS 4404401 1/2” NPT-FM01090 x 54 x 20950
HLD / HLD PLUS 5805802" FlangeM02296 x 56 x 221150
HLD / HLD PLUS 7407402" FlangeM02396 x 56 x 301500
HLD / HLD PLUS 9009002 1/2” NPT-FM02596 x 65 x 381800
HLD / HLD PLUS 130013003" FlangeM03096 x 76 x 422200
HLD / HLD PLUS 160016003" FlangeM03092 x 88 x 483700
HLD / HLD PLUS 205020504" FlangeL102108 x 88 x 484500
HLD / HLD PLUS 298029804" FlangeL150116 x 100 x 586000
HLD / HLD PLUS 400040006" FlangeL156118 x 134 x 527600
HLD / HLD PLUS 510051006" FlangeL156118 x 140 x 609500



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

HRD Series Technical Specifications

ModelFlow Rate
scfm
Connection
Size
Dimensions
in
Weight
lbs
HRD 70703/4" NPT-F70 x 31 x 20135
HRD 1301301" NPT-F70 x 36 x 20240
HRD 1801801" NPT-F70 x 36 x 20335
HRD 2602601 1/2" NPT-F72 x 50 x 22475
HRD 3553551 1/2" NPT-F72 x 54 x 24490
HRD 4604602" NPT-F90 x 54 x 24560
HRD 5755752" NPT-F92 x 58 x 24650
HRD 7207202 1/2" NPT-F92 x 62 x 26780
HRD 101010103" Flange92 x 66 x 30950
HRD 130013003" Flange92 x 72 x 301150
HRD 172517254" Flange96 x 68 x 381500
HRD 235023504" Flange96 x 80 x 421800
HRD 325032506" Flange96 x 92 x 482200
HRD 405040506" Flange108 x 92 x 483700



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

HBP Series Technical Specifications

ModelFlow Rate
scfm
Connection
Size
Dimensions
in
Weight
lbs
HBP 2602601 1/2" NPT-F72 x 50 x 33475
HBP 3553551 1/2" NPT-F72 x 54 x 36490
HBP 4604602" NPT-F90 x 54 x 36700
HBP 5755752" NPT-F92 x 58 x 36850
HBP 7207202 1/2" NPT-F92 x 62 x 391000
HBP 101010103" Flange92 x 66 x 451250
HBP 130013003" Flange92 x 72 x 451600
HBP 172517254" Flange96 x 68 x 571800
HBP 235023504" Flange96 x 80 x 632300
HBP 325032506" Flange96 x 92 x 723800
HBP 405040506" Flange108 x 92 x 724600
