ZEKS Refrigerated Air Dryers

For more than 50 years, ZEKS Compressed Air Solutions has been pushing forward to engineer the most innovative, effective and efficient compressed air drying technologies.

ZEKS offers a wide selection of cycling and non-cycling refrigerated compressed air dryers to meet the precise needs of your business. All of their equipment is assembled in the USA and backed by expert installation and service from The Titus Company.

HeatSink™ Cycling Refrigerated Dryers

ZEKS HeatSink™ cycling refrigerated air dryers incorporate patented True-Cycling™ operational technology that allows the system to easily adapt to fluctuations in your demand for compressed air.

These dryers work to cool a thermal mass, which cools the compressed air flowing through the dryer. Refrigerant media is circulated through ZEKS CFX® stainless steel media-to-air heat exchangers, cooling the compressed air and producing dry product air.

When your demand drops, the system automatically switches off. The already-cooled thermal mass continues to cool and dry the compressed air without drawing additional energy.

HeatSink cycling dryers offer the ultimate energy efficiency for industrial applications where your compressed air usage varies greatly or where low ambient temperatures are common.

HSJ Series HeatSink™

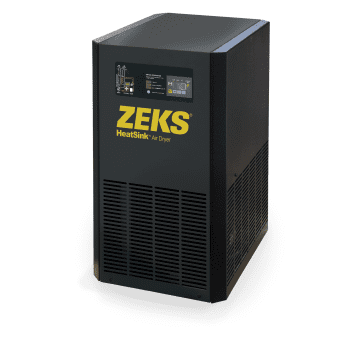

ZEKS - HeatSink Cycling Refrigerated Dryers - 10 to 2400 SCFM

The HSJ Series is part of the HeatSink family of cycling refrigerated dryers. This series of dryers is designed to provide exceptional energy savings and efficiency in applications that have variable demands for compressed air.

HSJ Series dryer units have multi-layer heat exchangers with precoolers and reheaters to maintain a consistent 38°F dew point quality across all operating conditions. They also have an automatic electronic selenoid condensate drain to empty condensate without losing condensed air or sacrificing efficiency.

ZEKS makes nine models of HSJ Series cycling dryers that can dry air between 10 and 150 SCFM.

HSFM Series MultiPlex™

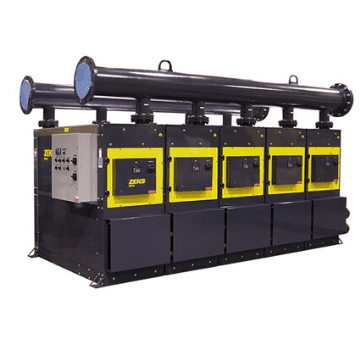

ZEKS - Multiplex – HeatSink Cycling Refrigerated Dryers - 3250 to 19200 SCFM

HSFM Series MultiPlex™ HeatSink cycling dryers are modular to allow for larger capacities, redundancy and future system expansion. ZEKS makes 11 different HSFM Series MultiPlex models that hold two to eight modules and dry air at 3,250 to 19,200 SCFM.

MultiPlex dryers are ideal for operations with fluctuating demand for large quantities of high-quality dry compressed air. The modules work in tandem on a cycle to provide air when needed and shut off when there’s less demand. You can take one module offline for repair or service without facing any downtime because the remaining modules will continue operating.

High-Pressure ZEKS SCFX and SS Series

The SCFX and SS Series of high-pressure refrigerated dryers are designed to operate in compressed air systems with pressures greater than 200 PSIG. Their components are specialized for reliable, efficient operation in these high-pressure applications.

The SCFX dryer operates at a maximum pressure of 680 PSIG and is also effective as a high-temperature refrigerated dryer for managing hot compressed air. This line includes 13 different SCFX models with air-drying capacities ranging from 340 to 3,550 SCFM.

SS Series dryers function at even greater operating pressures up to 6000 PSIG. The air circuits of these dryers are constructed of stainless steel for rigidity and durability. Six different models are available, offering capacities of 30 to 500 SCFM.

Non-Cycling Refrigerated Dryers

Non-cycling refrigerated air dryers are ideal for applications that require a steady, consistent flow of dry compressed air. These units work constantly to pump out clean, dry compressed air to meet demands that are consistent across working hours.

ZEKS non-cycling dryers feature stainless steel CFX® heat exchangers that provide superior durability and protection from corrosion. Their proprietary moisture separators work to condense and remove moisture from your condensed air, and timed solenoid drains expel the condensate from the system.

NC Series™/Multi-Module Series™

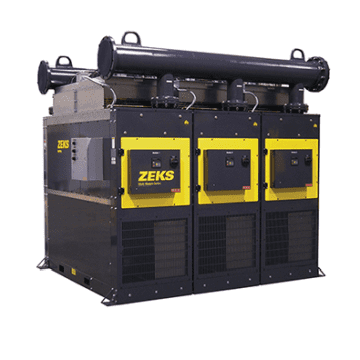

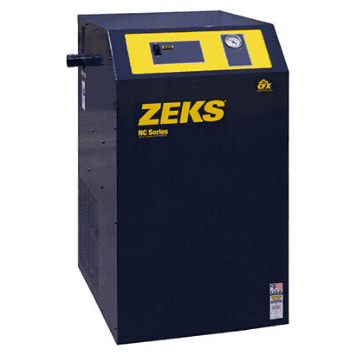

ZEKS - Non-Cycling Refrigerated DryersZEKS - NC MultiModule – Non-Cycling Refrigerated Dryers - 3250 to 19200 SCFM

NC Series™ non-cycling air dryers provide economical compressed air drying with robust components to produce a consistent stream of dry compressed air. These systems are compatible with air systems with 50 to 4800 horsepower compressors.

Multi-Module™ non-cycling refrigerant dryers are designed to offer redundancy and expansion opportunities with two to eight slots for independent dryer modules. With Multi-Module units, you can take one module offline without interrupting the flow of your systems, or you can add more modules as your production continues to grow for greater air drying capabilities.

ZEKS offers 11 different Multi-Module units with capabilities of 3,250 to 19,200 SCFM and 17 models of NC dryers with drying capabilities of 75 to 2,400 SCFM.

ZEKS Premier™

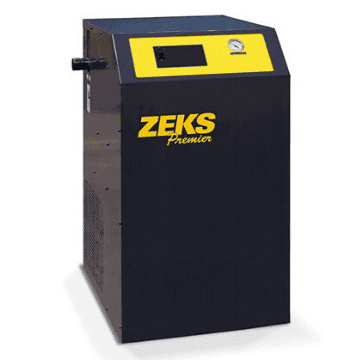

ZEKS-Non-cycling Refrigerated Dryers ZEKS Premier™

Premier™ Series non-cycling dryers are compatible with compressed air systems that have 50 to 200 horsepower compressors. These dryers offer the same features and high-quality dry, compressed air at a price point made for any budget.

ZEKS makes eight models of Premier dryers with capacities of 275 to 1,000 SCFM to suit the needs of your specific application.

Get ZEKS Refrigerated Dryers

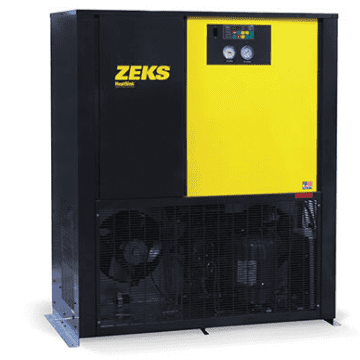

ZEKS - HP –High Pressure Refrigerated Dryers

Anywhere you need clean, dry compressed air, ZEKS refrigerated dryers can help. ZEKS dryers are widely used in countless applications across industrial and commercial businesses, including:

  • Agriculture.
  • Food and beverage production.
  • Pharmaceuticals.
  • Manufacturing.
  • Energy production.
  • Chemical processing.
  • Plastic injection and molding.

At The Titus Company, we can help you select the best ZEKS refrigerated air dryer for your specific application. We’re with you every step of the way, from designing and installing your compressed air system to providing ongoing maintenance and even 24/7 emergency repair services.

Find out more about ZEKS from The Titus Company by filling out our online contact form or giving us a call at 601-913-9100 to speak with a member of our team.



HeatSink Cycling Refrigerated Dryers Technical Specifications

ModelCapacity (SCFM)Dimensions - W x D x H (in)Ship Wt. (lbs)In/Out Air Connect SizeDrain Flex LineOperating KWRefrig. TypeMax. Working PressureVoltages
10HSJ1019.7 x 15.2 x 26.5851/2" FPT1/4" OD.35R134A200 PSI115/1/60
18HSJ1819.7 x 15.2 x 26.5851/2" FPT1/4" OD.43R134A200 PSI115/1/60
24HSJ2419.7 x 15.2 x 26.5901/2" FPT1/4" OD.45R134A200 PSI115/1/60
35HSJ3519.7 x 15.2 x 26.5951/2" FPT1/4" OD.53R134A200 PSI115/1/60
50HSJ5019.7 x 15.2 x 26.51053/4" FPT1/4" OD.68R134A200 PSI115/1/60
75HSJ7522.4 x 16.6 x 30.41501" FPT1/4" OD.94R134A200 PSI115/1/60
100HSJ10022.4 x 16.6 x 30.41551" FPT1/4" OD.98R134A200 PSI115/1/60
230/1/60
125HSJ12522.4 x 16.6 x 30.41601" FPT1/4" OD1.10R134A200 PSI115/1/60
230/1/60
150HSJ15019.6 x 30.2 x 37.52631 1/2" FPT1/4" OD1.66R134A200 PSI115/1/60
230/1/60



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

Multiplex – HeatSink Cycling Refrigerated Dryers Technical Specifications

ModelCapacity (SCFM) 38oF PDPPressure DropDimensions - W x D x H (in)Ship Wt. (lbs)Connect Size In/OutDrain (QTY) Size (FTP)Refrig Comp Air-Cooled (QTY) HPRefrig Comp Water-Cooled (QTY) HPH2O Flow GMP @85oFH2O Conn.Operating KW - Air-CooledOperating KW - Water-CooledNumber of Modules
3250HSFM32503.476 x 96 x 10065208" FLG(2) 1/2"(2) 10.5(2) 9.0381.5 NPT26.215.42
4000HSFM40003.576 x 96 x 10067208" FLG(2) 1/2"(2) 13.5(2) 10.5541.5 NPT27.020.82
4800HSFM48003.576 x 96 x 10068808" FLG(2) 1/2"(2) 13.5(2) 10.5541.5 NPT31.622.82
6000HSFM60003.5110 x 98 x 102970010" FLG(3) 1/2"(3) 13.5(3) 10.5812.0 NPT40.531.23
7200HSFM72003.5110 x 98 x 102995010" FLG(3) 1/2"(3) 13.5(3) 10.5812.0 NPT47.434.23
8000HSFM80003.5143 x 99 x 1031302012" FLG(4) 1/2"(4) 13.5(4) 10.51082.5 NPT54.041.64
9600HSFM96003.0149 x 99 x 1031335012" FLG(4) 1/2"(4) 13.5(4) 10.51082.5 NPT63.245.64
12000HSFM120003.0176 x 101 x 1031640014" FLG(5) 1/2"(5) 13.5(5) 10.51353.0 NPT79.057.05
14400HSFM144003.0209 x 101 x 1031960014" FLG(6) 1/2"(6) 13.5(6) 10.51623.0 NPT94.868.46
16800HSFM168003.0243 x 101 x 1042300016" FLG(7) 1/2"(7) 13.5(7) 10.51894.0 NPT110.679.87
19200HSFM192003.0276 x 101 x 1042640016" FLG(8) 1/2"(8) 13.5(8) 10.52164.0 NPT126.491.28



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

Non-Cycling Refrigerated Dryers Technical Specifications

ModelCapacity (SCFM) 38oF PDPCapacity (SCFM) 50oF PDPPressure DropDimensions - W x D x H (in)Ship Wt. (lbs) - Air-CoolShip Wt. (lbs) - Water-CoolDrain Connect In/OutConnect FPTRefrig Comp Air-Cooled (QTY) HPRefrig Comp Water-Cooled (QTY) HPOperating KW - Air-CooledOperating KW - Water-CooledMax Working TypePressueVoltages
75NCG751031.314 x 21 x 31145N/A1" MPT1/4".3N/A.67N/AR404300 psig115 1-60
208/230-1-60
220-1-50
100NCG1001382.514 x 21 x 31150N/A1" MPT1/4".5N/A1.0N/AR404300 psig115 1-60
208/230-1-60
220-1-50
125NCG1251722.014 x 21 x 31180N/A1 1/2" MPT1/4".6N/A1.3N/AR404300 psig115 1-60
208/230-1-60
220-1-50
150NCG1502072.614 x 21 x 31200N/A1 1/2" MPT1/4".6N/A1.3N/AR404300 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
200NCG2002761.623 x 31 x 403253601 1/2" MPT1/4"1.01.01.81.4R404300 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
250NCG2503453.123 x 31 x 403403801 1/2" MPT1/4"1.51.02.21.4R404300 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
300NCG3004142.023 x 31 x 403754002" MPT1/4"1.51.52.41.9R404300 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
400NCG4005522.923 x 31 x 403754402" MPT1/4"2.52.53.62.9R404300 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
500NCG5006902.942 x 40 x 629507203" MPT1/4"2.52.53.72.9R404300 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
600NCG6008283.042 x 40 x 629508203" MPT1/4"3.03.04.63.8R404300 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
700NCG7009662.742 x 40 x 6210508403" MPT1/4"3.54.05.94.7R404300 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
800NCG80011043.042 x 40 x 6210508503" MPT1/4"4.04.05.94.7R404300 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
1000NCG100013802.432 x 72 x 69170016304" FLG1/4"5.05.07.46.1R404220 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
1200NCG120016563.132 x 72 x 69170016304" FLG1/4"6.55.09.56.1R404220 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
1600NCG160022083.332 x 72 x 69180017904" FLG1/4"9.06.511.38.9R404220 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
2000NCG200027603.532 x 91 x 90.68245026906" FLG1/4"10.58.013.89.0R404220 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60
2400NCG240033124.832 x 91 x 90.68250027206" FLG1/4"12.010.516.211.7R404220 psig208/230-3-60
220-3-50
460-3-60
380-3-50
575-3-60



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

NC MultiModule – Non-Cycling Refrigerated Dryers Technical Specifications

ModelCapacity (SCFM) 38oF PDPPressure Drop (PSI)Dimensions - W x D x H (in)Ship Wt. (lbs)Connect Size In/OutDrain (QTY) Size (FTP)Refrig Comp Air-Cooled (QTY) HPRefrig Comp Water-Cooled (QTY) HPH20 Flow GPM @85oFH2O ConnectOperating KW - Air-CooledOperating KW - Water-CooledNumber of Modules
325032503.476.5 x 96 x 100.248008" FLG(2) 1/2"(2) 8.0(2) 6.5421.5 NPT22.617.82
400040003.576.5 x 96 x 100.250008" FLG(2) 1/2"(2) 10.5(2) 8.0521.5 NPT27.618.02
480048004.876.5 x 96 x 100.255008" FLG(2) 1/2"(2) 12.0(2) 10.5681.5 NPT32.423.42
600060003.5110.25 x 98 x 99.53750010" FLG(3) 1/2"(3) 10.5(3) 8.0782.0 NPT41.427.03
720072003.5110.25 x 98 x 99.53800010" FLG(3) 1/2"(3) 12.0(3) 10.51022.0 NPT48.635.13
800080003.5148 x 100 x 102900012" FLG(4) 1/2"(4) 10.5(4) 8.01042.5 NPT55.236.04
960096004.8148 x 100 x 1021000012" FLG(4) 1/2"(4) 12.0(4) 10.51362.5 NPT64.846.84
12000120004.3175.5 x 102 x 1031400014" FLG(5) 1/2"(5) 12.0(5) 10.51703.0 FLG81.058.55
14400144004.3210.5 x 100 x 1031700014" FLG(6) 1/2"(6) 12.0(6) 10.52043.0 FLG97.270.26
16800168004.8242 x 104 x 1062100016" FLG(7) 1/2"(7) 12.0(7) 10.52384.0 FLG113.481.97
19200192004.8275 x 104 x 1062500016" FLG(8) 1/2"(8) 12.0(8) 10.52724.0 FLG129.693.68



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

HT – High Temperature Refrigerated Dryers Technical Specifications

ModelFlow Capacity (SCFM)Dimensions - W x D x H (in)Ship Wt. (lbs)In/Out Air ConnectionDrain ConnectionMax. Operating PressureRefrig. Compressor HPOperating kWAvailable Voltages
PNA27527523 x 33 x 434101.5" NPT1/4" NPT230 psig1.01.8230-3-60
208-3-60
460-3-60
PNA32532523 x 33 x 434301.5" NPT1/4" NPT230 psig1.02.24230-3-60
208-3-60
460-3-60
PNA40040023 x 33 x 434502.0" NPT1/4" NPT230 psig1.52.4230-3-60
208-3-60
460-3-60
PNA50050023 x 33 x 434902.0" NPT1/4" NPT230 psig2.53.74230-3-60
208-3-60
460-3-60
PNA65065042 x 40 x 627703.0" NPT1/4" NPT300 psig2.53.7230-3-60
208-3-60
460-3-60
PNA80080042 x 40 x 628903.0" NPT1/4" NPT300 psig3.04.6230-3-60
208-3-60
460-3-60
PNA90090042 x 40 x 628903.0" NPT1/4" NPT300 psig3.55.5230-3-60
208-3-60
460-3-60
PNA1000100042 x 40 x 629003.0" NPT1/4" NPT300 psig4.05.9230-3-60
208-3-60
460-3-60



Product Catalogs & Spec Sheet Downloads

Manufacturer Link

HP – High Pressure Refrigerated Dryers Technical Specifications

ModelFlow Capacity (SCFM) @ (psig)Pressure Drop (PSI)Dimensions - W x D x H (in)Ship Wt. (lbs)Air Connect In/OutDrain ConnectionRefrig. Compressor HPOperating kWRefrig. TypeMax. Working PressureAvailable Voltages
9SCFX340 (680).928 x 30 x 586101 1/2” MPT1/4"11.66R404A680 psig230/208/1/60
200/1/50
460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
10SCFX355 (680).8128 x 30 x 586351 1/2” MPT1/4"1 1/22.01R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
11SCFX475 (680)1.228 x 30 x 586352” MPT1/4"22.54R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
12SCFX620 (680)1.128 x 30 x 587352” MPT1/4"2 1/23.24R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
13SCFX875 (680)1.342 x 40 x 6211003” FLG1/4"3 1/24.52R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
14SCFX920 (680)1.142 x 40 x 6212753” FLG1/4"4 1/24.82R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
15SCFX1,100 (680)1.342 x 40 x 6213153” FLG1/4"4 1/25.79R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
16SCFX1,350 (680)1.342 x 40 x 6213453” FLG1/4"56.50R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
17SCFX1,620 (680)1.432 x 72 x 6923554” FLG1/4"6 1/28.90R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
18SCFX2,060 (680)1.632 x 72 x 6924354” FLG1/4"910.50R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
19SCFX2,840 (680)1.732 x 72 x 6927654” FLG1/4"10 1/213.10R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
20SCFX3,190 (680)1.232 x 91 x 9139256” FLG1/4"13 1/214.00R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
21SCFX3,550 (680)132 x 91 x 9141506” FLG1/4"13 1/215.80R404A680 psig460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
15530 (1000)
31 (3000)
32 (6000)
.820 x 20 x 25150Determined by PressureDetermined by Pressure1/2.42R134A750 psig
1,000 psig
1,500 psig
2,500 psig
3,000 psig
3,500 psig
6,000 psig
115/1/60
100/1/50
220/1/50
230/208/1/60
35550 (1000)
51 (3000)
52 (6000)
1.520 x 20 x 31170Determined by PressureDetermined by Pressure1/2.75R404A750 psig
1,000 psig
1,500 psig
2,500 psig
3,000 psig
3,500 psig
6,000 psig
115/1/60
100/1/50
220/1/50
230/208/1/60
55572 (1000)
74 (3000)
75 (6000)
.3829 x 26 x 39590Determined by PressureDetermined by Pressure3/41.35R404A750 psig
1,000 psig
1,500 psig
2,500 psig
3,000 psig
3,500 psig
6,000 psig
115/1/60
100/1/50
220/1/50
230/208/1/60
755170 (1000)
175 (3000)
175 (6000)
1.429 x 26 x 53850Determined by PressureDetermined by Pressure22.54R404A750 psig
1,000 psig
1,500 psig
2,500 psig
3,000 psig
3,500 psig
6,000 psig
460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
955350 (1000)
357 (3000)
360 (6000)
139 x 27 x 601300Determined by PressureDetermined by Pressure43.85R404A750 psig
1,000 psig
1,500 psig
2,500 psig
3,000 psig
3,500 psig
6,000 psig
460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60
1155490 (1000)
500 (3000)
500 (6000)
.661.5 x 28.5 x 68.52500Determined by PressureDetermined by Pressure5 1/27.00R404A750 psig
1,000 psig
1,500 psig
2,500 psig
3,000 psig
3,500 psig
6,000 psig
460/3/60
380/420/3/50
230/208/3/60
240/220/3/50
575/3/60



Product Catalogs & Spec Sheet Downloads

Manufacturer Link
