Atlas Copco Air Compressor Controls

The ES Series of air compression system controllers from Atlas Copco allows you to control and monitor multiple vacuum pumps in your system simultaneously to maximize your efficiency, fine-tune your production and lower your maintenance and energy consumption costs.

These control systems allow fixed and variable speed pumps to work together, providing you with the most suitable product mix at all times.

As a general operating principle, ES controllers use one GHS VSD+ in your multi-pump system to regulate, while the rest of your pumps are in baseload, running as a percentage of their maximum capabilities.

ES Central Controllers

Atlas Copco offers four distinct ES controller modules to help control and monitor your air compression system according to your unique requirements. While each model offers different advantages, they share several key features, including:

  • Single pressure point of measurement
  • Multiple VSD at optimum speed
  • Priority management and sequencing
  • Running hours equalization
Atlas Copco Air Compressor Controls - ES Series

ES4iv and ES6iv

ES4iv and ES6iv air compressor control modules are both integrated system controllers installed on your GHS VSD+ master unit. The ES4iv can connect up to four GHS VDS+ pumps at once, while the ES6iv allows you to connect up to six.

Users can opt to install an additional remote pressure transducer to the master unit, giving the system faster reactivity to fluctuations in your demand.


Atlas Copco ES6v allows users to control both GHS VSD+ pumps and pumps belonging to competitors, as long as at least one pump in the compressor system is GHS VSD+. This air compressor control system can control up to six GHS VSD+ pumps along with up to five pumps from competing brands.

A standard external remote pressure transducer is provided with ES6v control modules for more responsiveness to fluctuations in your demand for compressed air.

ES6v is unique from other ES controllers because it offers an equal wear mode setting. In this setting, your load is balanced across different pumps for equal wear distribution.

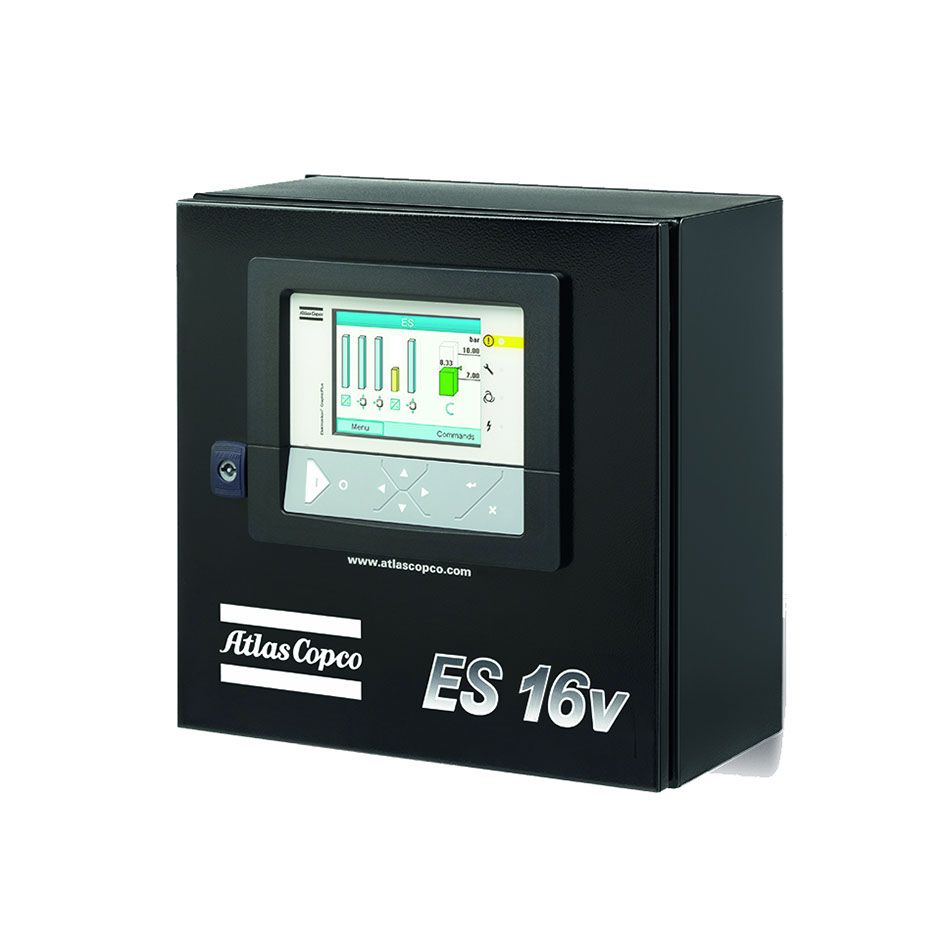

The ES16v air compressor control system is the most extensive of the ES modules. This panel controls up to 16 GHS VSD+ pumps and up to 14 pumps from competing brands as long as one pump in the compressor system is GHS VSD+.

ES16v uses virtual machine control in both maintenance optimization mode and energy-saving mode. Users can select either mode or set a compromise between the two to take advantage of both options.

ES16v control panels can configure baseload GHS VDS+ pumps to run between 20% and 100% of their maximum speed. This baseload machine will react faster than any controller, allowing you to use a much tighter pressure band. For added reactivity to fluctuating demand, ES16v comes with a remote pressure monitoring sensor.

Optimize Your System With Air Compressor Control Panels

ES air compressor control panels from Atlas Copco can help businesses across a wide array of industries cut costs, save energy, reduce maintenance and optimize air compressor operations. Any industry that uses air compressors can benefit from careful control and monitoring, including:

  • Food and beverage production.
  • Manufacturing.
  • Aerospace and defense.
  • Pharmaceuticals.
  • Energy production.

When you purchase your new ES control panels from Fluid Aire Dynamics, our team will install your system and provide ongoing support and preventive maintenance. We also offer 24/7 emergency repair services.

To find out more about ES central controllers from Fluid Aire Dynamics, contact us online or call 610-913-9100 for a free, no-obligation estimate.
