Atlas Copco Carbon Bed Oil Vapor Filters

QDT Series Air Filters

The high-efficiency activated carbon tower removes oil vapor and odors from your compressed air set-up.

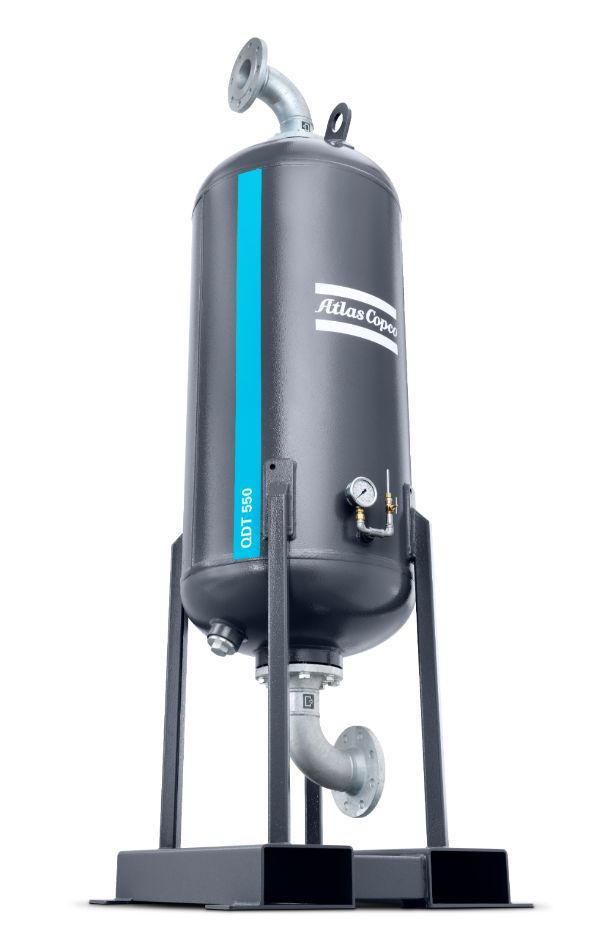

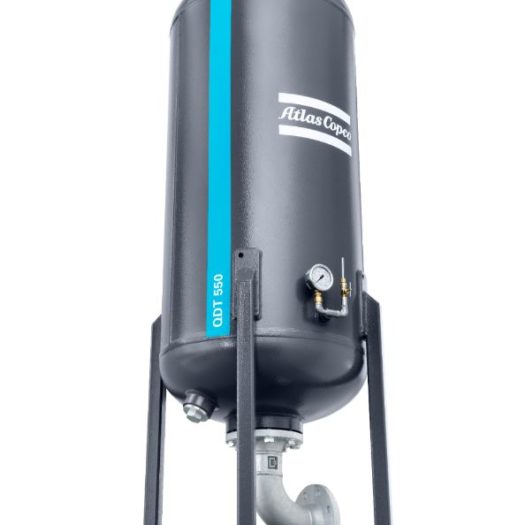

Atlas Copco Carbon Bed Oil Vapor Filters - QDT Series Air Filters - 45 to 655 SCFM

The UD+ QDT filter combination is certified for meeting the requirements of air purity class 1 for total oil, according to ISO 8573-1:2010.

Maximum oil vapor removal

The QDT’s superb activated carbon material with high absorption capacity guarantees air purity over its entire lifecycle, with service intervals of one year or 4,000 operating hours, whichever comes first.

  • Energy savings: With optimization of the internal flow path, the tower improves energy efficiency by an average 65 percent.
  • Easy installation: Either with the self-supporting floor mounting or the optional wall mounting kit, installation of our QDT is easy and straightforward.
  • Peace of mind: Our QDT provides peace of mind with its robust head and housing design, along with its spring-loaded activated carbon bags to avoid channelling.
  • Small footprint: Compared to traditional vessel designs the QDT is extremely compact.
  • Measuring air purity: An optional oil indicator measures the oil downstream, giving you reassurance of air purity at all times.

QDT for optimal oil vapor filtration

In pharmaceutical, food & beverage, electronic and other industries where air purity is critical, you need to remove residual oil vapors and odors from your compressed air supply. The activated carbon layers in our QDT will, by the use of absorption, reduce the residual oil content to lower than 0.003 mg/m³. Pressure drop remains minimal throughout the filter’s lifetime.



QDT Series Technical Specifications

Filter SizeNominal Capacity - l/sNominal Capacity - cfmConnections
G or NPT
threaded | DIN or
ANSI flanged
Dimensions - mmDimensions - inWeight - kgWeight - lbs
2020421/2"490 x 233 x 19019 x 9 x 71022
4545951"715 x 233 x 19028 x 9 x 71533
60601271"840 x 233 x 19033 x 9 x 71840
95952101"715 x 387 x 19028 x 15 x 72964
1251252651 1/2"840 x 387 x 19033 x 15 x 73475
1501503181 1/2"715 x 551 x 19028 x 22 x 74293
1851853921 1/2"840 x 551 x 19033 x 22 x 750110
2452455191 1/2"840 x 715 x 19033 x 28 x 767148
3103106571 1/2"840 x 879 x 19033 x 35 x 784185
425425901DN80 / 3"2148 x 710 x 60085 x 28 x 24264581
5505501165DN80 / 3"2190 x 710 x 67086 x 28 x 26302664
8508501801DN100 / 4"2320 x 724 x 80591 x 29 x 32391860
110011002331DN100 / 4"2450 x 934 x 82097 x 37 x 326021324
180018003814DN150 / 6"2612 x 1046 x 980103 x 41 x 398821940
