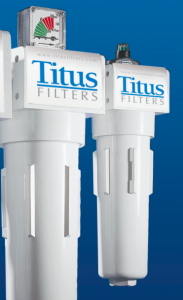

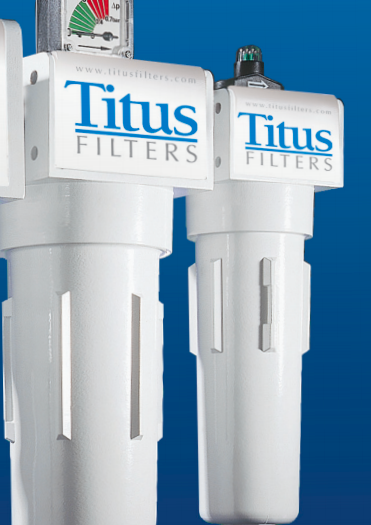

Titus Compressed Air-Line Filters

THF Series

Industrial High Efficiency Filters

  • Suitable for temperatures up to 250°F/120°C
  • Compatible with synthetic and mineral lubricants

Titus Compressed Air-Line Filters THF Series

Introducing high technology filter elements:

  • Unique push-fit, double o-ring seal: Filter element-to-head chamfered connection for ease of installation and removal; push-fit design eliminates tie rods.
  • Stainless steel perforated support core
  • Polyester needle felt sleeve: Provides a unique coalescing action to quickly drain oil and will not crush like competitive foam socks. Ultrasonically welded down length which will not decay with age. No foam socks Many other brands of filters include a foam sock that is vulnerable to lubricants, corrosives, heat, and decay.
  • End cap: A durable and non-corrosive glass filled nylon which is attached to the element with a multi-part urethane resin. The element is then held in place by internal ribs within the filter housing for positive sealing.
  • Fiberglass inner support: Provides pre-filtration of larger particles.
  • Deep bed multi-wrap Borosilicate glass microfiber: Large flow passages reduce high pressure drop and allow for a high dirt holding capacity. Wrap tension prevents channeled air flow.
  • Fiberglass outer support

21st century filtration:

  • Differential pressure indicator
  • Modular NPT connections: Option to bolt multiple filters together with Hi-Nitrile O-ring connection for ease of installation, leak elimination and reduced space requirement.
  • Heavy aluminum construction: Castings 100% leak-tested, 300 psi / 20 barg pressure and 250°F/120°C temperature ratings.
  • Annular seal and captive O-ring: Between head and bowl with threaded connection to prevent leaks.
  • Internal ribs: Secure element in-place and form quiet air zone to prevent condensate re-entrainment.
  • Large capacity condensate sump: With allowance to install internal float drain.
  • Hex head on bottom: For easy bowl removal.
  • Threaded bottom port: External auto or manual drain.
  • External ribs: For easy bowl removal.

Features and benefits:

Performance monitoring

  • Easy indication of excessive pressure drop to reduce energy costs.

Pop-up DP indicators (standard on THF20/30)

  • Nylon pop-up is compatible with synthetic oils and lubricants.

Delta-P gauge (standard on THF65 and above)

  • DP gauge face is not pressurized.
  • Unique magnetic sensor survives high impact.
  • DP gauge can be remote or panel mounted.

Remote contact DP alarm (optional)

  • Dry contacts close at 6 psid / 400mbar to send a notification signal to a bell, light, or control panel.
  • Can be field installed.

Modular head design

  • Multiple filters can be bolted together with O-ring seal.
  • Minimizes threaded connections – leak points.
  • Simplifies installation.
  • Saves space.
  • Modular mounting kits available with high tensile strength cap screws with nuts and O-ring.

Side port (65-16100 scfm)

  • Side mounting of external auto drain for low clearance applications.
  • Can be used as a separate manual drain or as a vent line connection to an external demand drain mounted to bottom connection.

Bottom drain adapter plate (1000-1500 scfm)

  • Releases drain adapter for ease of float drain maintenance.
  • Easy disconnect of external drain when element is changed.

High Pressure Filters

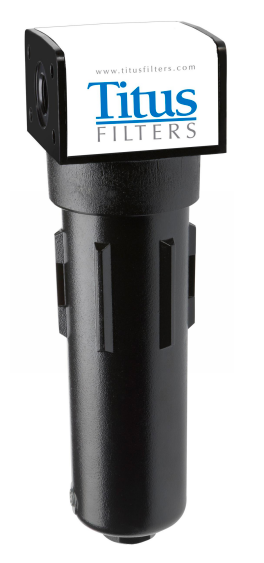

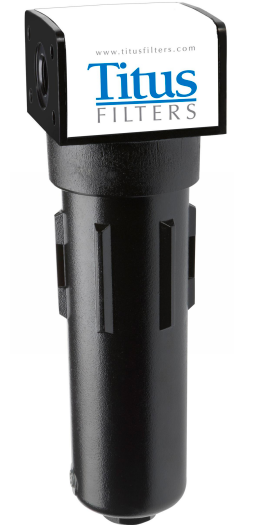

Titus Compressed Air-Line Filters THPF Series

Titus Filters offers a broad range of filtration solutions including the THPF High Pressure Series capable of handling pressures to 725 PSIG, offering connection sizes from ¼” to 3” NPT and flow capacities up to 1880 SCFM. Whatever your high pressure filtration need, Titus has the product to meet it.

Value without Compromise

This unique high pressure series offers excellent value while still delivering exceptional filtration efficiency. Full corrosion protection on all housings is provided through the use of electrophoretic paint on both inside and out followed by a tough, durable, exterior powder coat for maximum protection. All models include the unique Titus Push-Fit filter element design with double O-ring seals for superior leak protection. Custom engineered filter media delivers exceptional filtration with minimal associated pressure drop.

Manufactured and Tested to ISO 12500 Standard

Quality control of these CE marked products includes a hydrostatic test certificate and serial number for complete traceability.

Applications:

  • Agriculture
  • Cement Production
  • Chemical
  • Electronics
  • Food & Beverage
  • Laboratory Sciences
  • Manufacturing
  • Metals
  • Military
  • Nuclear
  • Paper & Pulp
  • Petrochemical
  • Pharmaceutical

High Temperature Filters

Contact us for more information on High Temperature Filters.

Stainless Steel Filters

Contact us for more information on Stainless Steel Filters.

THF Series Technical Specifications

Model NumberFlow Rate SCFMNm3/hDimensions (inches)NPT Connections
In/Out
NPT Connections
Side
NPT Connections
Bottom
Weight (lbs)Replacement Element Model
THF15D15253.00” x 12.00” x 4.00” x 6.00” x 7.00”1/4”N/A1/4” MPT2.0THF15DE***
THF30D30513.00” x 12.00” x 4.00” x 6.00” x 7.00”3/8”N/A1/4” MPT2.0THF30DE***
THF2020343.00” x 7.5” x 4.00” x 1.50”1/4”N/A1/4” MPT1.5THF20 [ * ] E
THF3030513.00” x 7.50” x 4.00” x 1.50”3/8”N/A1/4” MPT1.5THF30 [ * ] E
THF65651104.50” x 10.50” x 6.00” x 1.50” x 1.25”1/2”1/4”1/4” MPT4.5THF65 [ * ] E
THF75751284.50” x 10.50” x 6.00” x 1.50” x 1.25”3/4”1/4”1/4” MPT4.5THF75 [ * ] E
THF1001001704.50” x 14.00” x 6.00” x 1.50” x 1.25”1”1/4”1/4” MPT5.5THF100 [ * ] E
THF1501502554.50” x 14.00” x 6.00” x 1.50” x 1.25”1”1/4”1/4” MPT5.5THF150 [ * ] E
THF2252253825.75” x 19.00” x 6.00” x 2.00” x 1.50”1 1/2”1/2”1/4”12.0THF225 [ * ] E
THF3003005105.75” x 19.00” x 6.00” x 2.00” x 1.50”1 1/2”1/2”1/4”12.0THF300 [ * ] E
THF4504507655.75” x 19.00” x 6.00” x 2.00” x 1.50”2”1/2”1/4”12.0THF450 [ * ] E
THF65065011055.75” x 26.75” x 6.50” x 2.00” x 1.50”2”1/2”1/4”12.5THF650 [ * ] E
THF1000100017009.00” x 27.50” x 7.00” x 2.50” x 1.50”3”1/2”1/2”32.0THF1000 [ * ] E
THF1250125021259.00” x 32.50” x 7.00” x 2.50” x 1.50”3”1/2”1/2”33.5THF1250 [ * ] E
THF1500150025509.00” x 38.50” x 7.00” x 2.50” x 1.50”3”1/2”1/2”33.5THF1500 [ * ] E
THF700700119012.50” x 5.56” x 32.00” x 46.60” x 37.60” 2" flg1/2”1/2”92THF700 [ * ] E (1 ea.)
THF14001400238018.00” x 8.63” x 32.00” x 45.30” x 38.30” 3" flg1/2”1/2”215THF700 [ * ] E (2 ea.)
THF21002100357018.00” x 10.80” x 32.00” x 48.20” x 38.40” 4" flg1/2”1/2”326THF700 [ * ] E (3 ea.)
THF28002800476020.00” x 12.80” x 32.00” x 50.30” x 39.30” 6" flg1/2”1/2”439THF700 [ * ] E (4 ea.)
THF35003500595020.00” x 12.80” x 32.00” x 50.30” x 39.30” 6" flg1/2”1/2”439THF700 [ * ] E (5 ea.)
THF42004200714020.00” x 14.00” x 32.00” x 54.30” x 40.40”6" flg1/2”1"536THF700 [ * ] E (6 ea.)
THF56005600952024.00” x 16.00” x 32.00” x 55.10” x 40.60”8" flg1/2”1"647THF700 [ * ] E (8 ea.)
THF700070001190028.00” x 18.00” x 32.00” x 58.10” x 42.60” 8" flg1/2”1"778THF700 [ * ] E (10 ea.)
THF840084001428028.00” x 18.00” x 32.00” x 58.10” x 42.60” 10" flg1/2”1"778THF700 [ * ] E (12 ea.)
THF980098001666028.00” x 20.00” x 32.00” x 59.40” x 42.80”10" flg1/2”1"936THF700 [ * ] E (14 ea.)
THF11200112001904033.00” x 24.00” x 32.00” x 61.00” x 43.20”10" flg1/2”1"1214THF700 [ * ] E (16 ea.)
THF12600126002142033.00” x 24.00” x 32.00” x 61.00” x 43.20”10" flg1/2”1"1214THF700 [ * ] E (18 ea.)
THF161001610027370CF x CF x 32.00” x CF x CF12" flg1/2”1"CFTHF700 [ * ] E (23 ea.)
