Atlas Copco Pressure Swing Adsorption Nitrogen Generators

NGP+ premium N2 generator with PSA

NGP+ premium nitrogen generators offer the completest scope of nitrogen supply at the highest energy efficiency. Carbon molecular sieves guarantee premium nitrogen at the highest purity levels. Why buy N2 gas when you can generate your own?

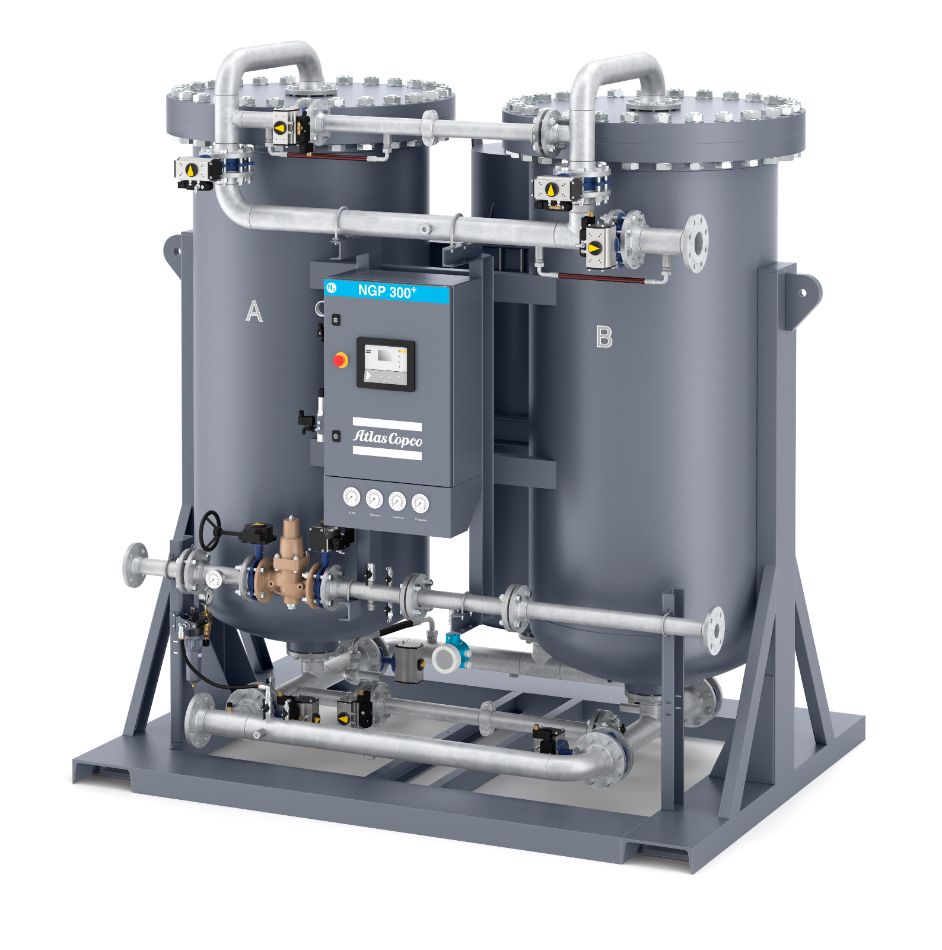

Atlas Copco Pressure Swing Adsorption Nitrogen Generators - NGP Series

The NGP+ is part of our generation of premium N2 generators. The modern nitrogen generator working principle is based on Pressure Swing Absorption technology. The NGP+ offers the completest scope of supply and the highest energy efficiency of all our PSA nitrogen generators. It comes equipped with: – CMS of the highest quality – extensive safety and monitoring features – options to regulate pressure and purity

Protecting your application

By default, our NGP+ comes with an automatic off spec check feature. Nitrogen with a purity that is under the threshold you put in the controller, can never reach your sensitive application.

Protecting your investment

Feed air conditions are continuously monitored. When not matching the generator requirements, the feed air gets blown off before entering the machine, making sure your investment lasts a very long time.

Ready for Industry 4.0

The SMARTLINK integration provides a simple but effective way to increase reliability, decrease downtime and identify energy optimization opportunities.

50% reduced running costs

The NGP+ nitrogen generator reduces up to 50% of the running costs compared to other nitrogen generators. Air factors of 1.8 (at 95%) up to 5.5 (at 99.999%) generate premium N2

Rely on your own N2 supply

NGP+ systems are continuously available. No need to worry about production breakdown due a shortage of N2 supply

Up to 99.999% purity

The NGP+ offers from 95 to 99.999% percent nitrogen purity to meet your quality requirements

Plug-and-play

NGP+ is delivered ready-to-use when a supply of dry compressed air can be connected

NGP Series Technical Specifications

TypeDimensions (W x D x H) - mmDimensions (W x D x H) - inWeight - kgWeight - lbs
NGP 10798 x 840 x 202231.4 x 33.1 x 79.6 244538
NGP 12798 x 840 x 202231.4 x 33.1 x 79.6 257567
NGP 15798 x 840 x 202231.4 x 33.1 x 79.6 270595
NGP 20798 x 840 x 202231.4 x 33.1 x 79.6 306675
NGP 25798 x 840 x 202231.4 x 33.1 x 79.6 339747
NGP 30798 x 840 x 202231.4 x 33.1 x 79.6 360794
NGP 35798 x 840 x 202231.4 x 33.1 x 79.6 5991321
NGP 40798 x 840 x 202231.4 x 33.1 x 79.6 6271382
NGP 50798 x 840 x 202231.4 x 33.1 x 79.6 6631462
NGP 60798 x 840 x 202231.4 x 33.1 x 79.6 7161579
NGP 70798 x 840 x 202231.4 x 33.1 x 79.6 8051775
NGP 85798 x 840 x 202231.4 x 33.1 x 79.6 10182244
NGP 100798 x 840 x 202231.4 x 33.1 x 79.6 11912626
NGP 115798 x 840 x 202231.4 x 33.1 x 79.6 11912626
NGP 4201240 x 2520 x 316048.8 x 99.2 x 124.442009259
NGP 5501420 x 2880 x 333055.9 x 113.4 x 131.1490010803
NGP 9002480 x 2520 x 316097.6 x 99.2 x 124.4840018519
NGP 11002840 x 2880 x 3330111.8 x 113.4 x 131.1980021605
