Atlas Copco Pressure Swing Adsorption Oxygen Generators
OGP Series

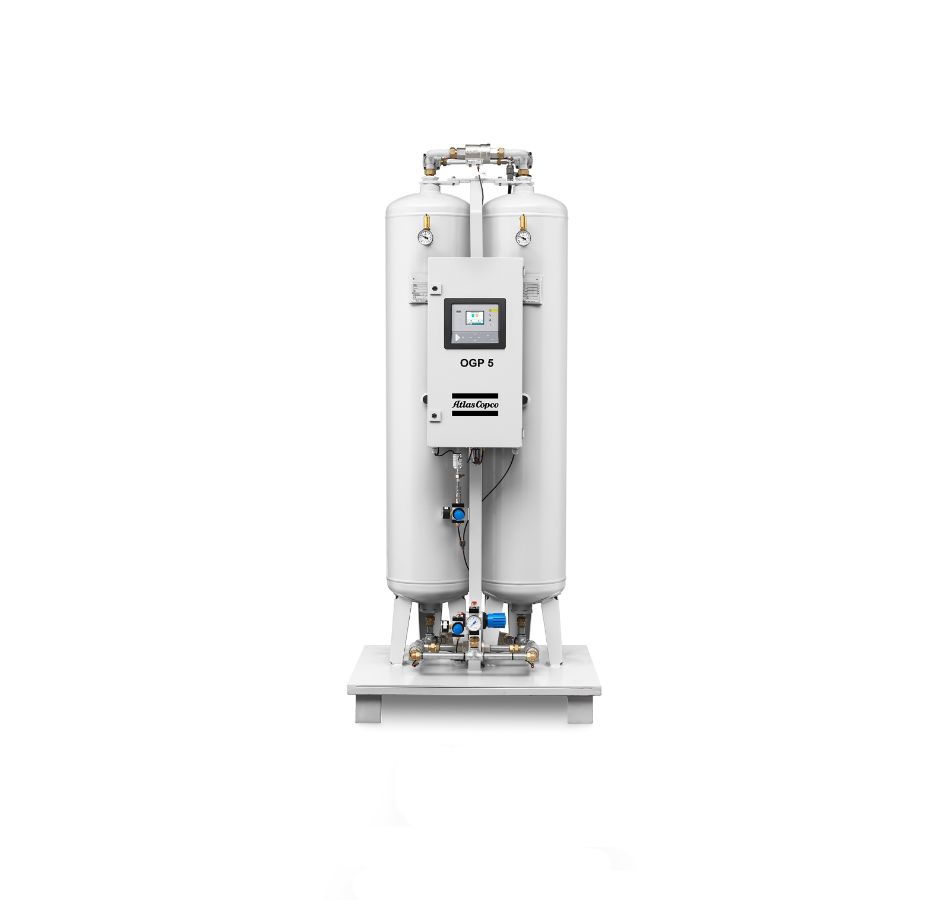

OGP PSA on-site oxygen generator
Why rely on an oxygen supply by a third party when you can generate your own? Our OGP provides a reliable supply of high purity oxygen. The oxygen generator’s working principle is based on Pressure Swing Absorption technology (PSA). Zeolite pellets selectively isolate oxygen molecules in compressed air. The OGP oxygen generator is perfectly suited for applications such as: – ozone production – waste water treatment – health care – glass industry – and many more
Optimal savings
Atlas Copco’s OGP systems come with minimal operating and maintenance expenses. Generating your own oxygen means you avoid processing, refills and delivery costs
On-site versus delivery
Your OGP system is continuously available on-site. Never again risk a production breakdown due to supply shortages
High purity
The OGP offers from 90% to 95% oxygen purity to meet your quality requirements
Plug-and-play
The OGP comes ready-to-use. A supply of dry compressed air must be connected
OGP Series Technical Specifications
| Type | Dimensions (W x D x H) - mm | Dimensions (W x D x H) - in | Weight - kg | Weight - lbs |
|---|---|---|---|---|
| OGP 2 | 600 x 600 x 1550 | 23.6 x 23.6 x 61.0 | 100 | 220 |
| OGP 3 | 600 x 600 x 1600 | 23.6 x 23.6 x 63.0 | 150 | 331 |
| OGP 4 | 600 x 600 x 1650 | 23.6 x 23.6 x 65.0 | 180 | 397 |
| OGP 5 | 700 x 700 x 1900 | 27.6 x 27.6 x 74.8 | 230 | 507 |
| OGP 6 | 800 x 900 x 1750 | 31.5 x 35.4 x 68.9 | 400 | 882 |
| OGP 8 | 800 x 900 x 1750 | 31.5 x 35.4 x 68.9 | 700 | 1543 |
| OGP 10 | 900 x 1200 x 2100 | 35.4 x 47.2 x 82.7 | 950 | 2094 |
| OGP 14 | 900 x 1200 x 2100 | 35.4 x 47.2 x 82.7 | 950 | 2094 |
| OGP 18 | 900 x 1300 x 2400 | 35.4 x 51.1 x 94.5 | 1150 | 2535 |
| OGP 20 | 1000 x 1300 x 2400 | 35.4 x 51.1 x 94.5 | 1150 | 2535 |
| OGP 23 | 1000 x 1300 x 3200 | 39.4 x 51.1 x 126.0 | 1350 | 1976 |
| OGP 29 | 1000 x 2000 x 2500 | 39.4 x 78.7 x 98.4 | 1850 | 4079 |
| OGP 35 | 1000 x 2000 x 2500 | 39.4 x 78.7 x 98.4 | 2150 | 4740 |
| OGP 45 | 1000 x 2000 x 3400 | 39.4 x 78.7 x 134.0 | 3500 | 7716 |
| OGP 55 | 1000 x 2000 x 3400 | 39.4 x 78.7 x 134.0 | 3500 | 7716 |
| OGP 65 | 1000 x 2000 x 3400 | 39.4 x 78.7 x 134.0 | 3500 | 7716 |
| OGP 84 | 2400 x 2200 x 3200 | 0 94.5 x 86.6 x 126.0 | 4200 | 9259 |
| OGP 105 | 2400 x 2400 x 3300 | 94.5 x 94.5 x 130.0 | 4900 | 10803 |
| OGP 160 | 4000 x 4000 x 3200 | 157.5 x 157.5 x 126.0 | 8000 | 17637 |
| OGP 200 | 4000 x 4000 x 3300 | 157.5 x 157.5 x 130.0 | 9400 | 20723 |
