Titus Membrane Nitrogen Generators

TN2 Series

Titus Membrane Nitrogen Generators - TN2 Series

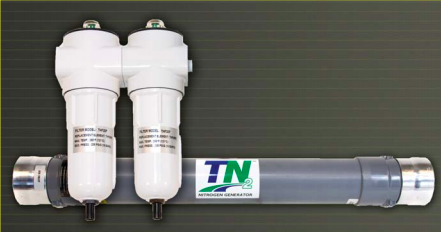

The TN2 Series of Nitrogen Generators from Titus Nitrogen provides you with the lowest cost of ownership through engineered solutions that precisely match your nitrogen needs. We analyze your specific situation and provide a solution based on your flow, purity and budget parameters.

Based on your nitrogen generation needs and internal capabilities, we can provide solutions ranging from field-assembled, component-only packages to fully-assembled, custom engineered units and complete, compressor-nitrogen generator systems. This gives our customers total flexibility in meeting their nitrogen generation needs. The TN2 Series includes:

TN2 Basic Series

For those with the appropriate internal mechanical capabilities, we offer the option of a package made up of a dual filter system and membrane module shipped separately for field installation. Simply connect them and incorporate them into your system as desired.

TN2 Basic provides you with the most cost-effective method of generating nitrogen. TN2 Basic is also available as a complete, pre-assembled system on a wall-mount bracket or within a fully enclosed cabinet.

TN2 Essentials Series

The TN2 Essentials package includes membrane module(s) with filters, and a purity control system shipped separately for increased economy. All components can be configured by the user to match site requirements. Ideal for installations where access is restricted, space is limited, or for applications where a hazardous or explosive environment may exist.

The purity control system included with the Essentials model ensures delivery of proper purity at all times and eliminates the possibility of overflow condition.

The Essentials package can be customized by ordering the components preassembled on a wall-mount bracket, within a rugged sheet-metal cabinet or installed on a readily portable heavy-duty cart.

TN2 Total Series

The most common nitrogen production solution includes filtration, temperature, pressure and purity control packages along with membrane module(s) in a spacesaving wall or floor mounted enclosure, allowing convenient access to serviceable components. Compressed air hook-up, electric service, vent gas, and nitrogen gas outlet are connection points provided. Field expandable units are available for most models.

A variety of options are available including:

  • Premium Electrical Package (PEP) that includes a PLC-Driven control system equipped with oxygen, pressure and temperature monitoring. Package also includes Auto Delivery system which automatically provides nitrogen to downstream processes when desired purity is reached.
  • Auto Bypass which ties into the PEP and allows for automatic switchover to a back-up source of nitrogen based on high oxygen or low pressure alarms.
  • Nitrogen Flow Meter can be included as a stand-alone feature (or tied into PEP) for remote monitoring and alarm should an out-of-tolerance condition occur.
  • Hydrocarbon Removal System that removes oil vapor to provide odor and tastefree supply for lab, medical and food processing & packaging requirements.
  • Dry Nitrogen Storage Tanks to meet short-term, high demand events.

TN2 GenPak Series

For applications where a reliable source of compressed air is not available, Titus’ GenPak is the ideal solution. The package includes a high quality air compressor, wet air receiver and nitrogen generator that provides a precisely matched supply of high quality nitrogen to downstream processes.

The TN2 GenPak can be provided in one of three main configurations:

  1. Separate elements for field assembly and installation
  2. Skid mounted in a pre-wired, pre-assembled turn-key configuration
  3. Constructed in a heated, ventilated, weather-proof unit for outdoor locations All TN2 Total options are available for the TN2 GenPak.

The TN2 Advantages

Proven Performance = Bottom Line Savings

  • Produces N2 only as needed
  • Adjustable purity up to 99.9%
  • Eliminates bottle/dewar handling
  • Simple, reliable operation
  • Few moving parts
  • Little to wear out or replace
  • Proven technology
  • Reduced operating costs

The TN2 Series is Designed to Meet a Broad Range of Industry Needs

The TN2 Series revolutionizes on-site nitrogen production by breaking the mold on one-size-fits-all solutions. Recognizing that the need for nitrogen production encompasses a wide variety of applications in dozens of industries, TN2 is engineered for flow rates from 0.5 to 5000 SCFH and is designed for easy operation and low maintenance. TN2 is especially suited for harsh environments like wash-down areas, explosive and hazmat situations and severe weather conditions. Talk to us about your specific needs. We have solutions available to meet your nitrogen requirements in a cost-effective and efficient manner.

Applications:

  • Laboratory Sciences
    • Carrier Gas
    • Make-up Gas
    • Instrument Gas
    • Glove Boxes
    • Fume Cupboards
    • Metallurgical Carburizing
  • Food Packaging & Food Processing
    • Food Preservation
    • Controlled Atmospheric
    • Storage
    • Food Storage
    • Ingredient Mixing
    • Blanketing
    • Gas Knifing
    • Wine Dispensing
    • Beer Dispensing
  • Chemical Processing
    • Chemical Blanketing
    • Chemical Purging
    • Dry Material Transfer
    • Gas Chromatography
    • Gas Spectroscopy
  • Pharmaceutical Processing
    • Blanketing
    • Powder Transport
    • Ingredient Stabilization
  • Industrial Processes
    • Annealing
    • Hardening
    • Autoclaving
    • Sparging
    • Mixing
    • Plasma Cutting
    • Laser Cutting
  • Electronics Manufacturing
    • Chamber Stabilization
    • Positioning Gas
    • Soldering
    • Circuit Imprinting

TNX Expandable Series

Titus Membrane Nitrogen Generators - TNX Series

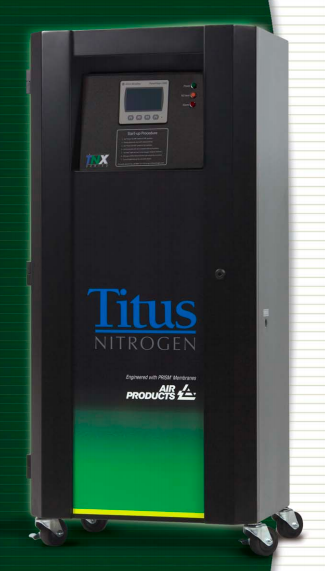

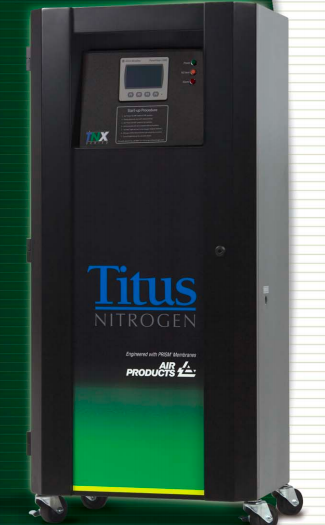

The new TNX Series of on-site Nitrogen Generators from Titus Nitrogen offers a revolutionary solution to the problem of meeting future nitrogen capacity needs without having to make excessively large up-front capital equipment expenditures.

Typically, businesses are squeezed between today’s budgetary concerns and future growth needs. A system purchased to meet today’s requirements may have to be scrapped for a larger system next year. An over-sized system to meet next year’s production requirements not only adversely impacts the current budget, but it results in excessive operation and maintenance costs in the interim. In either scenario, significant time and money may be wasted.

The expandable TNX, on the other hand, gives businesses the flexibility to buy the capacity they need today and easily increase that capacity (up to a factor of 4 from base models) as their nitrogen needs grow. The TNX Series gives companies the ability to make high quality nitrogen from virtually any compressed air source, making it the economical choice compared to transporting, storing and handling nitrogen cylinders and dewars. Because companies purchase the TNX Series sized for current needs, they can benefit from the lowest cost of ownership now, and only make the additional investment in capacity when it is needed in the future. That’s smart engineering. That’s TNX.

TNX Options Can Address Various Needs…

Budget-Conscious? TNX comes standard with a cost effective yet informative monitoring package that provides the key control and operating parameters to ensure optimum performance.

Hazardous or Remote Areas? In environments where electricity is unavailable or where a spark hazard may exist, TNX is available in an intrinsically-safe, non-electric design.

No Compressed Air? For many applications a source of compressed air may not be available. TNX can be provided with either an onboard compressor for small applications, or with a larger scale, complete turn-key package for large nitrogen consumers.

Applications:

  • Laboratory Sciences
    • Carrier Gas
    • Make-up Gas
    • Instrument Gas
    • Glove Boxes
    • Fume Cupboards
    • Metallurgical Carburizing
  • Food Packaging & Food Processing
    • Food Preservation
    • Controlled Atmospheric
    • Storage
    • Food Storage
    • Ingredient Mixing
    • Blanketing
    • Gas Knifing
    • Wine Dispensing
    • Beer Dispensing
  • Chemical Processing
    • Chemical Blanketing
    • Chemical Purging
    • Dry Material Transfer
    • Gas Chromatography
    • Gas Spectroscopy
  • Pharmaceutical Processing
    • Blanketing
    • Powder Transport
    • Ingredient Stabilization
  • Industrial Processes
    • Annealing
    • Hardening
    • Autoclaving
    • Sparging
    • Mixing
    • Plasma Cutting
    • Laser Cutting
  • Electronics Manufacturing
    • Chamber Stabilization
    • Positioning Gas
    • Soldering
    • Circuit Imprinting

The New TNX Series Provides the Perfect Combination of Innovation and Practicality

At the heart of TNX is the proven and reliable PRISM® Membrane technology from Air Products and Chemicals, Inc. Proudly made in America, the TNX Series has been designed with features that provide the perfect combination of innovation and practicality. In addition, TNX offers a range of optional equipment to better match customer requirements, including:

  • Premium Electrical Package (PEP) – This robust package provides the optimum level of control, monitoring and alarm capability to protect downstream processes from off-spec nitrogen.
  • Auto Bypass System – (Available on any unit equipped with PEP) Allows for the automatic or manual switchover to a back-up source of nitrogen (customer supplied). If an off-spec condition, compressed air system failure, or routine maintenance requirement should occur, downstream processes can be kept on-line at all times through the auxiliary nitrogen source.
  • Digital Nitrogen Flow Monitor – Available on any system, provides a continuous digital readout of the nitrogen flow and an output signal for remote monitoring. When integrated with the PEP, local and remote alarm capability is also included.
  • Nitrogen Storage Tank – For applications when intermittent demand events may occur, a nitrogen storage tank can provide a cost effective means of protecting the nitrogen generator from an over-flow condition and downstream processes from off-spec nitrogen. This is sized by application, as customer needs may vary widely.
  • Hydrocarbon Removal Packages – For applications where even small concentrations of hydrocarbon vapor may be damaging to downstream equipment or processes, these packages provide optimal protection. As with nitrogen storage, the requirement for hydrocarbon removal may vary widely so these packages are available in a range of sizes and configurations to precisely meet customer needs.

TN2 Series Technical Specifications

Series#Atmospheric Dew PointOperating -Pressure MinimumOperating Pressure - MaximumInlet Air Temperature - MinimumInlet Air Temperature - MaximumMaximum Inlet Air Dew PointElectrical Requirements - PowerKwConnections - InConnections - OutDimensions - H x W X D - InchesShipping Weight - lbs.
TN2 Basic / Essential SeriesTN2 0800To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A3/8" NPT1/4" NPT32 X 10 X 415
TN2 Basic / Essential SeriesTN2 0900To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A3/8" NPT1/4" NPT24 X 12 X 618
TN2 Basic / Essential SeriesTN2 1000To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A3/8" NPT1/4" NPT32 X 12 X 620
TN2 Basic / Essential SeriesTN2 1100To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A3/8" NPT1/4" NPT42 X 12 X 622
TN2 Basic / Essential SeriesTN2 1200To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A3/8" NPT1/4" NPT44 X 16 X 830
TN2 Basic / Essential SeriesTN2 1300To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A3/8" NPT1/4" NPT66 X 16 X 835
TN2 Basic / Essential SeriesTN2 1400To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A3/8" NPT3/8" NPT44 X 20 X 840
TN2 Basic / Essential SeriesTN2 1500To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A3/4" NPT3/8" NPT66 X 24 X 860
TN2 Basic / Essential SeriesTN2 1600To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A3/4" NPT3/4" NPT72 X 30 X 1275
TN2 Basic / Essential SeriesTN2 1700To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A1" NPT3/4" NPT66 X 32 X 8110
TN2 Basic / Essential SeriesTN2 1800To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A1" NPT3/4" NPT66 X 40 X 8135
TN2 Basic / Essential SeriesTN2 1900To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A1" NPT3/4" NPT72 X 42 X 12160
TN2 Basic / Essential SeriesTN2 2000To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A1" NPT3/4" NPT66 X 60 X 8180
TN2 Basic / Essential SeriesTN2 2100To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A1" NPT3/4" NPT72 X 54 X 12225
TN2 Basic / Essential SeriesTN2 2200To -90°F
Typical
60 PSIG150 PSIG60°F130°F60°FN/AN/A1" NPT3/4" NPT72 X 66 X 12300
TN2 Total SeriesTN2T0800To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/600.503/8" NPT3/8" NPT30 X 16 X 8105
TN2 Total SeriesTN2T0900To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/600.503/8" NPT3/8" NPT24 X 16 X 890
TN2 Total SeriesTN2T1000To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/600.503/8" NPT3/8" NPT36 X 24 X 8125
TN2 Total SeriesTN2T1100To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/600.503/8" NPT3/8" NPT48 X 24 X 8150
TN2 Total SeriesTN2T1200To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/600.503/8" NPT3/8" NPT48 X 24 X 8175
TN2 Total SeriesTN2T1300To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/600.503/8" NPT3/8" NPT78 X 30 X 12365
TN2 Total SeriesTN2T1400To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/600.503/8" NPT3/8" NPT48 X 30 X 10285
TN2 Total SeriesTN2T1500To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.003/4" NPT3/8" NPT78 X 30 X 12500
TN2 Total SeriesTN2T1600To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.003/4" NPT1/2" NPT78 X 36 X 12575
TN2 Total SeriesTN2T1700To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.501" NPT1/2" NPT78 X 36 X 16600
TN2 Total SeriesTN2T1800To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.501" NPT3/4" NPT78 X 36 X 16650
TN2 Total SeriesTN2T1900To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F480/3/603.001" NPT3/4" NPT78 X 36 X 16675
TN2 Total SeriesTN2T2000To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F480/3/603.001 1/2" NPT1" NPT78 X 36 X 16700
TN2 Total SeriesTN2T2100To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F480/3/603.001 1/2" NPT1" NPT84 X 60 X 241250
TN2 Total SeriesTN2T2200To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F480/3/604.502" NPT1 1/2" NPT84 X 72 X 241500
TN2 Total SeriesTN2T2300To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F480/3/604.502" NPT1 1/2" NPT84 X 72 X 241550
TN2 Total SeriesTN2T2400To -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F480/3/604.502" NPT1 1/2" NPT84 X 72 X 241600



Product Catalogs & Spec Sheet Downloads

TNX Series Technical Specifications

Series#Atmospheric Dew PointOperating -Pressure MinimumOperating Pressure - MaximumInlet Air Temperature - MinimumInlet Air Temperature - MaximumMaximum Inlet Air Dew PointElectrical Requirements - PowerElectrical Requirements - AmpsElectrical Requirements - KwConnections - InConnections - OutDimensions - H x W X D - InchesShipping Weight - lbs.
TNX Non-HeatedTNX1010BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 17-1/4210
TNX Non-HeatedTNX1020BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 17-1/4215
TNX Non-HeatedTNX1030BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 25-1/4260
TNX Non-HeatedTNX1040BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 25-1/4270
TNX Non-HeatedTNX1110BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 17-1/4210
TNX Non-HeatedTNX1120BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 17-1/4200
TNX Non-HeatedTNX1130BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 25-1/4270
TNX Non-HeatedTNX1140BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 25-1/4280
TNX Non-HeatedTNX1210BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 17-1/4215
TNX Non-HeatedTNX1220BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 17-1/4230
TNX Non-HeatedTNX1230BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 25-1/4285
TNX Non-HeatedTNX1240BNTo -90°F
Typical
70 PSIG150 PSIG70°F130°F60°FN/AN/AN/A3/4" NPT1/2" NPT52 X 24 X 25-1/4300
TNX HeatedTNX1010CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/600.700.103/4" NPT1/2" NPT52 X 24 X 17-1/4230
TNX HeatedTNX1020CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.101.103/4" NPT1/2" NPT52 X 24 X 17-1/4235
TNX HeatedTNX1030CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.500.203/4" NPT1/2" NPT52 X 24 X 25-1/4280
TNX HeatedTNX1040CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.800.203/4" NPT1/2" NPT52 X 24 X 25-1/4290
TNX HeatedTNX1110CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/600.900.103/4" NPT1/2" NPT52 X 24 X 17-1/4230
TNX HeatedTNX1120CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.300.103/4" NPT1/2" NPT52 X 24 X 17-1/4240
TNX HeatedTNX1130CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.800.203/4" NPT1/2" NPT52 X 24 X 25-1/4290
TNX HeatedTNX1140CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/602.200.203/4" NPT1/2" NPT52 X 24 X 25-1/4300
TNX HeatedTNX1210CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/601.200.103/4" NPT1/2" NPT52 X 24 X 17-1/4235
TNX HeatedTNX1220CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/602.100.203/4" NPT1/2" NPT52 X 24 X 17-1/4250
TNX HeatedTNX1230CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/602.900.303/4" NPT1/2" NPT52 X 24 X 25-1/4305
TNX HeatedTNX1240CHTo -90°F
Typical
70 PSIG150 PSIG70°F120°F120°F115/1/603.700.403/4" NPT1/2" NPT52 X 24 X 25-1/4320



Product Catalogs & Spec Sheet Downloads

Manufacturer Link
