General Air Products/Ebara Pumps

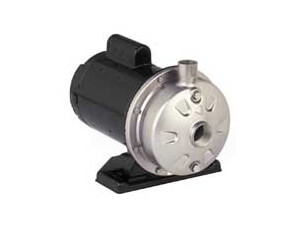

CDU Series End Suction Centrifugal Pumps

General Air Products : Ebara CDU Series End Suction Centrifugal Pumps

The model CDU end suction centrifugal pump are constructed of bulge formed stainless steel and designed for corrosion resistance, dependable performance, and rugged continuous duty. The model CDU is suitable for many general water applications that require corrosion resistance including moderately aggressive liquids.

Features

  • Close coupled design – saves space; simplifies maintenance and installation
  • Stainless steel liquid end components – high quality; corrosion resistance
  • Versatile mounting – can be installed horizontally or vertically
  • Back pullout construction – assembly and overhaul of the impeller and seal without distorting suction and discharge connections
  • Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
  • High operating efficiency – lowers operating costs
  • High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation.

Applications

  • Water Reclamation and Treatment
  • Irrigation
  • Plant Services
  • Liquid Transfer
  • Water Supply Systems
  • Ultrapure Water Systems
  • Air Conditioning Systems

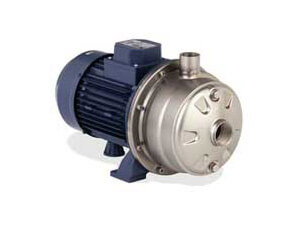

2CDU Series 2-Stage End Suction Centrifugal Pumps

General Air Products : Ebara 2CDU Series 2-Stage End Suction Centrifugal Pumps

The model 2CDU two stage impeller end suction pumps are constructed of bulge formed stainless steel and designed for corrosion resistance, dependable performance, and rugged continuous duty. Models 2CDXU, 2CDU are suitable for pressure boosting applications including water supply, water treatment, irrigation, and air conditioning systems and general water pumping containing moderately aggressive liquids.

Features

  • Close coupled design – saves space; simplifies maintenance and installation
  • Stainless steel liquid end components – high quality; corrosion resistance
  • Versatile mounting – can be installed vertically or horizontally
  • Back pullout construction – assembly and overhaul of the impeller and seal without distorting suction and discharge connections
  • Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
  • High operating efficiency – lowers operating costs
  • High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation.
  • Available with Standard NEMA motor

Applications

  • Water Reclamation and Treatment
  • Reverse Osmosis
  • Plant Services
  • Liquid Transfer
  • Water Supply Systems
  • Ultrapure Water Systems
  • Air Conditioning Systems

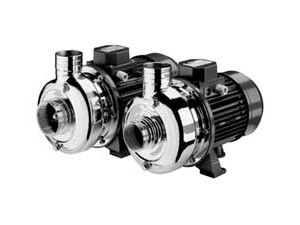

DWO Series Open Impeller End Suction Centrifugal Pumps

General Air Products : Ebara DWO Series Open Impeller End Suction Centrifugal Pumps

The model DWO open impeller end suction pumps are constructed of bulge formed stainless steel and designed for corrosion resistance, dependable performance, and rugged continuous duty. The model DWO is suitable for applications with suspended solids including food and beverage processes, dirty liquid handling, and industrial washing machines that may contain solids.

Features

  • Open impeller – suitable for suspended solids in liquid and dirty water; solids handling to 3/4″ (spherical)
  • Close coupled design – saves space; simplifies maintenance and installation
  • Stainless steel liquid end components – high quality; corrosion resistance; NPT threaded connections, hose barb connections
  • Back pullout construction – assembly and overhaul of the impeller and seal without distorting suction and discharge connections
  • Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
  • High operating efficiency – lowers operating costs
  • High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation.
  • TEFC motors

Applications

  • Food Process
  • Dirty Liquid Handling
  • Plant Services
  • Beverage Process
  • Water Reclamation & Treatment

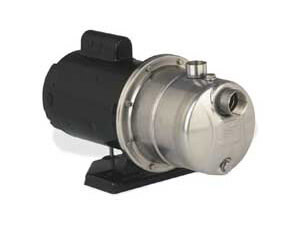

JEU Series Self-Priming Jet Pumps

General Air Products : Ebara JEU Series Self-Priming Jet Pumps

The model JEU self-priming jet pumps are constructed of bulge formed stainless steel and designed for corrosion resistance, dependable performance, and rugged continuous duty. The model JEU jet pump is suitable for many general clean water applications that require corrosion resistance including water supply, pressure boosting, small irrigation systems, and pool/tank emptying.

Features

  • Close coupled design – saves space; simplifies maintenance and installation
  • Stainless steel and Noryl liquid end components – high quality; corrosion resistance
  • Versatile mounting – can be installed horizontally or vertically
  • Back pullout construction – assembly and overhaul of the impeller and seal without distorting suction and discharge connections
  • Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
  • High operating efficiency – lowers operating costs
  • High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation.

Applications

  • Pressure Boosting
  • Water Supply Systems
  • Plant Services
  • Ultrapure Water Systems
  • Water Reclamation & Treatment
  • Aqueous Cleaning

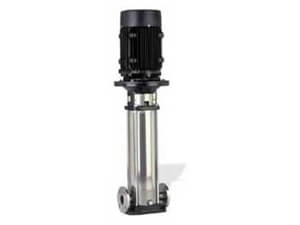

EVMU Series Vertical Multistage Pumps

General Air Products : Ebara EVMU Series Vertical Multistage Pumps

With initial hydraulic coverage to 100 GPM and 800 feet TDH, the EBARA Model EVMU is designed for booster, water purification, and hot water applications.

State-of-the-art formed stainless steel and several proprietary internal components make the EBARA Model EVMU superior to existing designs. The EVMU material is between 50 to 100% thicker than all current similar product offerings, for a true industrial design with cast stainless steel flanges for maximum installation support.

Features

  • Standard NEMA motors
  • Integral thrust bearing on 3 HP and larger pumps – to handle axial thrust loads
  • Air vent in casing cover – allows proper venting, preventing air entrapment and dry run
  • Liner ring – self-aligning, floating design constructed to prevent swelling at high temperatures
  • Tungsten carbide lower pump bearings and sleeves – standard construction for all services, providing maximum operating life
  • Direct drive – pump and motor shafts are keyed for positive, reliable power transmission with no adjustments necessary
  • “Flexible” floating outer casing – allows for thermal expansion in hot water applications, preventing deformation due to pressure fluctuations
  • Anti-erosion measures – a dish-shaped insert is fitted to the intermediate casing designed to promote smooth flow and prevent high velocity areas

Applications

  • Boiler Feed
  • HVAC
  • Filtration
  • Reverse Osmosis
  • Washing Systems
  • Irrigation
  • Pressure / Water Boosting
  • Fire Fighting
  • Hot / Cold Water Circulation

General Air Products/Ebara Pump Technical Specifications

SeriesSuction SizeDischarge SizeRange of HPCapacityHeadLiquid
CDU1 1/4" to 1 1/2"1"up to 3 HPup to 95 GPMup to 245 feetClean Water
2CDU1 1/4" to 1 1/2"1"3/4 to 5 HPup to 65 GPMup to 245 feetClean Water
DWO2" to 2 1/2"2"1.5 to 4 HPup to 250 GPM35 to 65 feetSuitable for suspended solids in dirty water to 3/4" (spherical)
JEU1 1/4"1"up to 1 1/2 HPup to 18.5 GPMup to 190 feetClean Water
EVMU1 1/4" to 4"1 1/4" to 4"up to 50 HPup to 390 GPMup to 930 feetClean Water
