How to Identify Leaks in Your Vacuum System

If you’ve noticed a drop in pressure or efficiency from your vacuum system, it might have a leak. Catching a leak can be challenging at first — they often start small and are difficult to spot without the right tools.

More obvious leaks will have audible noise that can help you spot the leak, but you might have a smaller, trickier leak on your hands. These tiny leaks won’t be noticeable at first, and even once you think you have one, they can be tough to find on your own.

It’s essential to catch leaks as early as possible — the longer they go unaddressed, the more inefficient your system becomes and the more extensive the damage can get. If you’re dealing with a leak in your vacuum system, we’ll help you learn how to find a vacuum leak and fix it so you can get back up and running at your most efficient once again.

In This Article

What Causes Vacuum Pump Leaks?

Vacuum pump leaks can occur due to a variety of factors. Finding the source of the leak can be difficult, especially if there are no apparent signs. Some leaks are too small to see with the naked eye but will still significantly impact efficiency and function. The causes of your vacuum leak could be:

  • Physical holes in the system materials.
  • Excessive operating temperatures.
  • Gasket or seal material degradation.
  • Vacuum hose disconnection.
  • Inadequate seal lubrication.

Leaks can spring up for several reasons — if you’re noticing operating issues, check for leaks and ensure everything is working as it should.

Signs of Vacuum Pump Leaks

While a vacuum leak might go unnoticed initially, you’ll soon begin to see problems with your system. These issues might seem insignificant at first, but they can rapidly start to impact your system, degrading other components and affecting output.

Some potential signs you have a vacuum leak are:

  • Oil from the exhaust port running down the pump.
  • Rumbling sounds coming from the pump.
  • Repeated failure to reach maximum pressure for tasks.
  • Mist or smoke coming from the exhaust section of the pump.

It’s essential to learn to recognize the symptoms of a vacuum leak so you can catch them before they cause significant problems. If you notice any of the above signs, you should run a test for vacuum leaks.

How to Test a Vacuum Pump for Leaks

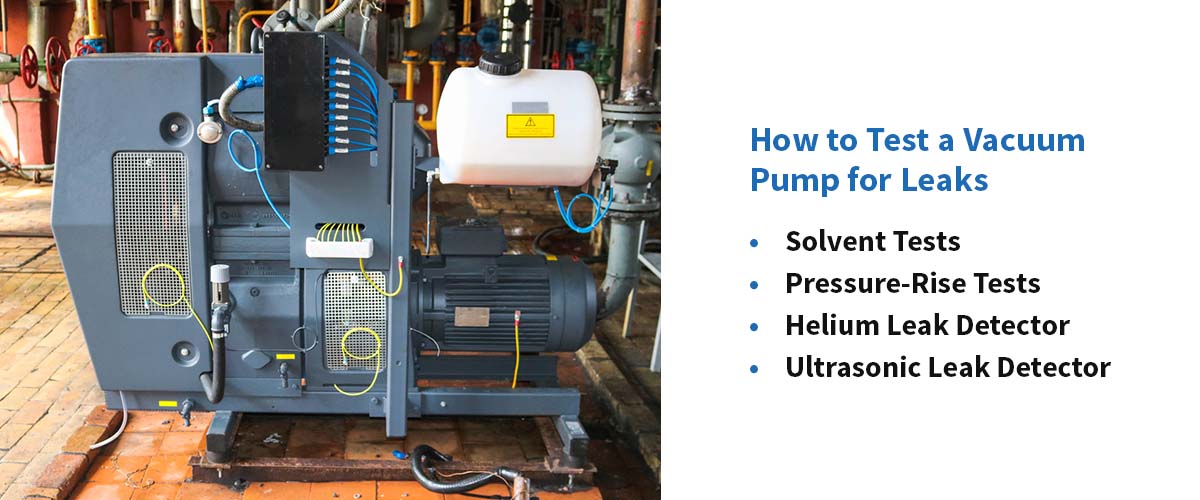

How to Test a Vacuum Pump for Leaks

Testing for leaks is essential to getting any vacuum pump issues fixed. There are several tests you can perform to locate the leak. Once the leak is found, you can begin fixing the problem, restoring your vacuum pump’s efficiency. Here are a few vacuum leak detection methods to help you locate leaks:

Solvent Tests

Leaks in rough vacuum pumps typically respond well to solvent tests. For a solvent test, alcohol or acetone is sprayed on the vacuum component, which causes a change to register on the vacuum gauge. The change will inform you of whether there’s a leak present.

Pressure-Rise Tests

A pressure-rise test is a standard testing method for medium to fine vacuum pumps. A pressure-rise test tracks the rate of pressure rises in the vessels over a specific amount of time. While this test will tell you if you have a leak, it won’t tell you where it is. Once you know there’s a leak, you’ll need to conduct further tests to discover the source.

Helium Leak Detector

This is an excellent method for detecting fine leaks. A sniffer is placed near the vacuum pump inlet to conduct this test. After placing the sniffer, helium is sprayed around any point where you suspect a leak might be in the piping or system. The sniffer will detect any increases in helium concentration from the pump’s airstream.

If there’s a leak anywhere near the helium spray, the helium will be sucked into the pump, and the sniffer will detect it. The alarm will sound, and you’ll know where the leak is. While helium leak detectors are ideal for pinpointing small leaks, they’re more challenging to maintain and expensive to purchase than other testing methods.

Ultrasonic Leak Detector

Ultrasonic leak detectors are another method of fine leak detection. Small leaks give off high-frequency sounds that humans have trouble hearing without assistance. An ultrasonic leak detector takes these high-frequency sounds and turns them into more manageable sounds. This way, you can pinpoint the leak using the sound it’s emitting.

One of the potential challenges with ultrasonic leak detectors is background noise. Various background noises in an industrial setting can make it difficult to pinpoint the leak’s sound. Background noise might cover up the leak’s sounds and prevent you from finding it. The unique design of the ultrasonic leak detector makes it applicable for vacuum pump leaks and leaks in compressed air systems and piping. It’s a multi-use tool that can help you quickly and easily uncover a leak.

How to Prevent Vacuum Pump Leaks

Vacuum pump leaks are unavoidable long term — anything that sees frequent use in an industrial setting will need repair eventually. However, you can help prevent leaks with regular maintenance. Preventative maintenance from a reliable specialist can increase your system’s life span and efficiency, so you deal with fewer repairs. You’ll want to schedule regular checkups to ensure your pump’s oil isn’t low and you don’t have any leaks.

Additionally, get any existing problems repaired as soon as possible. Small leaks and minor issues can impact efficiency and strain other components. The harder your system has to work, the more energy it uses, the less effectively it operates and the faster it’ll wear out. Schedule professional repairs to save money and time in the long run.
